Edge Guides: The t-slot table edge guides need to be adjusted to the thickness of material that you are
engraving. If they are not adjusted properly, the machine may not engrave characters completely.

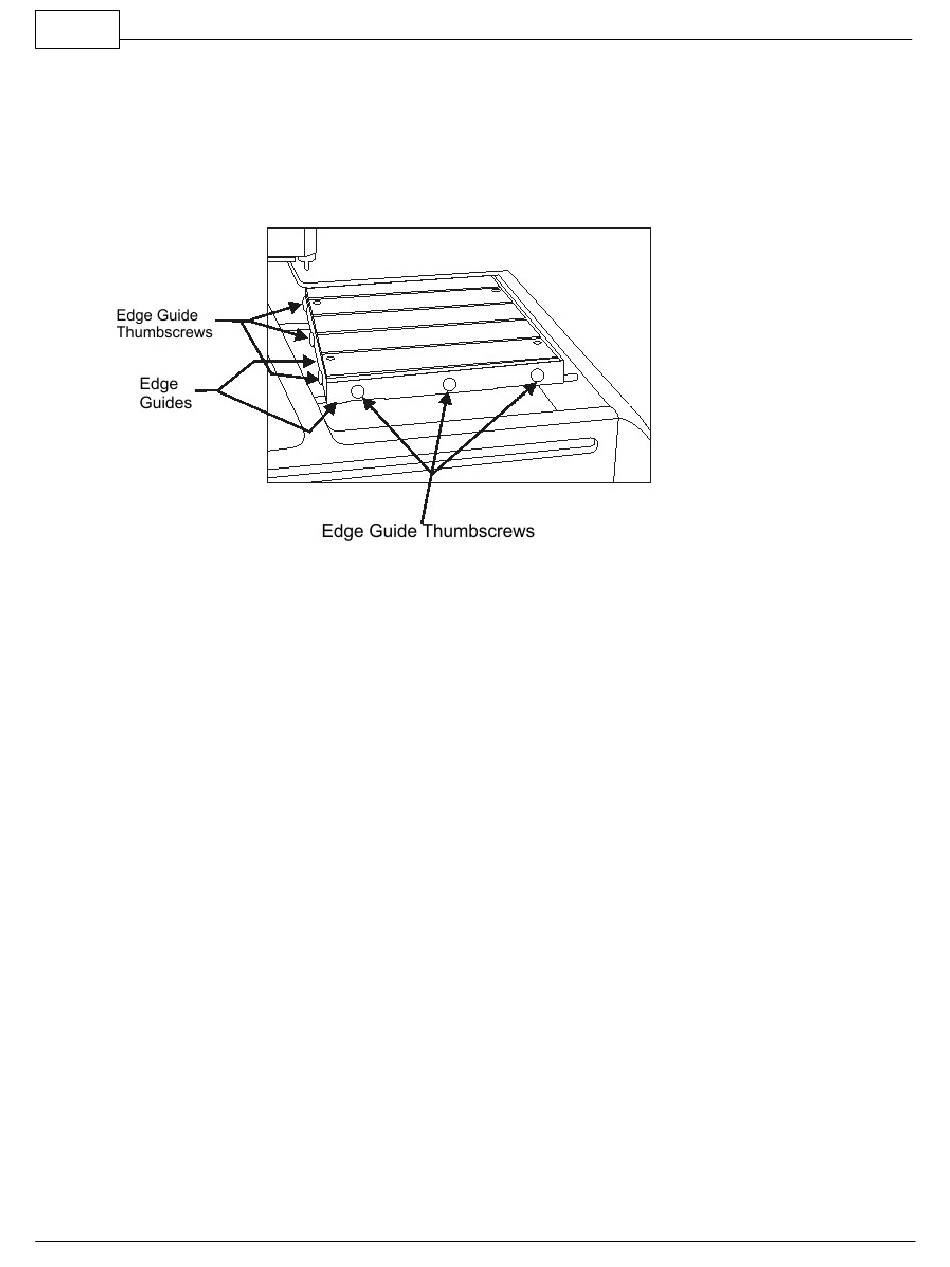

Edge Guides (Side View)
To adjust the edge guides, loosen the edge guide thumbscrews and raise the edge guides to their top
position, then lightly tighten the thumbscrews. Slide the material you would like to engrave up against
the top and left sides of the t-slot table - the edge guides will stop the material. Loosen the edge guide
thumbscrews and lower the edge guides until they are even with the material surface, or just below the
material surface. Tighten the edge guide thumbscrews. This process should be repeated anytime
materials of different thicknesses are to be engraved. On thicker materials, more than 0.10 inch (2.5
mm), the edge guides can remain in their uppermost position.
