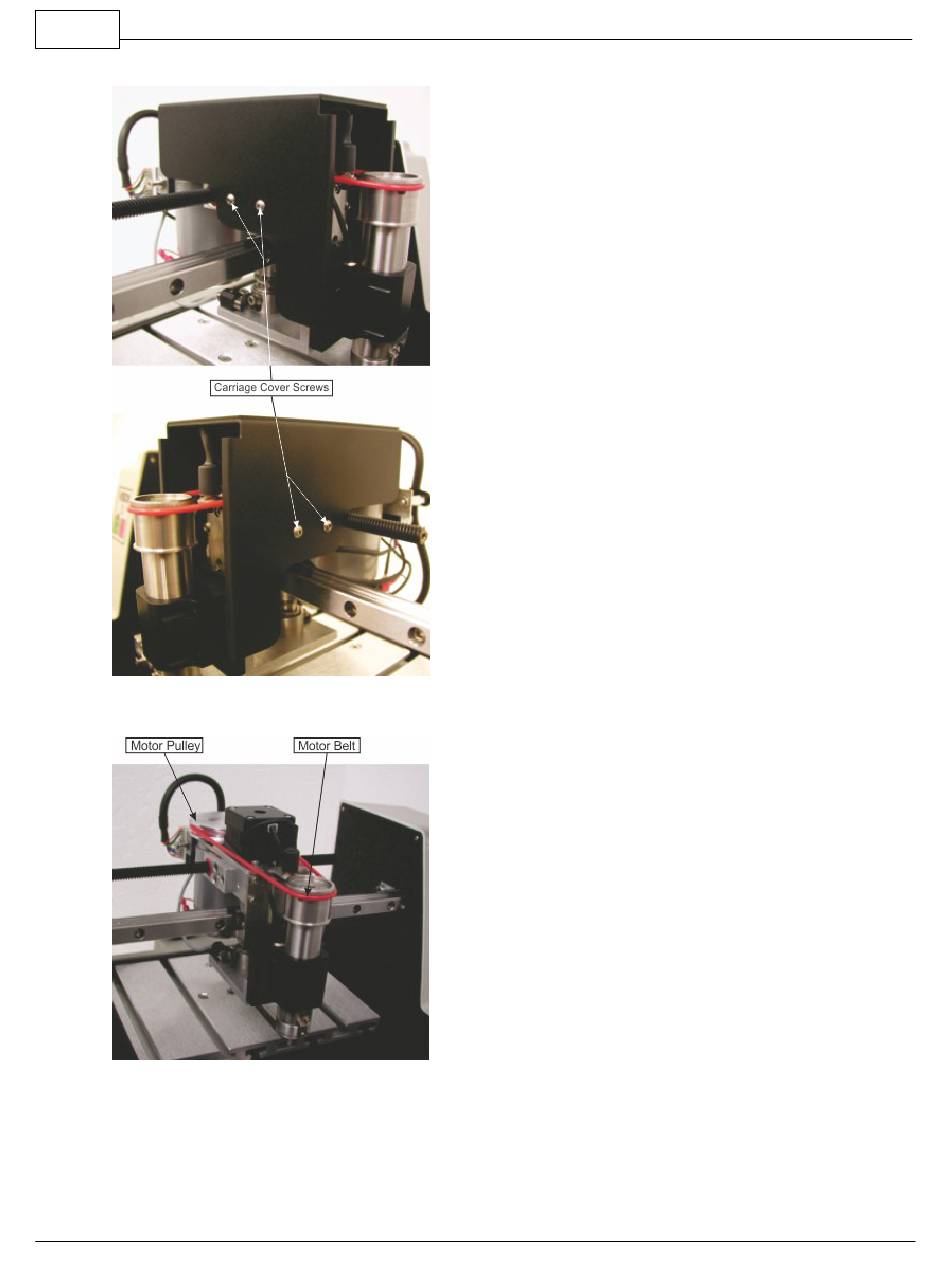

To remove the motor belt, roll the front edge of the belt up and over the top of the spindle.
To install the new belt, position the belt in the groove of the motor pulley and pull the belt toward the top
of the spindle. It will help to pull the belt forward and roll the front portion of the belt downward when
stretching it over the top of the spindle. Once the belt is in place, rotate the spindle by hand a few times
to check for binding and to make sure the belt is properly installed. Re-install the covers.
