Installation
15
3.2
Machine Connections
On the rear of the Vision Express, there are three connection ports. The power cord, the network cable
(or crossover cable) RJ-45 ethernet port, and the remote on/off port for optional equipment.

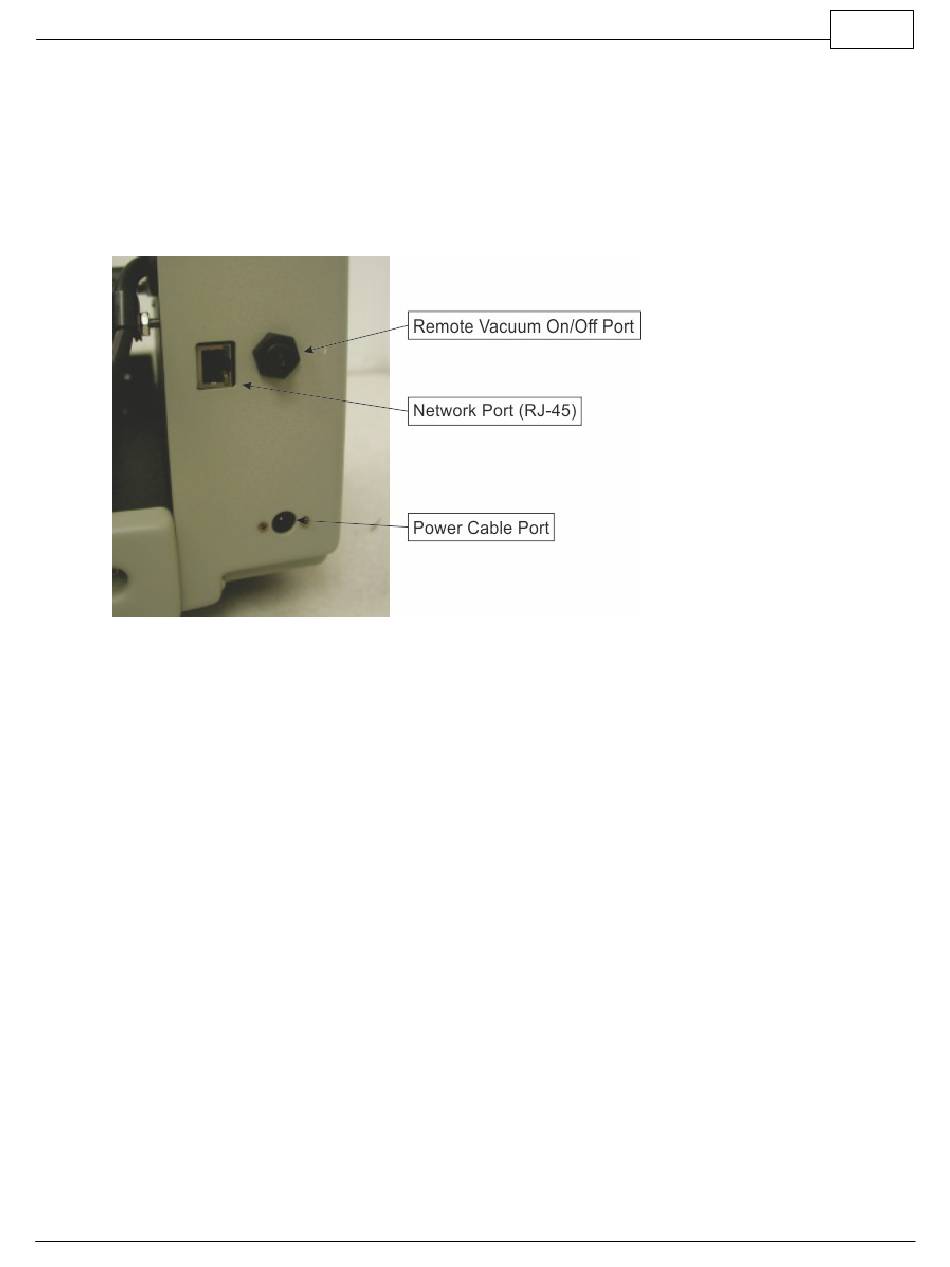

Vision Express (rear view)
Connect the power supply cord to a 110 - 220 VAC source, then plug the power cable into the port on
the back of the machine. Plug in the network cable (or the crossover cable) to the back of the machine
and either plug the network cable into your network, your hub, or using the crossover cable, plug into
the network port on the back of your computer.
NOTE - The crossover cable is colored gray.
© 2015 Vision Engraving & Routing Systems
