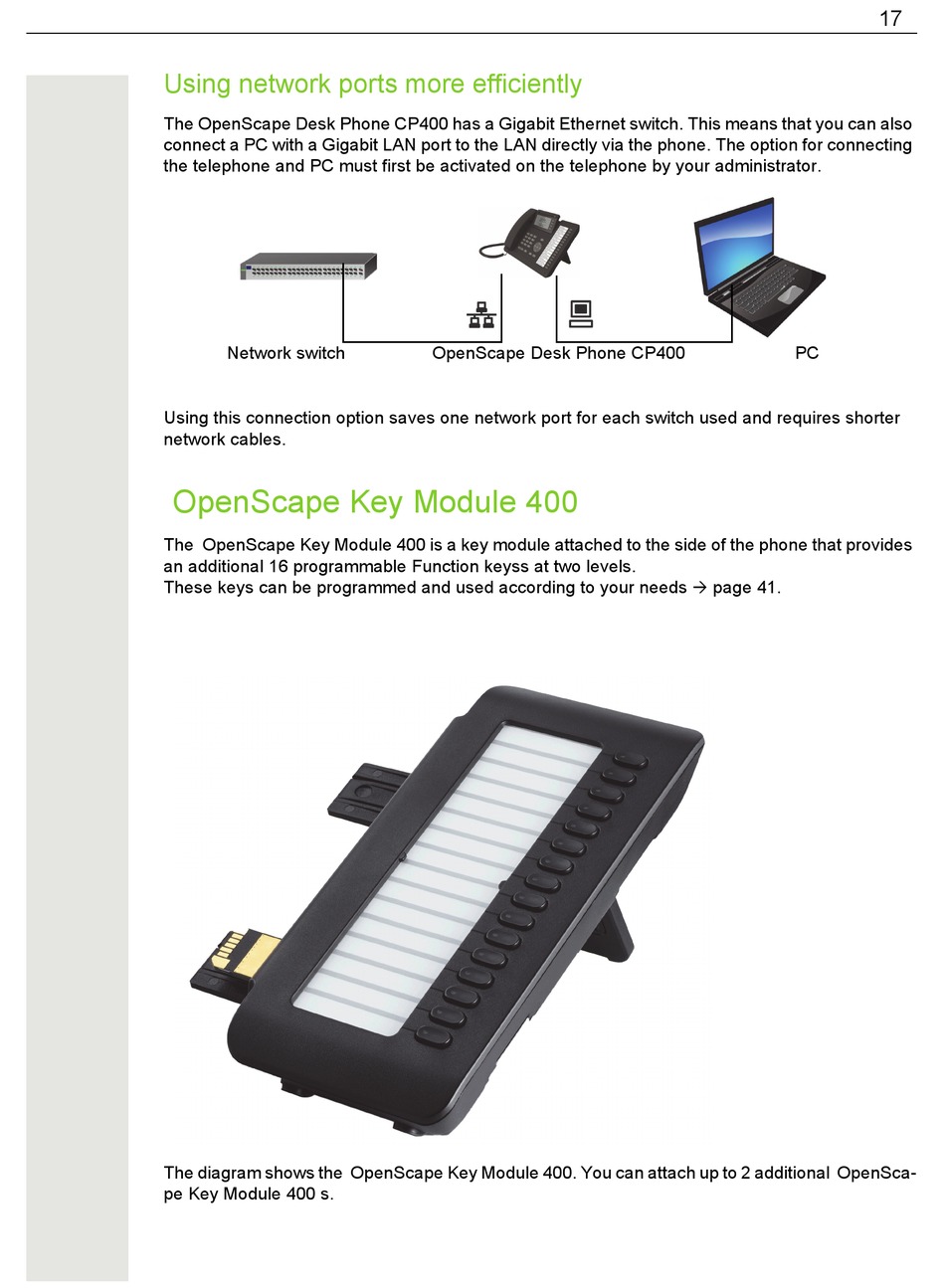

Using network ports more efficiently

The OpenScape Desk Phone CP400 has a Gigabit Ethernet switch. This means that you can also
connect a PC with a Gigabit LAN port to the LAN directly via the phone. The option for connecting
the telephone and PC must first be activated on the telephone by your administrator.
Network switch OpenScape Desk Phone CP400 PC
Using this connection option saves one network port for each switch used and requires shorter
network cables.

OpenScape Key Module 400

The OpenScape Key Module 400 is a key module attached to the side of the phone that provides
an additional 16 programmable Function keyss at two levels.
These keys can be programmed and used according to your needs page 41.

The diagram shows the OpenScape Key Module 400. You can attach up to 2 additional OpenSca-
pe Key Module 400 s.
