Unify OpenStage 40 HFA Quick Reference Card

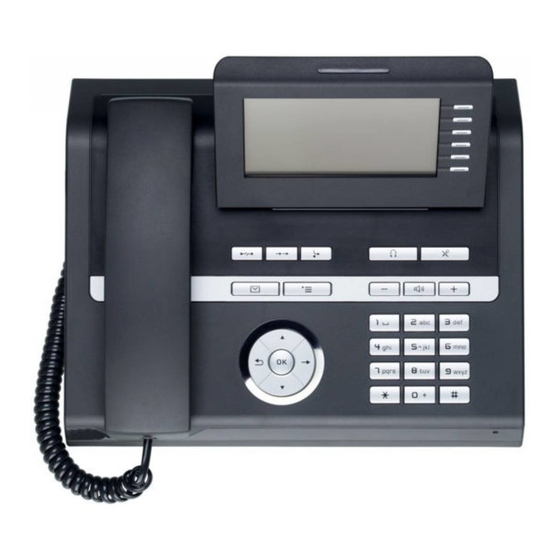

Key Layout and Operation
Function Keys
s
End (disconnect) call
,
Open redial list
r
Activate/deactivate call forwarding
O
View messages (Voicemail, Callback)
N
Settings/Application menu
Audio Keys
o
Turn headset on/off
p
Turn mute on/off
-
Decrease the volume
+
Increase the volume
n
Activate/deactivate loudspeaker
5-Way Navigator
m
Press key:
- Scroll upwards
Hold down:
- Jump to beginning
of list
h
Press key:
- Cancel function
- Delete character
left of cursor
- Go up a menu level
l
Press key:
- Scroll downwards
Hold down:
- Jump to end of list
Open Context Menu
If the context menu isn't shown, you can access the context
menu by pressing the right arrow key on the 5-Way Navigator.
h
Use to can-
cel and go back
one level.
The left arrow key escapes the selected option or function.
Icon Overview
Display Icons in Idle State
Icon Explanation
You have received one or more new messages
One or more new entries have been added
to the call logs
Call Forwarding is activated for all calls
Ring tone is deactivated
Remote maintenance is activated (HFA only)
i
Do not disturb is activated
Press key:
- Confirm input
- Perform action
Phone lock is activated
g
A mobile user is logged on to the telephone (HFA only)
Press key:
- Call up the context
menu
- Go down a level
Display Icons during a Call
Icon Explanation
Call is active
Call has been disconnected
You have placed the call on hold
Your call partner has placed the call on hold
g
{
Use to Secure voice connection (HFA only)
open context
menu.
}
Insecure voice connection (HFA only)
OpenStage 40 HFA
OpenStage 40 T
OpenScape 4000
HiPath 4000
Quick Reference Card
