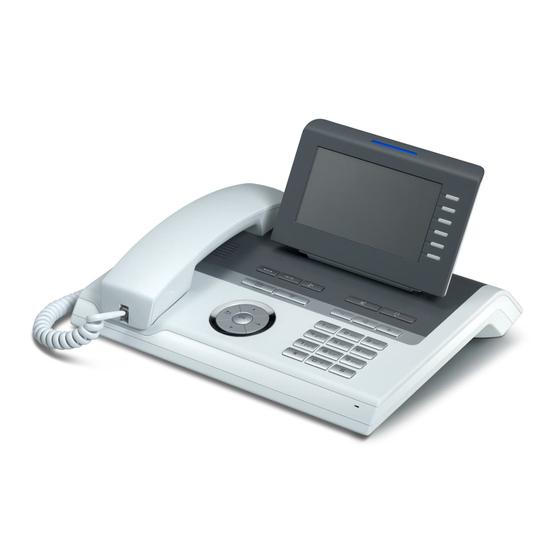

- Page 1 OpenStage 40 SIP, OpenStage 40 G SIP OpenStage Key Module 40 OpenScape Voice User Guide A31003-S2030-U106-3-7619...
- Page 2 Availability and technical specifications are subject to change without notice. Unify, OpenScape, OpenStage and HiPath are registered trademarks of Unify GmbH & Co. KG. All other company, brand, product and service names are trademarks or registered trademarks of their respective holders.
- Page 3 Important information Important information For safety reasons, the telephone should only be supplied with power: • using the original power supply unit. Part number: L30250-F600-C14x (x: 1=EU, 2=UK, 3=US) or • in a LAN with PoE (Power over Ethernet) which complies with the IEEE 802.3af stan- dard.
- Page 4 • Do not operate the telephone in damp environments, such as bathrooms. Product support on the Internet Information and support for our products can be found on the Internet at: http://www.unify.com/. Technical notes, current information about firmware updates, frequently asked questions and lots more can be found on the Internet at:...
- Page 5 Contents Contents Important information ....... . . 3 Trademarks ..............3 Location of the telephone .
- Page 6 Contents Basic functions........38 Secure voice transmission .
- Page 7 Contents Call forwarding ........60 Standard call forwarding .
- Page 8 Contents Phonebooks and call lists ......108 Personal directory ............108 Creating a new contact .
- Page 9 Contents Privacy/security ........139 Activating and deactivating the ringer ..........139 Activating and deactivating the ringer permanently or setting to beep .
- Page 10 Contents One-way Intercom and Two-way Intercom function ....... . . 165 One-way Intercom .
- Page 11 Contents Call recording........195 Recording modes .
- Page 12 General information General information About this manual This document contains general descriptions of the technical options, which may not always be available in individual cases. The respective features must therefore be individually defined in the terms of the contract. If a particular function on your phone is not available to you, this may be due to one of the following reasons: •...
- Page 13 General information Service Our service department can only help you if you experience problems or defects with the phone. Should you have any questions regarding operation, your specialist retailer or network ad- ministrator will gladly help you. For queries regarding connection of the telephone, please contact your network provider. If you experience problems or defects with the phone, please dial the service number for your country.
- Page 14 Getting to know your OpenStage phone Getting to know your OpenStage phone The following sections describe the most frequently used operating elements and the displays on your OpenStage phone. The user interface of your OpenStage 40/40 G You can make and receive calls as normal using the handset. The graphic display permits intuitive operation of the phone Page 24.
- Page 15 Getting to know your OpenStage phone Ports on the underside of the phone Power supply unit (if required) Network switch Headset Country- specific cable Key Module Handset Properties of your OpenStage 40/40 G OpenStage 40 G LCD display, 40 x 6 characters Illuminated display Programmable sensor keys Full-duplex speakerphone function...
- Page 16 OpenStage Manager This program offers you an additional option for tailoring your OpenStage to your personal needs. Further information is available at: http://wiki.unify.com/wiki/OpenStage_Manager. Features • Phonebook management • Synchronization of contacts • Save and restore •...
- Page 17 Getting to know your OpenStage phone Key Module OpenStage Key Module The OpenStage Key Module is a key module attached to the side of the phone that provides 12 additional illuminated, programmable keys. Like keys on the phone, these keys can be programmed and used according to your needs Page 20.
- Page 18 Getting to know your OpenStage phone Keys Function keys Function when key is pressed LED display End (disconnect) call. none Open redial list none Activate/deactivate forwarding Red: Call forwarding is activated Open phone menu Page 35 Red: Menu is active ...
- Page 19 Getting to know your OpenStage phone Navigator Before using the telephone, remove the protective covering from the navigator surface. With this control, you can manage most of your phone’s functions, as well as its displays. Operation Functions when key is pressed •...
- Page 20 Getting to know your OpenStage phone Programmable sensor keys Your OpenStage 40 telephone features six programmable lit sensor keys. Increase the number of programmable sensor keys by connecting a key module Page 17. Mirea, Ch. Level 2 Touch the key briefly to activate the programmed function or dial the stored number Page 80.
