The Display

Alphanumeric
Display information provided by the supported Mitel Networks VoIP solution when
the handset is off-hook will be passed directly to the handset display. The handset
will display up to 18 characters of each line. Certain characters may be used by the
supported Mitel IP PBX solution that are not implemented in the handset, such as
definable or special characters.
Press the key while off hook to scroll through features and emulated keys. Press
FCN
the key while off hook to scroll through the line/memory keys.
LINE

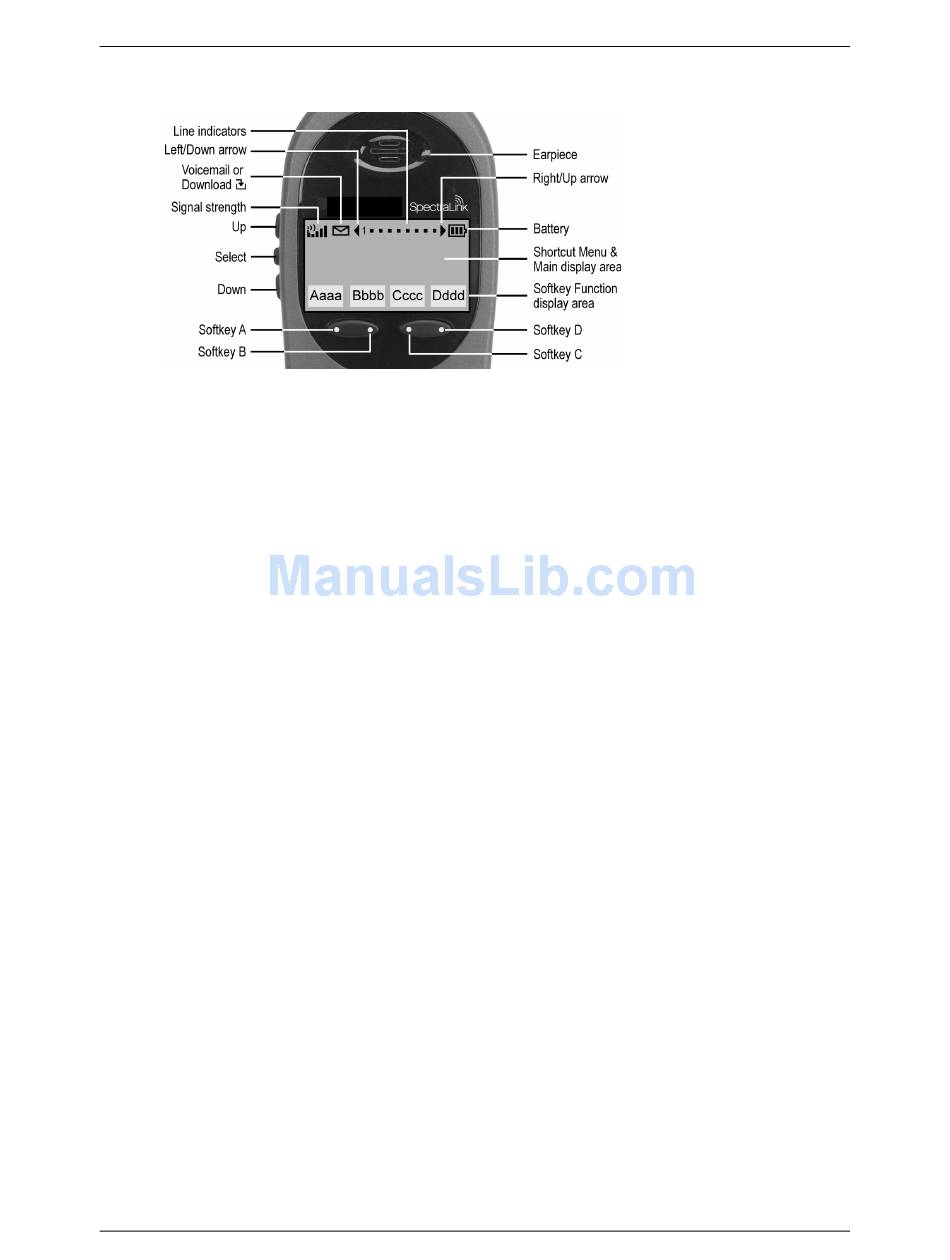

Signal Strength
The signal strength icon indicates the strength of the signal from the AP and can
assist the user in determining if the handset is moving out of range. It is always
present on the display in the upper left corner.
Battery Charge
The battery icon indicates the amount of charge remaining in the Battery Pack. There
are three levels and when only one level remains, the Battery Pack needs to be
charged. It is always present on the display in the upper right corner.
Voicemail
The voicemail icon is activated when a new voice mail message is received if the
feature is supported by the phone emulation. It appears to the right of the signal
strength icon.
Download
Indicates that the handset is downloading code. This icon only appears while the
handset is running the over-the-air downloader. It appears to the right of the signal
strength icon in the same location as the Voicemail icon.

Line Indicators

The line indicators on the handset will convert to a solid or flashing number to
mimic the icons next to line keys on the Mitel Networks 5220. The text that appears
next to the line keys on the 5220 IP Phone is accessed on the handset by pressing the
key.
LINE
