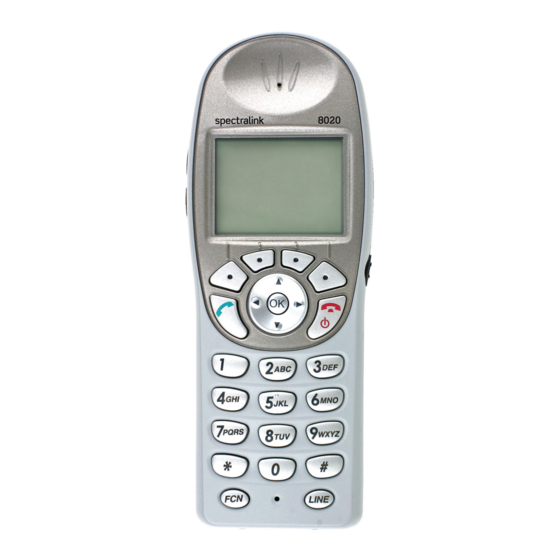

SpectraLink NetLink 8020 Install Manual

Aruba mobility controller configuration and deployment guide

Hide thumbs Also See for NetLink 8020:

Configuration (43 pages)

Quick start manual (12 pages)

Install manual (3 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual See also: User Manual

Aruba Mobility Controller

Configuration and Deployment Guide

SpectraLink's Voice Interoperability for Enterprise Wireless (VIEW) Certification

Program is designed to ensure interoperability and high performance between NetLink

Wireless Telephones and WLAN infrastructure products. The products listed below

have been thoroughly tested in SpectraLink's lab and have passed VIEW Certification.

This document details how to configure the Aruba mobility controller with NetLink

Wireless Telephones.

Certified Product Summary

Manufacturer:

Approved products:

RF technology:

Radio:

Security:

AP firmware version tested:

Handset models tested:

Handset software tested:

Radio mode:

Maximum telephone calls tested per AP:

Network topology:

Denotes products directly used in Certification Testing.

†

* Maximum calls tested during VIEW Certification and the recommended setting in the SVP Server. The

certified product may actually support a higher number of calls for 802.11a and 802.11g radio modes.

Service Information

If you encounter difficulties or have questions regarding the configuration process,

please contact Aruba Networks technical support at 1-800-943-4526, visit

www.arubanetworks.com/support

PN: 72-9965-00-G.doc

Aruba Networks

http://www.arubanetworks.com

Wireless Controllers

Access Points

A200

AP41

A800

AP60

A2400

AP61

A6000

AP65

†

AP70

802.11b/g/a

2.4 GHz (802.11 b/g), 5 GHz (802.11a)

WPA2-PSK

2.5.4.0

e340/h340/i640

89.134

802.11b

Switched Ethernet (recommended)

or e-mail

support@arubanetworks.com.

†

8000 Series

122.010 or greater

802.11g

802.11a

Page 1

Table of Contents

Need help?

Do you have a question about the NetLink 8020 and is the answer not in the manual?

Questions and answers

Summary of Contents for SpectraLink NetLink 8020

Page 1: Service Information
Program is designed to ensure interoperability and high performance between NetLink Wireless Telephones and WLAN infrastructure products. The products listed below have been thoroughly tested in SpectraLink’s lab and have passed VIEW Certification. This document details how to configure the Aruba mobility controller with NetLink Wireless Telephones.
Page 2: Network Topology
The following topology was tested during VIEW Certification testing. Deployment Description It is a SpectraLink requirement that voice users be placed on a separate VLAN (e.g., VLAN 10) and data users on a separate VLAN (e.g., VLAN 25). The voice and data VLANs reside on the Aruba mobility controller and not on the access points (APs).
Page 3: Known Limitations
“switch IP address” from their current subnet. Known Limitations No limitations were discovered during VIEW Certification testing. VIEW Certification testing verifies that the wireless telephone and the AP interoperate at the packet level; therefore, no add-on vendor features were tested in the scope of VIEW.
Page 4 Via the CLI By default, only SSH (Secure Shell) access to the switch (mobility controller) is permitted. 1. From a management system that has network connectivity to the switch, connect to the switch using SSH: ssh admin@<switch IP address> 2. Enter the admin password at the password prompt. 3.
Page 5: Initial Setup
Initial Setup Before starting, please ensure that the Policy Enforcement Firewall module license is enabled on the Aruba mobility controller. Please contact Aruba Networks for licenses and installation information. On power-up, the user is presented with the startup wizard: Enter System name [Aruba800]: Aruba Enter VLAN 1 interface IP address [172.16.0.254]: Enter VLAN 1 interface subnet mask [255.255.255.0]: Enter IP Default gateway [none]:...
Page 6: Connecting Aps
Assigning an IP to the Mobility Controller 1. Connect to the switch via the CLI. 2. Login with the configured username and password, 3. Type enable at the 4. Type the enable password, 5. Type configure terminal 6. Create the VLAN for the voice (vlan 25) using the VLAN command: (Aruba) (config) #vlan 25 7.
Page 7: Ssid Configuration
AP’s unique location code or globally using the wildcard location. “ as the wildcard. Example: ap location 0.0.0 Both the Aruba APs and the Spectralink handsets support the 802.11a and the 802.11b/g radios. To apply the SSID to both bands configure the SSID as follows: configure terminal ap location x.y.z...
Page 8: Access Point Configuration
6. For the DTIM Period 7. Select the AES-CCM 8. Under , select the WPA2 9. Select PSK Passphrase typing in the passphrase. 10. Enter the PSK AES Key/Passphrase 11. Click the button. Apply Navigating to other pages without saving/applying the changes will result in the loss of the changes.
Page 9 Radio Standard Signal Strength (RSSI) 802.11b 802.11g 802.11a For additional details on RF deployment please see the Deploying NetLink Wireless Telephones: Best Practices document at: http://www.spectralink.com/resources/white_papers.jsp. Recommended AP configuration settings CLI Commands Required Settings Max-clients <x> Beacon-interval <x> Set to default dtim-period <x>...
Page 10 CLI Commands Required Settings 802.11b/g rates These rates should be determined from RF site survey. Verify you have sufficient coverage to support data rates. 802.11b/g Tx rates These rates should be determined from RF site survey. Verify you have sufficient coverage to support data rates.
Page 11 Web-based configuration 1. Click the Configuration 2. In the navigation pane, select 3. Click the 802.11b/g 4. For Max Retries , enter 5. Select the Short Preamble 6. For the DTIM period 7. For Basic Rates determine if coverage is sufficient to support all data rates. 8.
Page 12 11. Click the 802.11 a 12. For , enter Max Retries 13. For the DTIM period 14. For Basic Rates and Supported Rates, determine if coverage is sufficient to support all data rates. 15. To assign the power and channel setting manually: a.
Page 13 The steps are as follows: 1. Setup aliases for the SVP Server. 2. Set policies for the wireless telephone user to the required voice server, DHCP and TFTP servers. Add other ACLs as required to permit other traffic from the wireless telephones.
Page 14 5. Create a new net-destination at servers as hosts. For more details on configuring the net-destinations, refer to the user guide. Create policies for the wireless telephone user The policies shown in the above example can be configured using the Web interface as follows: PN: 72-9965-00-G.doc...
Page 15 Assign policies to the role Create a role, for example that would be assigned to the handsets when they are authenticated successfully. The Security Policies and QoS can also be configured through the command line interface (CLI). The CLI commands corresponding to this section are as follows: configure terminal netdestination tftp-server host 10.168.0.20...
Page 16 "00:90:7a" set-value phone Quality of Service (QoS) Quality of service is achieved by prioritizing the SpectraLink voice traffic over data traffic. To prioritize the voice traffic over data traffic in the AP traffic queues, the “queue high”...
Page 17 testing, the Aruba 800 was configured as the master switch and the Aruba 6000 was configured as a local switch; therefore, this configuration is used in the following examples. For instructions on setting up a switch as a local switch refer to Aruba’s user guides. Ensure that both switches have IP connectivity.
Page 18 It’s also necessary to set the default gateway of the SpectraLink SVP Server and NetLink Telephony Gateway to the IP address of the router connected to the master switch.
Page 19: Checking The Configuration
Checking the Configuration Verify connectivity by pinging between the switches, the APs, and the server and gateway. The switch and AP are now ready for use with the NetLink Wireless Telephones. To show AP settings: show ap config location x.y.z To show all APs connected to a switch: show stm connectivity To show clients associated to all APs:...
