Handset Display

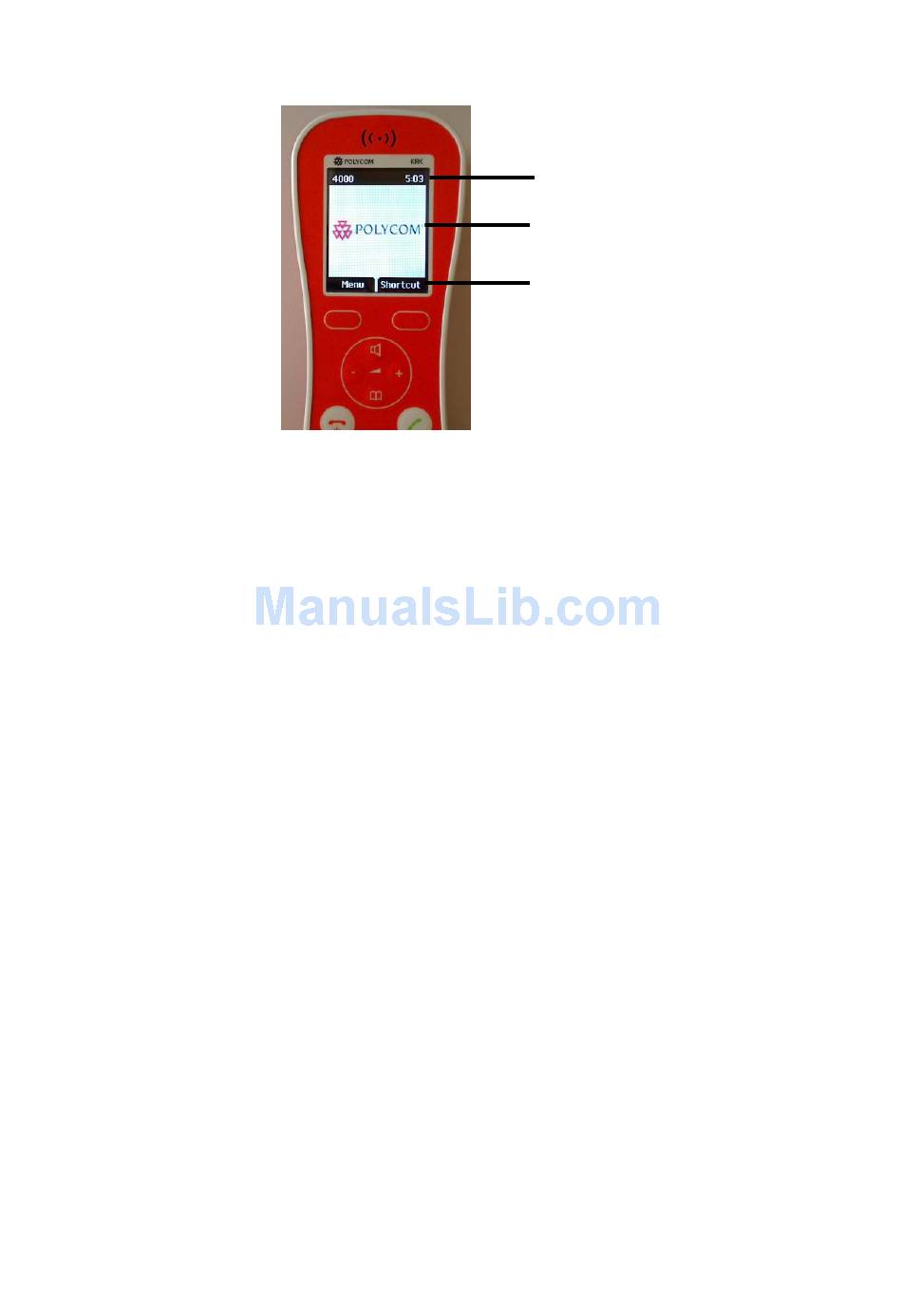

The display is divided in three parts: Status Bar, Display Center and Softkey Text (see figure
above).
The types of information shown in Status Bar when:
on hook (idle): Status Bar shows user ID, personal settings and time.
•
off hook: Status Bar shows actions ("calling", "connected", etc.)
•
The types of information shown in Display Center when:
on hook (idle): Display Center shows standby logo or call information when receiving an
•
incoming call
off hook: Display Center shows a telephone icon.
•
The types of information shown in Softkey Text when:
on hook (idle): Softkey Text shows Menu and Shortcut
•
off hook - display shows Mic Mute function.
•
14211600 Version 2.0
October, 2013
