Attention:
If you need to put the device on its rear side, e.g. to insert or replace the
rechargeable batteries, please place a soft cloth under the device.
plusoptiX A12C has a 5.7 inch screen with capacitive touch sensor located on the rear side of
the device. To activate one of the functions displayed on the screen, all you need to do is
gently touch the screen. The screen and touch sensor are protected from damage behind a
thin glass shield.
plusoptiX A12R has a 4.3 inch screen with resistive touch sensor located on the rear side of
the device. To call up a function displayed on the monitor screen, it is sufficient to tap the
screen with the tip of your finger or with your finger nail. Screen and touch sensor are
protected behind a thin transparent plastic cover.
USB
Mini USB
SD card
12V input

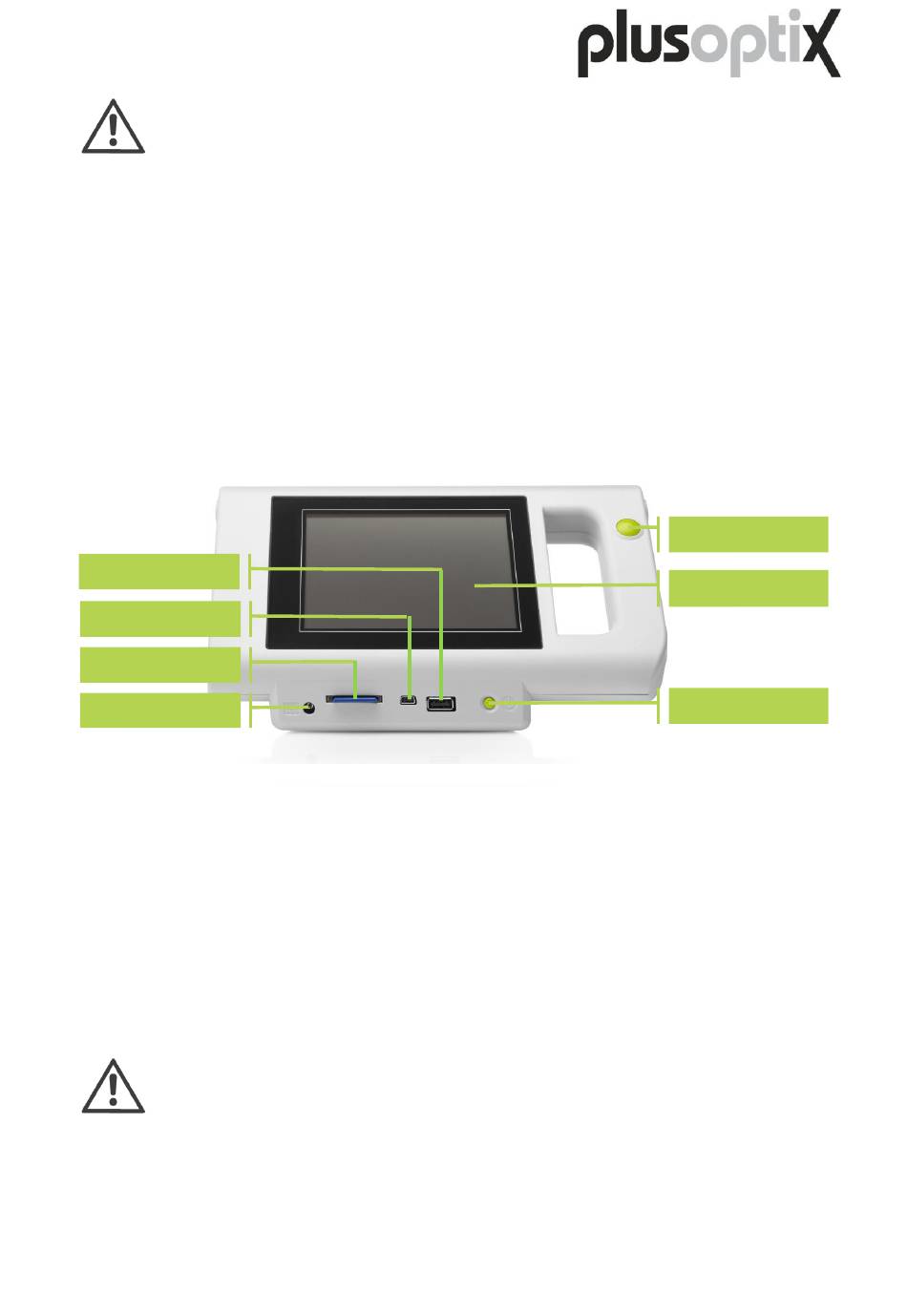

Figure 3: Rear view of the device (plusoptiX A12C)

Two green buttons are visible – the On/Off button (on the right side below the screen), and the
Shutter (on the handle to the right, next to the screen). Chapters 2.4 "Switching the device on
and off" and 3.4 "Starting a measurement and positioning the camera" deal with the functions
of these buttons.
The device has three interfaces – USB, Mini-USB and SD card – which are located in the
center below the screen. Chapters 4.1.11 "SD card and USB interfaces" and 4.1.12 "Mini-USB
interface" explain how to use these interfaces.
Note:
All interfaces are mounted upside down. This means that all media (i.e. USB flash
drives, Mini-USB plugs and SD cards) must be connected with the upper side
facing down.
The left lower edge contains the connection for the 12V charging cable of the medical power
adapter.
Page 8/68
Shutter
Screen
On/Off button
