PLUSOPTIX A12C Short Manual

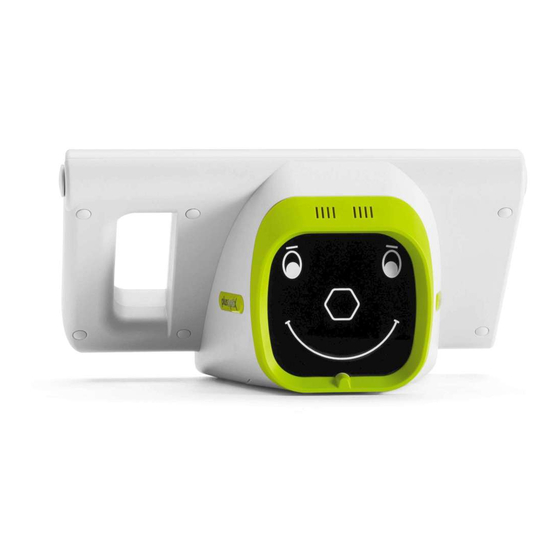

Binocular autorefractor.
viewing the measurement results
Hide thumbs
Also See for A12C:
- User manual (68 pages) ,
- Short manual (11 pages) ,
- Software upgrade (2 pages)
Related Manuals for PLUSOPTIX A12C
Summary of Contents for PLUSOPTIX A12C

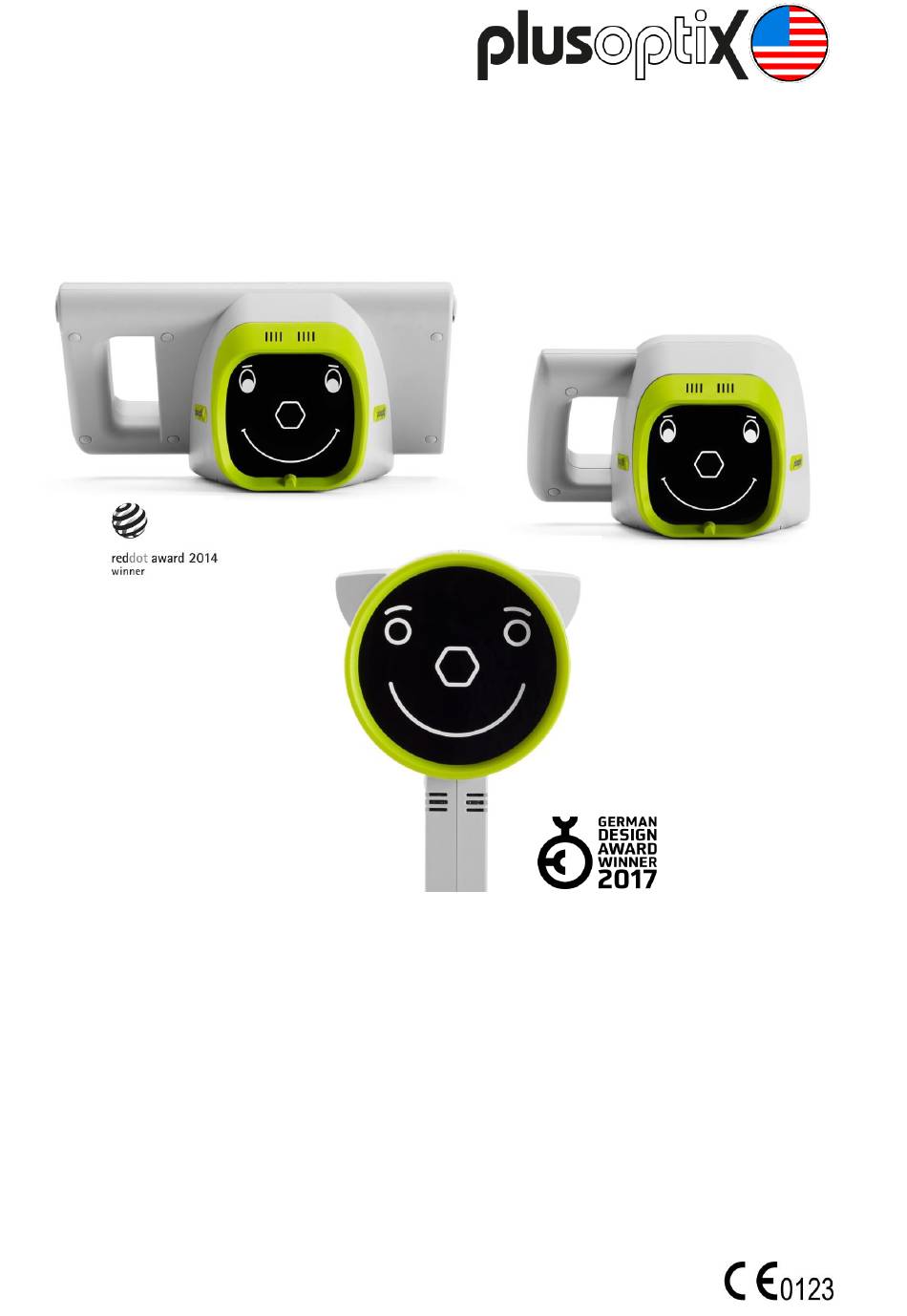

- Page 1 Binocular Autorefractor Short Manual 3 “Viewing the measurement results” Plusoptix GmbH Neumeyerstrasse 48 90411 Nuremberg Germany www.plusoptix.com Edition: 09/17/2018...
-
Page 2: Table Of Contents
Viewing the measurement results ..................3 “Camera image” results page ..................4 “Measurement values” results page ................. 4 “Database” results page (only plusoptiX A12C and A16) ..........6 Performing the next measurement ................... 7 List of figures Figure 1: Overview of the results pages ................3 Figure 2: Viewing the measurement values ................ -
Page 3: Viewing The Measurement Results
As space on the screen is limited, the measurement results are spread across a total of two (plusoptiX A12R), or three screens (plusoptiX A12C and A16) respectively. After the measurement, you will first see the “measurement values” results page. By touching the appropriate button in the middle of the navigation bar, you can access each of the three results pages. -
Page 4: "Camera Image" Results Page
2 “Camera image” results page Checking the last camera image means you can detect media opacities, which do not lead to a measurement interruption. Note: After every measurement, check on the “Camera image” results page whether both pupils are the same lightness and whether structures can be seen within the pupils. - Page 5 A measurement is then not possible and it will be interrupted inconclusively. The Plusoptix Binocular Autorefractor compares the lines of vision of both eyes and calculates the asymmetry of the lines of vision (ASY). An asymmetry of 0° is equivalent to perfect symmetry.
-
Page 6: "Database" Results Page (Only Plusoptix A12C And A16)
SD card (plusoptiX 12) / USB stick (plusoptiX 16). For more information about the documentation of measurement results, please see supplementary short manual 5 and 6. -
Page 7: Performing The Next Measurement
5 Performing the next measurement Attention: Following an anonymous measurement, a measurement report is not saved automatically. As soon as you return to the home page without previously saving, the measurement report can no longer be saved and / or printed. The measurement values, on the other hand, are saved under a consecutive number when you take an anonymous measurement.
