Checking and documenting measurement results

Screen size is limited and therefore measurement results are presented on two (plusoptiX
A12R), three screens (plusoptiX A12C) respectively, for better readability. These three
measurement result screens are:

Check measurement results screen

Review video screen

Review database entries screen (nur plusoptiX A12C)
Note:
To exit these three measurement result screens, i.e. to return to the Start screen
and to perform another measurement, you have to press the Shutter.
Touch orange arrows (1) and (2) located in Navigation bar to toggle in between measurement
result screens. An orange dot in between the arrows (1) and (2) indicates which of the two,
three respectively, measurement result screens is displayed.
Check measurement results screen
If a anonymous measurement was performed, the measuring report can be saved manually by
touching the printer button (3).
After touching the printer button (3) the patient data entry screen is displayed by plusoptiX
A12C (see chapter 3.3 "Entering patient data (only plusoptiX A12C)"). PlusoptiX A12R
displays a input field instead. The filled in data are saved by touching the green checkmark (4).
PlusoptiX A12C saves the filled in data in the patient database, too.
Review video screen

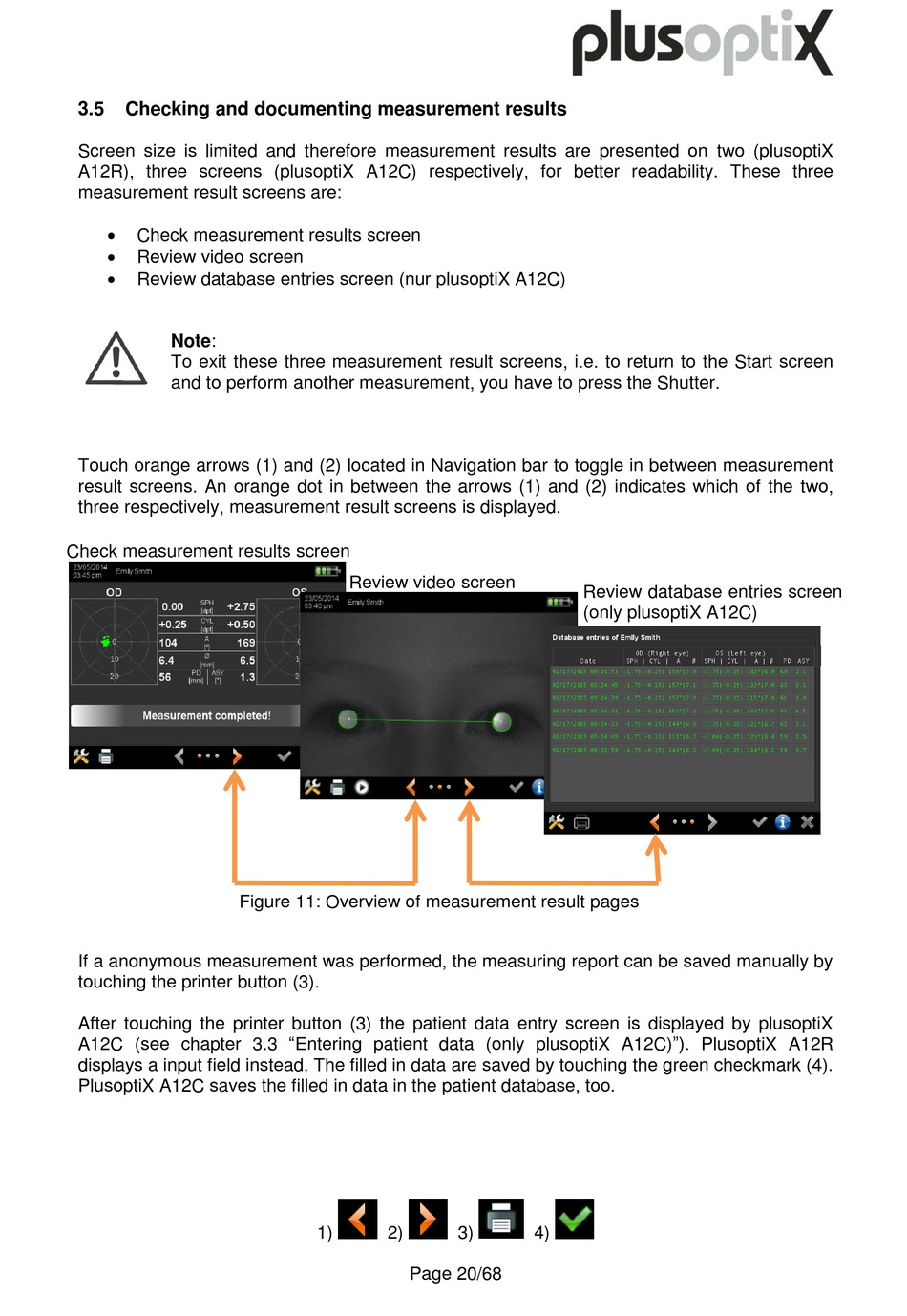

Figure 11: Overview of measurement result pages

1) 2) 3) 4)
Page 20/68
Review database entries screen
(only plusoptiX A12C)
