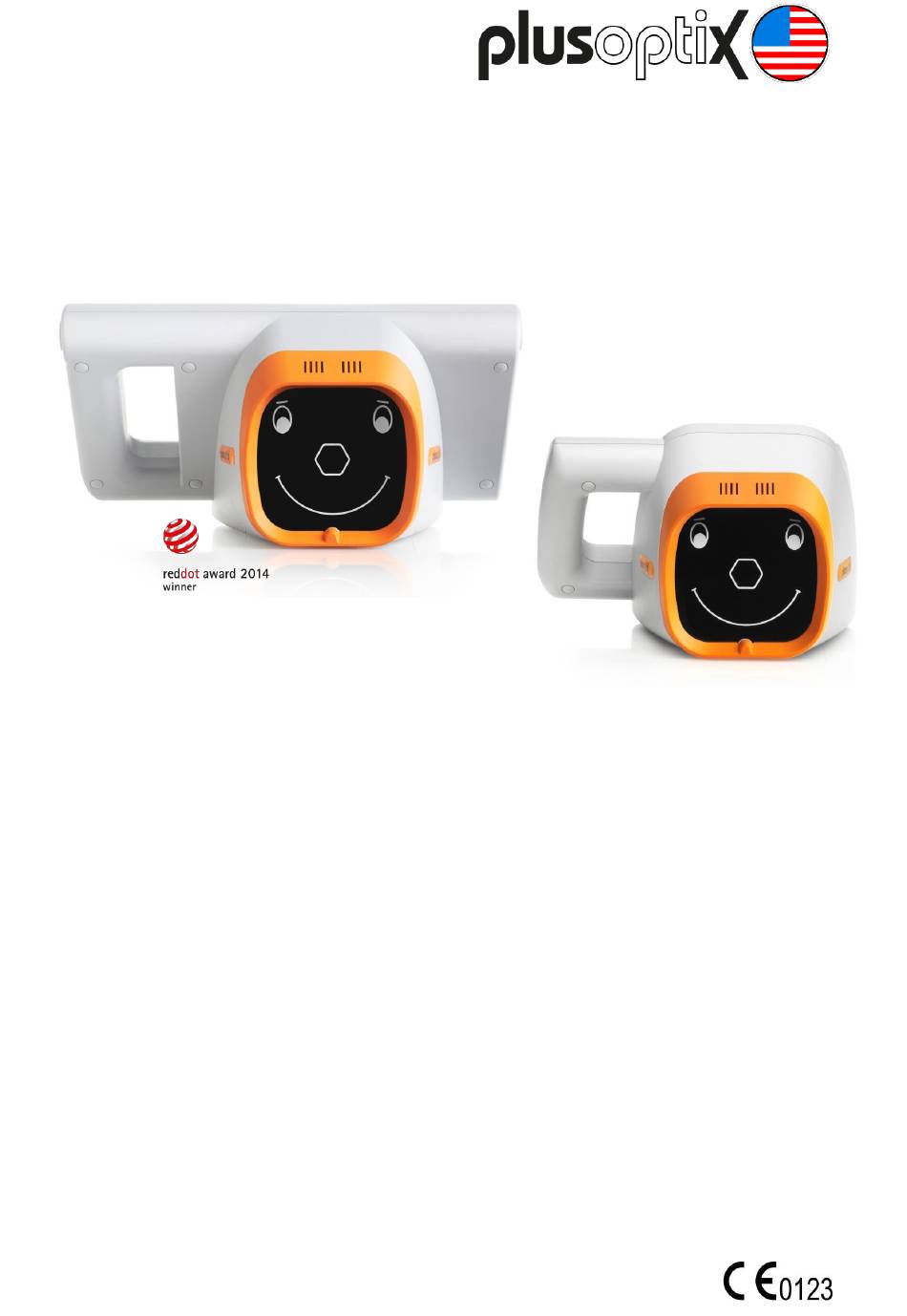

- Page 1 Mobile Vision Screener “plusoptiX S12C” “plusoptiX S12R” User Manual Edition: 10/31/2018 - PAD Plusoptix GmbH Neumeyerstrasse 48 90411 Nuremberg Germany www.plusoptix.com Englisch...
-
Page 2: Table Of Contents
List of figures Figure 1: Device in cardboard box (plusoptiX S12C) ............. 6 Figure 2: Front view of the device (plusoptiX S12C) .............. 7 Figure 3: Rear view of the device (plusoptiX S12C) ............... 8 Figure 4: Battery compartment view of the device (plusoptiX S12C)........10 Figure 5: Setting the date and time ..................11... -
Page 3: Intended Use And Responsibility Of The Operator
1 Intended use and responsibility of the operator Thank you for choosing to purchase the “plusoptiX A12”! Plusoptix is the world leader in the development, production and distribution of medical devices for pediatric ophthalmic examination. If you have any further questions after reading this user manual, please do not hesitate to contact us. - Page 4 Intended use The “plusoptiX S12” is used for the early detection of visual disorders (preventative eye care). These visual disorders can cause permanent loss of vision in an eye (amblyopia) if they are not discovered and treated in the early years.
- Page 5 - Training must at least include reading the user manual and a briefing about the operation of the “plusoptiX S12”. The briefing about the operation of the “plusoptiX S12” can be carried out by a previously trained user. In addition to this, briefings are also provided by Plusoptix and by Plusoptix dealers authorised by Plusoptix.
-
Page 6: Checking The Scope Of Delivery
Please check that the contents of the packaging are complete at time of delivery. The scope of delivery includes: - User Manual for “plusoptiX S12” - Mobile Binocular Autorefractor "plusoptiX S12C" or "plusoptiX S12R" - Medical power adapter GSM36P12-P1J - Power cord (in compartment under the device) -
Page 7: Learning About The „Plusoptix S12

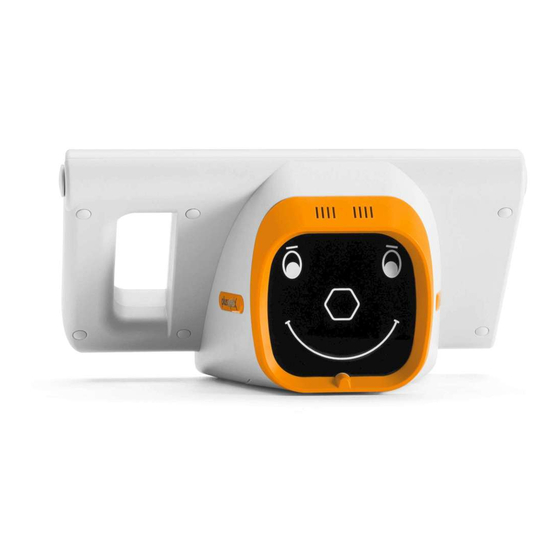

3 Learning about the „plusoptiX S12“ The “plusoptiX S12” is made up of the device with a child-friendly smiley face. Speaker Protective shield with face Camera lens behind hexagonal nose Figure 2: Front view of the device (plusoptiX S12C) During a measurement, the “plusoptiX S12” records a series of images. To ensure children look into the camera during the measurement, the “plusoptiX S12”... -
Page 8: Integrated Interfaces
S12C has a 5.7 inch screen with capacitive touch sensor located on the rear side of the device. To activate one of the functions displayed on the screen, all you need to do is gently touch the screen. The screen and touch sensor are protected from damage behind a thin glass shield. -
Page 9: Mini Usb Interface
3.3. Connection the USB keyboard and mouse (optional) To ease patient data entry on the “plusoptiX S12”, it is necessary to connect a conventional USB keyboard. Connect your input device with the USB interface of the “plusoptiX S12”. You can also connect wireless input devices instead of cabled ones. -
Page 10: Inserting And Charging The Rechargeable Batteries
Battery compartment Type plate Figure 4: Battery compartment view of the device (plusoptiX S12C) Attention: If you need to put the device on its rear side, e.g. to insert or replace the rechargeable batteries, please place a soft cloth under the device. -
Page 11: Putting The „Plusoptix S12" Into Operation And Adjusting Settings
(4). Press the On / Off button briefly to turn the device off. The “plusoptiX S12” will turn off. More information about adjusting the settings and implementing a WLAN connection can be found in short manual 1 on our homepage (www.plusoptix.com), under support. -
Page 12: Screen Displays And Training Videos
6 Screen displays and training videos All the screen displays of the “plusoptiX A12” are the same. The header is above, the information part in the middle and the navigation bar below. You can see a help page with explanations of portrayed buttons by touching the blue “?” (1) button. By touching the blue “?►”... -
Page 13: Checking And Loading Measurement Credits
(4) (see chapter 7.1) is only displayed if a USB stick is connected to the “plusoptiX S12”. The button to print an order fax (5) (see chapter 7.2) is only displayed if a SD card is connected to the “plusoptiX S12”. -
Page 14: Ordering New Measurements
5 lines and name it "surgeryaddress.txt”. Copy the file to the directory “/db” of a USB stick. As soon as you connect the USB stick to the running “plusoptiX S12”, your address is loaded automatically. After loading, the text file is automatically deleted on the USB stick. -
Page 15: Preparing The Measurement Area
(www.plusoptix.com), under support. 9 Performing measurements The “plusoptiX S12” measures both eyes at the same time (binocular) in 0.5 seconds from a distance of one meter. This means that even infants with a short attention span can be measured from the age of 5 months. -
Page 16: Preconditions For A Successful Measurement
Der Patient schaut auf die Kameralinse: The “plusoptiX S12” and the eyes of the patient must be aligned with one another. The patient must look at the nose of the smiley face. For this reason, an attention grabbing warble sound is emitted at the beginning of the measurement. -
Page 17: Selecting The Referral Criteria
Characteristic) curve. Select a group by touching the relevant button (2) and confirm by touching the green checkmark (3). Starting the measurement and adjusting the “plusoptiX S12” After you have set the time and date, the home page will be displayed every time you turn the “plusoptiX S12”... -
Page 18: Figure 11: Selection Of The Age Group
It is easier to hold the “plusoptiX S12” somewhat further away at the start of the measurement and then slowly move it towards the child. -
Page 19: Checking And Documenting The Measurement Results
Move the “plusoptiX S12” towards the patient until the camera image can be seen in high- definition on the screen and both pupils are encircled in green. -
Page 20: Maintenance, Calibration, Service And Guarantee
Posting the “plusoptiX S12” If case of a guarantee claim or service, please send to “plusoptiX S12” to us in its box at your expense. We will then return it to you at our expense after we have repaired it. If patient data is stored on the device, it must be removed from the device for data protection reasons. -
Page 21: Technical Details About The „Plusoptix S12
Diagonal 4.3‘‘, aspect ratio 5:3 (800 x 480 pixels) Resistive contact sensor Standards IEC 60601-1 Plusoptix devices use infrared light with a wavelength of 870nm and a maximum intensity of 135mW/sr. WLAN interface standards: Physical layer Supports 802.11 b and g standards... - Page 22 The plusoptiX 12 has been designed for the environment category "Environment in areas of domestic health care, except for vehicles and planes”. “plusoptiX A12” can be stored in its box. Do not put the box near heat sources (radiators, fan heaters, etc.). When you remove the “plusoptiX A12”...
- Page 23 RF Emission CISPR 11 Group 1 electronic devices found nearby. RF Emission CISPR 11 Category B The “plusoptiX 12” can be used in all areas which are Harmonic Emissions Category A connected to the public mains supply. IEC 61000-3-2 Voltage fluctuations /...
- Page 24 IEC 61000-4-6 0.15 MHz – 80 MHz 0.15 MHz – 80 MHz to „plusoptiX 12“ (including the electrical lines) less than the recommenced safe in ISM and amateur in ISM and amateur distance...
- Page 25 Recommended safety distances between portable and mobile HF telecommunication devices and the “plusoptix 12” The “plusoptiX 12” is intended for use in an electromagnetic environment with controlled HF disturbance variables. The customer or user of the “plusoptiX 12” can contribute to avoiding electromagnetic disturbances, by complying with the minimum distance between portable and mobile HF telecommunication devices (transmitters) and the “plusoptiX 12”...
