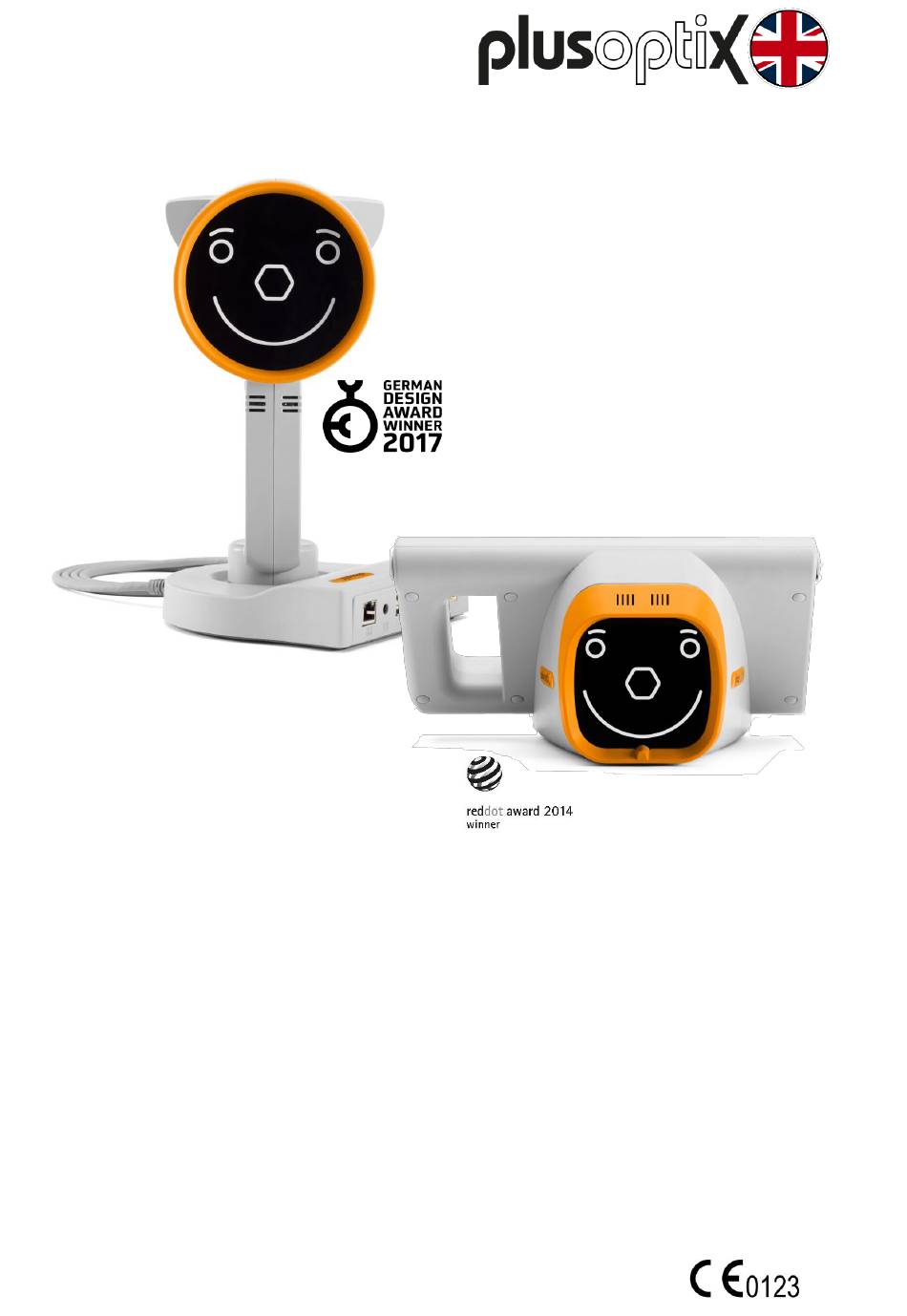

- Page 1 “plusoptiX S16” “plusoptiX S12C” User Manual Plusoptix “Vision Screener” Edition: 05.06.2020 / CAD Plusoptix GmbH Nordostpark 21 90411 Nuremberg Germany www.plusoptix.de English...
-
Page 2: Table Of Contents
These contain detailed descriptions of the additional functions of the device. Simply scan one of the QR codes on the next page, or go to “Support” on our homepage (plusoptix.com) to download the corresponding short manual. In addition to the short manuals, you will also find training videos there. - Page 3 Short manual 6 Documenting measurement results electronically Short manual 7 Documenting measurement results on paper Short manual 8 Exporting back-ups and reports (only plusoptiX S12C and S16) Short manual 9 Downloading software updates Short manual 10 Troubleshooting malfunctions and measurement interruptions...
-
Page 4: Intended Use
Only the included medical power adapter GSM36B12-P1J may be connected to the device for power supply. The Plusoptix Vision Screener is used for the early detection of vision disorders (preventive eye care). These vision disorders can cause permanent loss of vision (amblyopia) if they are not detected and treated in the early years of a child’s life. -
Page 5: Responsibility Of The Operator
Training must at least include reading the user manual and a briefing on the operation of the device. The briefing on the operation of the device is provided by Plusoptix, by Plusoptix authorised dealers, or can be carried out by a previously trained user. -
Page 6: Initial Operation Of The Plusoptix Vision Screener
3. Initial operation of the Plusoptix Vision Screener 3.1. Checking the scope of delivery and getting to know the device Upon delivery, please check that the contents of the packaging are complete. If any parts are missing, please notify the dealer immediately. -
Page 7: The Home Screen
3.2. The home screen After the start up, you will see the start screen. Similarly to all the screen displays of the device, it has the following structure: the header is arranged at the top, the information part in the middle, and the navigation bar at the bottom. Battery status Date and time (S12C) - Page 8 Touch the camera image if you wish to discontinue a started measurement. Note: The screen of the plusoptiX S12C is fixed at a 45° angle to the camera axis. Tilt your wrists downwards to align the device. Figure 3: Aligning the plusoptiX S12C...
- Page 9 - The end of the measurement is confirmed by a “PING” sound. After the measurement, you will first see the “camera image” results page. - Touch the appropriate icon in the middle of the navigation bar to access each of the three results pages: Figure 5: Overview of the results pages Results page...
-
Page 10: Maintenance, Service And Warranty
Service If your device is not working correctly, please read the information on troubleshooting in Short Manual 10 first. Please contact Plusoptix or a Plusoptix authorized dealer only if you fail to find a solution in the manual. Free software updates Please check every 12 months to determine whether a new software version is available for download. -
Page 11: Technical Specifications
+40°C (i.e. 50°F to 104°F) at 20% to 80% relative humidity (non- condensing). Disposal Do not dispose of the device as domestic waste. Please send the device to Plusoptix for environmentally sound disposal. We will reimburse you for the cost of the return. Measurement values Measurement value... - Page 12 Operation, interfaces and standards S12C 5.7 inch (capacitive) 4.3 inch (resistive) Touch screen Aspect ratio 4:3 Aspect ratio 5:3 operation (640 x 480 pixels) (800 x 480 pixels) 12V, USB, IR, Mini-USB, SD 12V, 4 x USB, IR, DVI Interfaces WLAN WLAN, LAN (RJ-45) Standards...
- Page 13 Dimensions and weight with and without cardboard box plusoptiX S12C 150 x 260 x 135 mm (5⅞ x 10¼ x 5⅓ in) Dimensions (LWH) without cardboard Weight 1.4 kg (49.38 oz) 270 x 420 x 210 mm (10⅔ x 16½ x 8¼ in)
- Page 14 Electromagnetic environment – Immunity test IEC 60601 test values Conformity values Instructions The floor should be made of wood, ceramic or stone. If the floor is ± 8 kV contact ± 8 kV contact ESD IEC 61000-4-2 covered with a synthetic material, ±...
