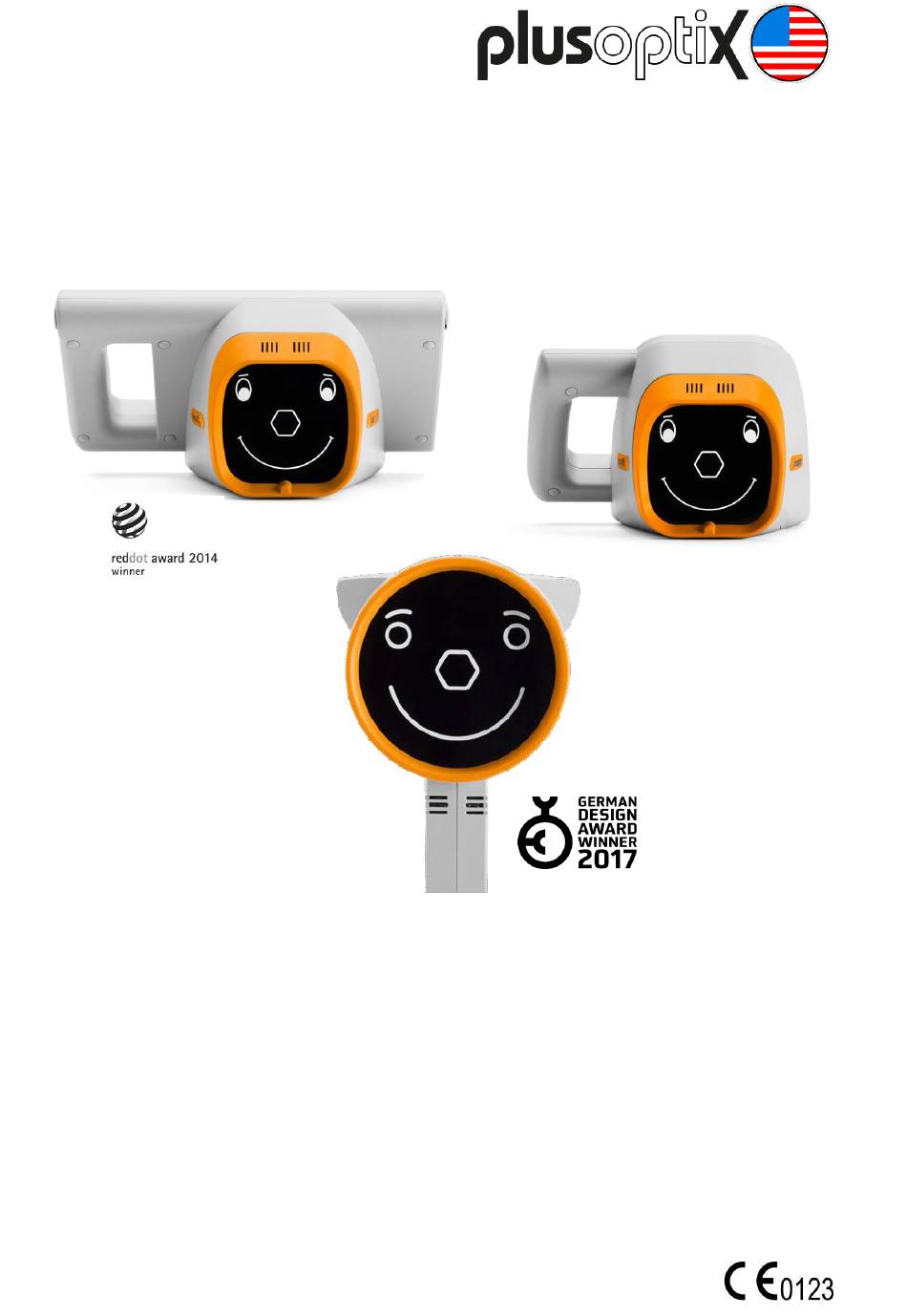

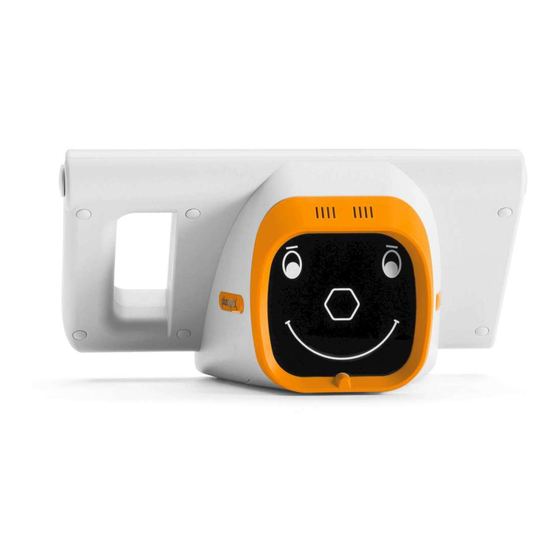

- Page 1 Vision Screener Short Manual 9 “Troubleshooting malfunctions and measuring interruptions” Plusoptix GmbH Neumeyerstrasse 48 90411 Nuremberg Germany www.plusoptix.com Edition: 09/17/2018...
-
Page 2: Table Of Contents
Figure 1: “Measurement values” results page after an inconclusive measurement ....5 This manual is a supplementary short manual. For general information about your Plusoptix device, such as its intended use, basic handling, technical information, maintenance, service, and warranty information, please refer to the user manual that was delivered with your device. -
Page 3: Troubleshooting Guide
The “plusoptiX S16” cannot be switched on If the “plusoptiX S16” cannot be turned on, plug the power supply into a socket and check whether the green LED on the top of the power supply lights up. If not, use another socket. -
Page 4: Malfunctions When Using Touch Screen
3 Malfunctions when using touch screen a) Screen of “plusoptiX 12” switches off suddenly To save power, the “plusoptiX S12” automatically switches the screen off after some time. Touch the screen to activate it again. If the screen is not activated by touching it, the device has switched off automatically. -
Page 5: Troubleshooting Measuring Interruptions
Note: Causes of errors, which are recognised by the Plusoptix Vision Screener, are highlighted in red on the “Measurement values” results page and the “Camera image” results page. Check these two pages after every “measurement interruption”... - Page 6 In this example, the patient is too far away. Other than the eyes, half of the patient’s face can be see in the camera image. In this example, the patient is too close to the “plusoptiX S12”. Both eyes are close to the left and right edges of the camera image.
- Page 7 b) Patient does not focus on hte camera! this example, the patient is looking to the left of the camera (when seen from the patient). The red points in the gaze map highlight this line of vision. Cause: This error message is shown if the patient is not looking at the hexagon on the camera face.
- Page 8 d) Pupils too small! In this example, the pupils are smaller than 3.0 mm. Cause: This error message is shown if one or both pupil diameters are smaller than 3.0 Reason: The pupil reflexes will be underexposed if the pupils are too small. In this case, the measurement will be interrupted inconclusively.
- Page 9 Pupils not found! In this example, neither pupil can be seen completely on the camera image. Note: The error message “Pupils not found!” can have many other causes (e.g. scars on the cornea, media opacities, cataracts, keratoconus, retinal detachments, etc.). For this reason, the camera image must be checked in case of this error message.
- Page 10 Start the measurement again immediately by pressing the trigger twice. Position the child so that their knees and nose are facing the camera. Ask the child to lift their head or hold the Plusoptix Vision Screener lower down. Seite 10 von 11...
- Page 11 h) Corneal reflexes are too dark! In this example, too little infrared light is reflected from the retina. Cause: This error message is displayed if the corneal reflexes are too dark. Reason: The measurement is carried out with infrared light which is reflected from the retina.
