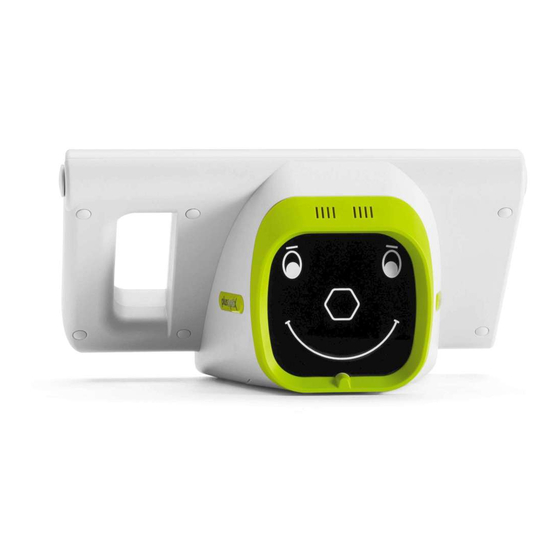

PLUSOPTIX A12C Short Manual
Binocular autorefractor.
documenting measurement results on paper
Hide thumbs
Also See for A12C:
- User manual (68 pages) ,
- Short manual (11 pages) ,
- Software upgrade (2 pages)
Related Manuals for PLUSOPTIX A12C
Summary of Contents for PLUSOPTIX A12C

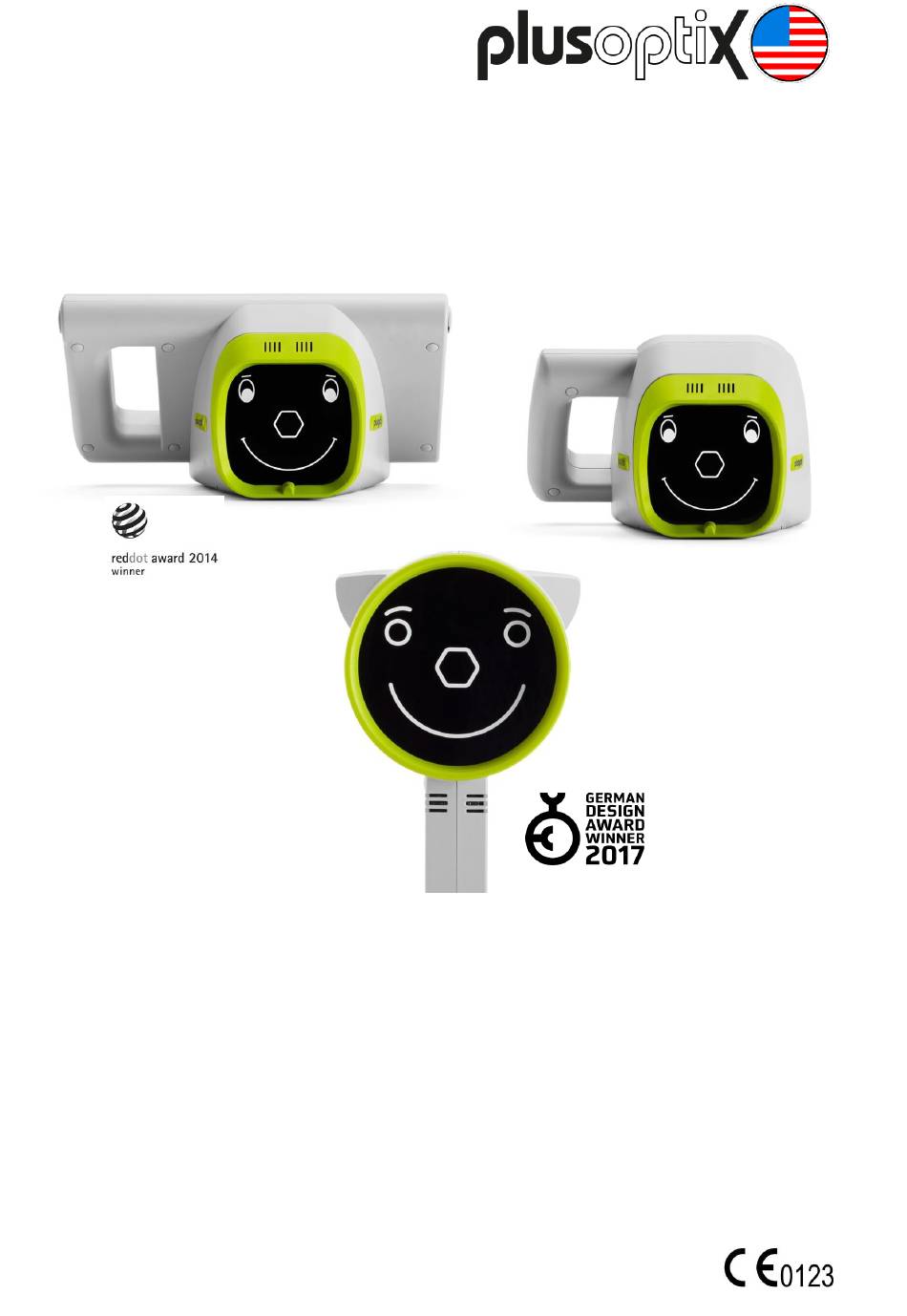

- Page 1 Binocular Autorefractor Short Manual 6 “Documenting measurement results on paper” Plusoptix GmbH Neumeyerstrasse 48 90411 Nuremberg Germany www.plusoptix.com Edition: 10/18/2018...
-
Page 2: Table Of Contents
Adding an individual infographic ................. 5 Printing measurement reports on a network printer ............ 6 Printing measurement reports on a mobile USB printer (only plusoptiX A12) ..... 9 Printing self-adhesive label with “plusoptiX P12” (optional accessory) ......10 List of figures Figure 1: Example of a measurement report (Letter-sized or DinA4) ........ -
Page 3: Documenting The Measurement Results - An Overview
More information about entering or retrieving patient data can be found in supplementary short manual 4. As an alternative to manual entry of the patient data, the plusoptiX A12C and A16 can also be connected for a full integration with your EMR system (see supplementary short manual 5 “Documenting measurement results electronically”). -
Page 4: Printing Measurement Reports
After confirming the patient data entry or the anonymous, consecutive patient ID (see supplementary short manual 4), a print job for label printing is sent via the infrared interface and a measurement report is saved to the inserted SD card (plusoptiX A12) or USB stick (plusoptiX A16) at the same time. -
Page 5: Adding An Individual Infographic
If the patient data has already been entered or retrieved before the measurement in the plusoptiX A12C or A16 model, the measurement report is automatically saved to a SD card as a PDF file at the end of every successful measurement. -
Page 6: Printing Measurement Reports On A Network Printer
Manual connection of the SD card or USB stick to a workplace computer Connect the SD card (plusoptiX 12) or USB stick (plusoptiX 16) to a workplace computer. The storage will be displayed as “removable medium” in your Windows Explorer or Apple Finder. -
Page 7: Figure 3: Manual Network Access
“plusoptiXconnect” is a freeware programme for automated connection and printing of measurement reports. The plusoptiX A12C (WLAN) or A16 (LAN and WLAN) must be connected to the network via LAN or WLAN, too. The measurement reports stored on the SD card or USB stick can now be portrayed and printed automatically on your workplace computer. -
Page 8: Figure 5: Manual Connection Via Hotspot On Your Smartphone
Figure 5: Manual connection via hotspot on your smartphone - Set up a hotspot on your smartphone - Check the network name and password of the hotspot - Connect the Plusoptix device with the established hotspot by selecting the network name and entering the password Device name Figure 6: Choose "hotspot"... -
Page 9: Printing Measurement Reports On A Mobile Usb Printer (Only Plusoptix A12)
To print a measurement report on the mobile USB printer “HP OfficeJet 200”, the mobile printer must be connected to the “plusoptiX A12” device via a USB cable. As soon as a measurement report is saved on the SD card, a print job is sent to the mobile USB printer “HP OfficeJet 200”... -
Page 10: Printing Self-Adhesive Label With "Plusoptix P12" (Optional Accessory)
(plusoptiX A12) or USB stick (plusoptiX A16) at the same time. To print a self-adhesive label, you just need to hold the camera towards the “plusoptiX P12” label printer to print a self-adhesive label. The “plusoptiX P12” prints self-adhesive labels on heat-sensitive paper (i.e.
