MVI56-PNPM ♦ ControlLogix Platform
Phantom Network Protocol Master Communication Module
Status Object (PNPInStat)
This object views the status of the module. The PNPInStat object shown below is
updated each time a read block is received by the processor. Use this data to
monitor the state of the module at a "real-time rate".
Name
PassCnt
Product
Rev
OP
Run
PrtErrs
CmdReq
CmdResp
CmdErr
Requests
Responses
ErrSent
ErrRec
BlkErrs
Read
Write
Parse
Event
Cmd
Err
Port1CurErr
Port1LErr
Port2CurErr
Port2LErr
Refer to Status Data for a complete listing of the data stored in this object.
2.1.4 User Data Objects

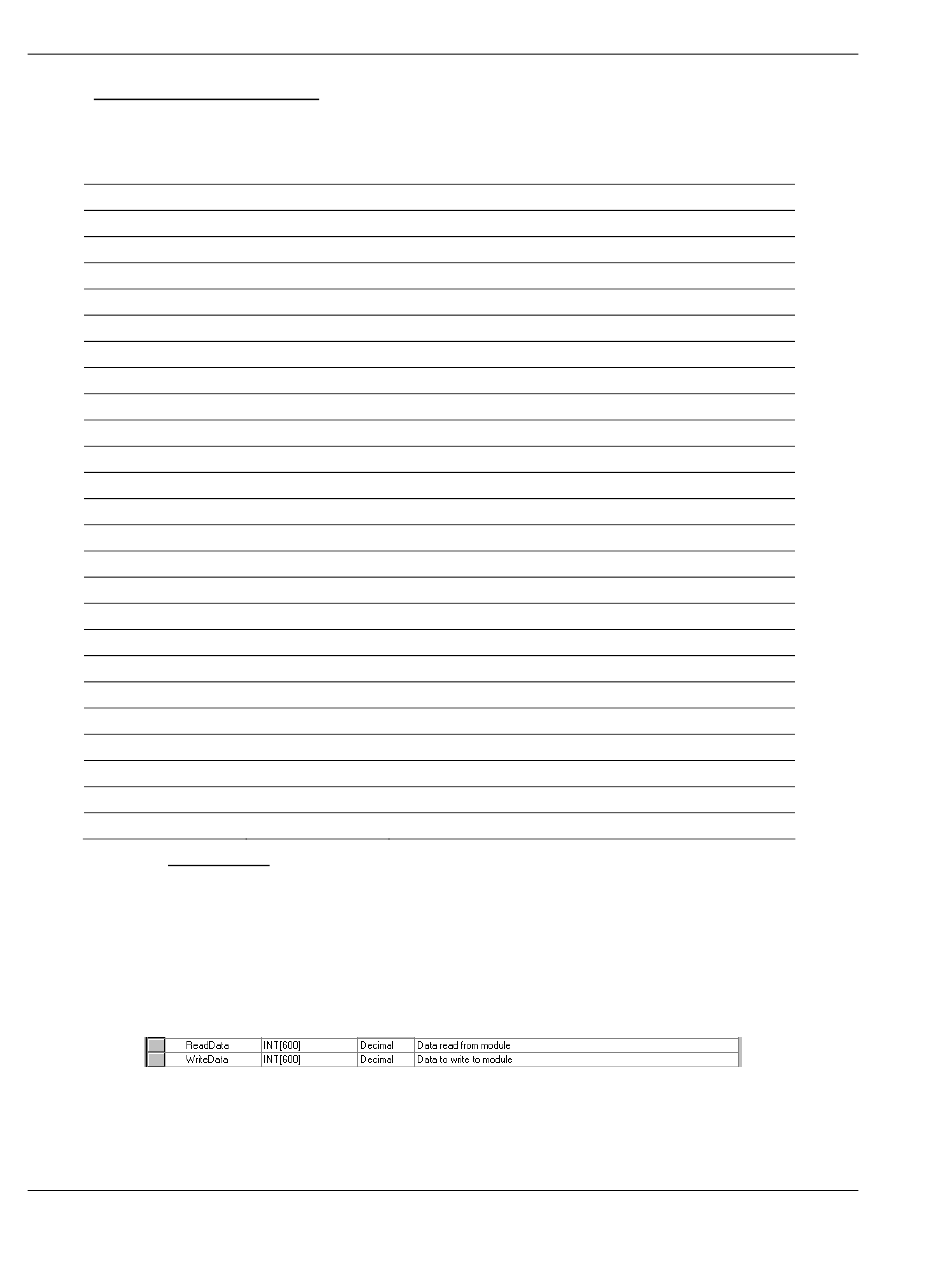

These objects hold data to be transferred between the processor and the MVI56-
PNP module. The user data is the read and write data transferred between the
processor and the module as "pages" of data up to 200 words long.
Page 28 of 91
Data Type
Description
INT
Program cycle counter
INT[2]
Product Name
INT[2]
Revision Level Number
INT[2]
Operating Level Number
INT[2]
Run Number
PNPPortErrors[2]
Port error statistics
INT
Total number of command list requests sent
INT
Total number of command list responses received
INT
Total number of command list errors
INT
Total number of requests for port
INT
Total number of responses for port
INT
Total number of errors sent
INT
Total number of errors received
PNPBlkStat
Block transfer statistics
INT
Total number of read block transfers
INT
Total number of write block transfers
INT
Total number of blocks parsed
INT
Total number of event blocks received
INT
Total number of command blocks received
INT
Total number of block transfer errors
INT
Current error/index for Port 1
INT
Last error/index for Port 1
INT
Current error/index for Port 2
INT
Last error/index for Port 2
Installing and Configuring the Module
ProSoft Technology, Inc.
January 2, 2008
