ProSoft Technology MVI56-PNPM User Manual page 66

MVI56-PNPM ♦ ControlLogix Platform
Phantom Network Protocol Master Communication Module

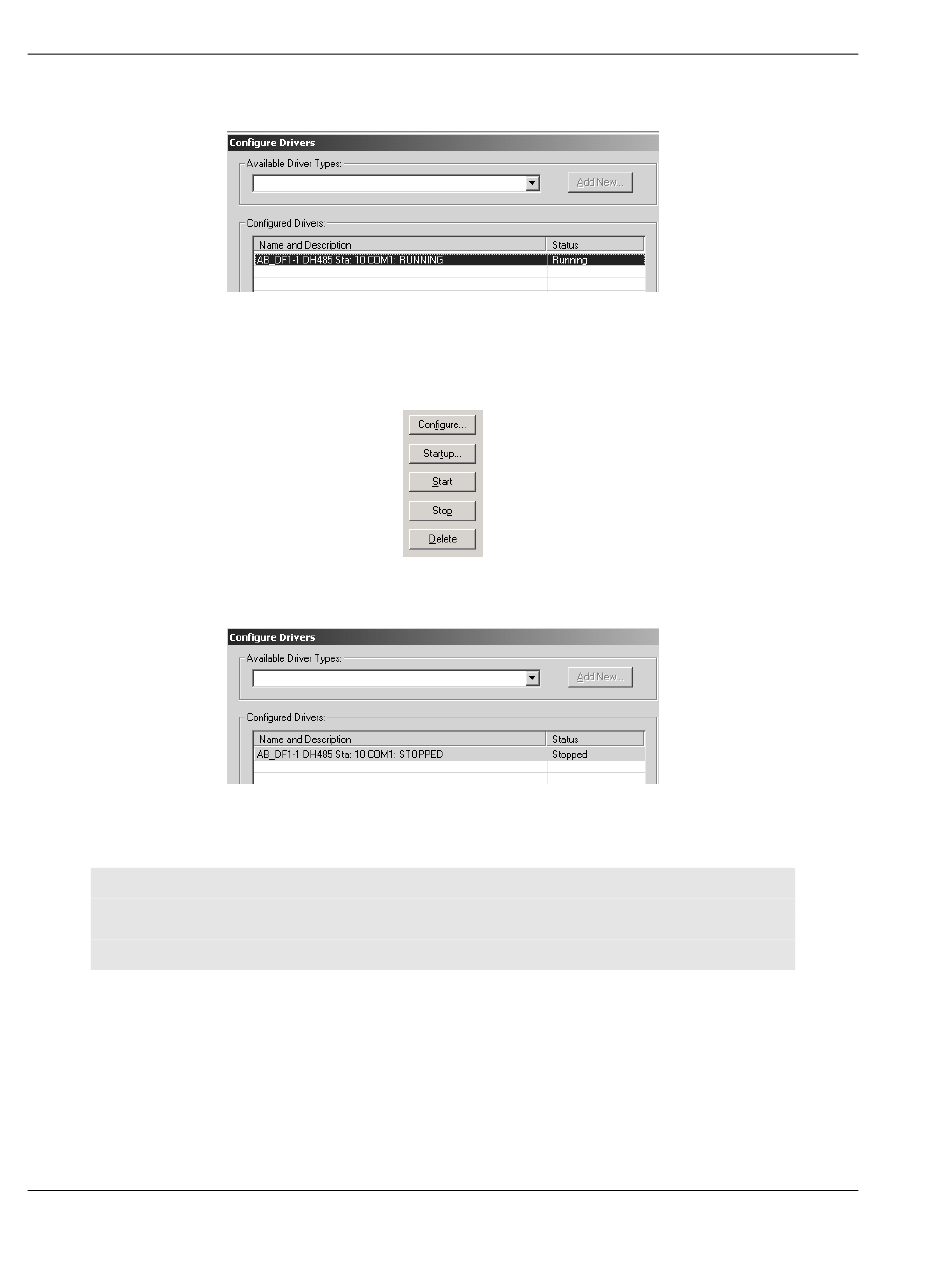

You may see something like this:
If you see the status as running, you will not be able to use this com port for
anything other than communication to the processor. To stop the driver press
the "Stop" on the side of the window:
After you have stopped the driver you will see the following:
5
Upon seeing this, you may now use that com port to connect to the debug
6
port of the module.
Note: You may need to shut down and restart your PC before it will allow you to stop
the driver (usually only on Windows NT machines). If you have followed all of the
above steps, and it will not stop the driver, then make sure you do not have RSLogix
open. If RSLogix is not open, and you still cannot stop the driver, then reboot your PC.
