MVI56-PNPM ♦ ControlLogix Platform
Phantom Network Protocol Master Communication Module
Code
250
251
252
253
254
255
Command List Entry Errors
Code
-41
-42
-43
-44
-45
-46
5.3

Cable Connections

The application ports on the MVI56-PNPM module support RS-232, RS-422, and
RS-485 interfaces. Please inspect the module to ensure that the jumpers are set
correctly to correspond with the type of interface you are using.
Note: When using RS-232 with radio modem applications, some radios or modems
require hardware handshaking (control and monitoring of modem signal lines). Enable
this in the configuration of the module by setting the UseCTS parameter to 1.

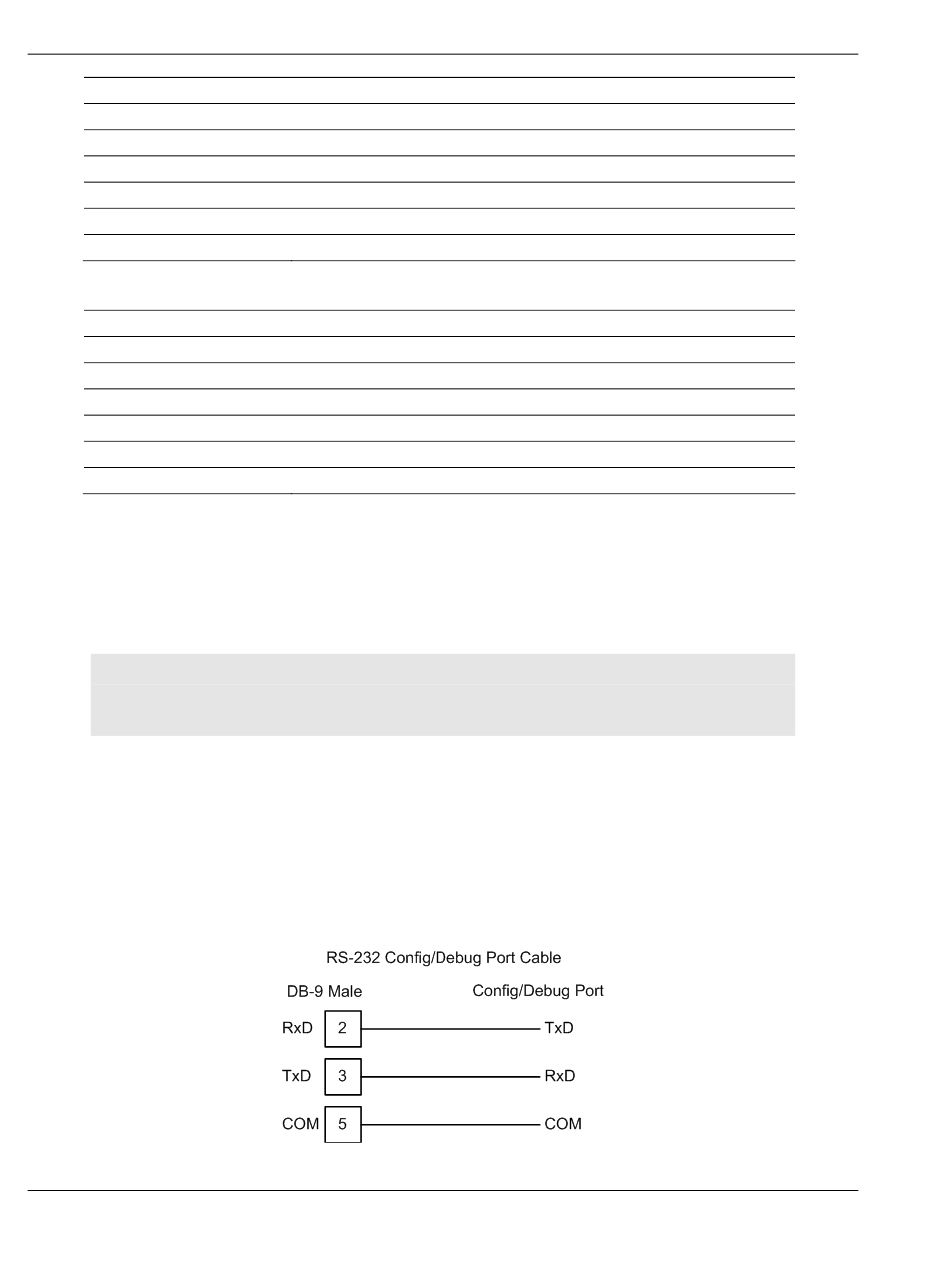

5.3.1 RS-232 Configuration/Debug Port

This port is physically an RJ45 connection. An RJ45 to DB-9 adapter cable is
included with the module. This port permits a PC based terminal emulation
program to view configuration and status data in the module and to control the
module. The cable for communications on this port is shown in the following
diagram:
Page 64 of 91
Description
Arg 3 invalid or out of range
Arg 2 invalid or out of range
Arg 1 invalid or out of range
RPC type byte not sent
Incorrect function code in response or not sent
Invalid CRC/LRC value in response
Description
Invalid enable code
Internal address > maximum address
Invalid node address (< 0 or > 32)
Count parameter set to 0
Invalid function code
Invalid swap code
Reference
