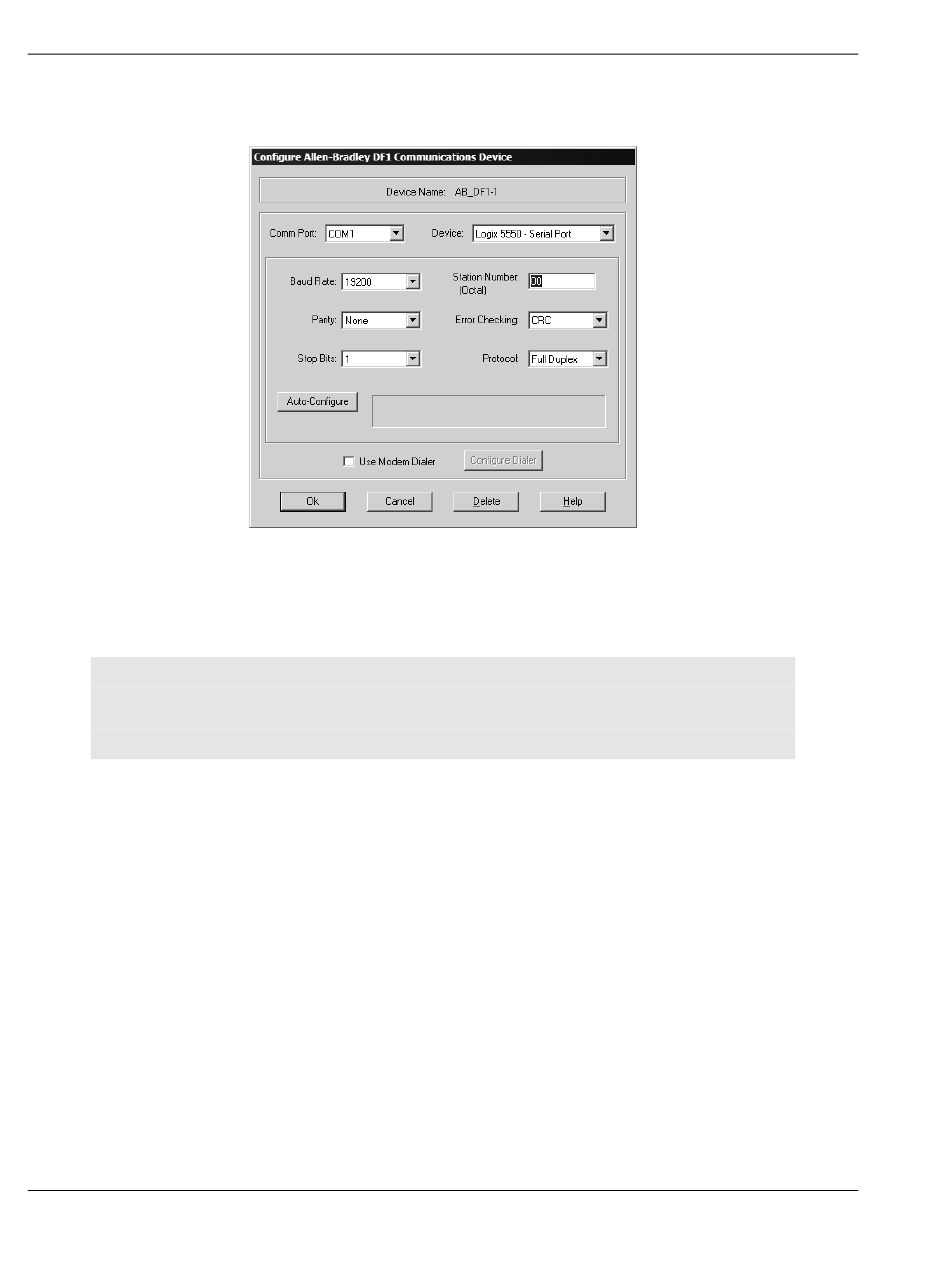

Click to select the driver, and then click Configure. This action opens the
3
Configure Allen-Bradley DF1 Communications Device dialog box.
Click the Auto-Configure button. RSLinx will attempt to configure your serial
4
port to work with the selected driver.
When you see the message "Auto Configuration Successful", click the OK
5
button to dismiss the dialog box.
Note: If the auto-configuration procedure fails, verify that the cables are connected
correctly between the processor and the serial port on your computer, and then try
again. If you are still unable to auto-configure the port, refer to your RSLinx
documentation for further troubleshooting steps.
