ProSoft Technology MVI56-PNPM User Manual page 22

MVI56-PNPM ♦ ControlLogix Platform
Phantom Network Protocol Master Communication Module
The next step in the module's setup is to define the User Defined Data Types to
be used with the module. Copy these data types from the example ladder logic if
you are not using the example. They are defined if you are starting from the

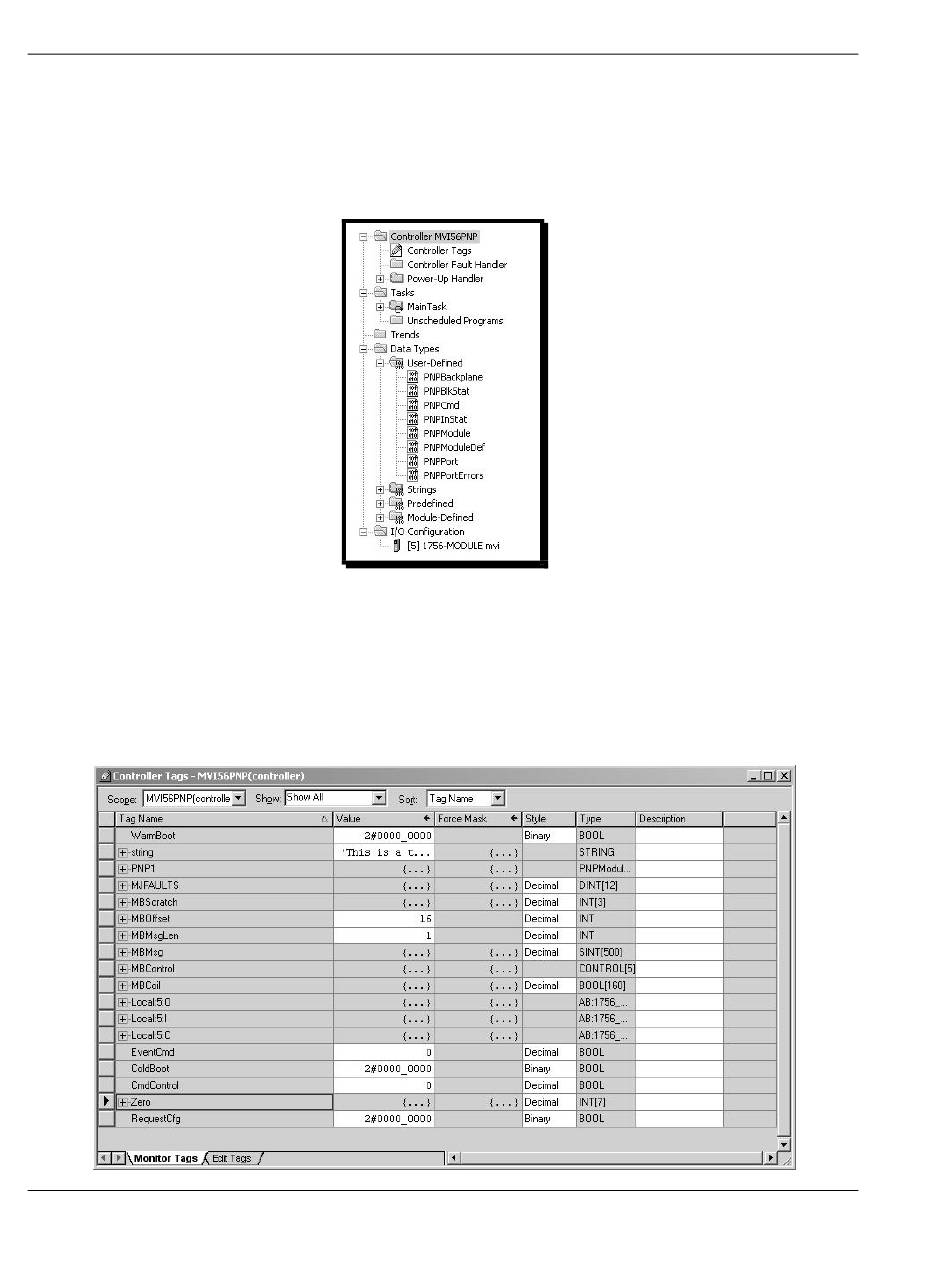

example ladder logic. The Controller Organization window should display the
User Defined Data Types shown in the following example:
The next step in module setup is to define the data to be used to interface with
the module and the ladder logic.
Open the Controller Tags Edit Tags dialog box and enter the values shown in the
following example. The MVI56-PNPM module is defined in the example as PNP.
You can set the tag name to any valid tag name you desire. If you are using the
example ladder logic, this step has already been performed.
