Db9 To Rj45 Adaptor (Cable 14); Mvi56-Pnpm Database Definition - ProSoft Technology MVI56-PNPM User Manual

MVI56-PNPM ♦ ControlLogix Platform
Phantom Network Protocol Master Communication Module

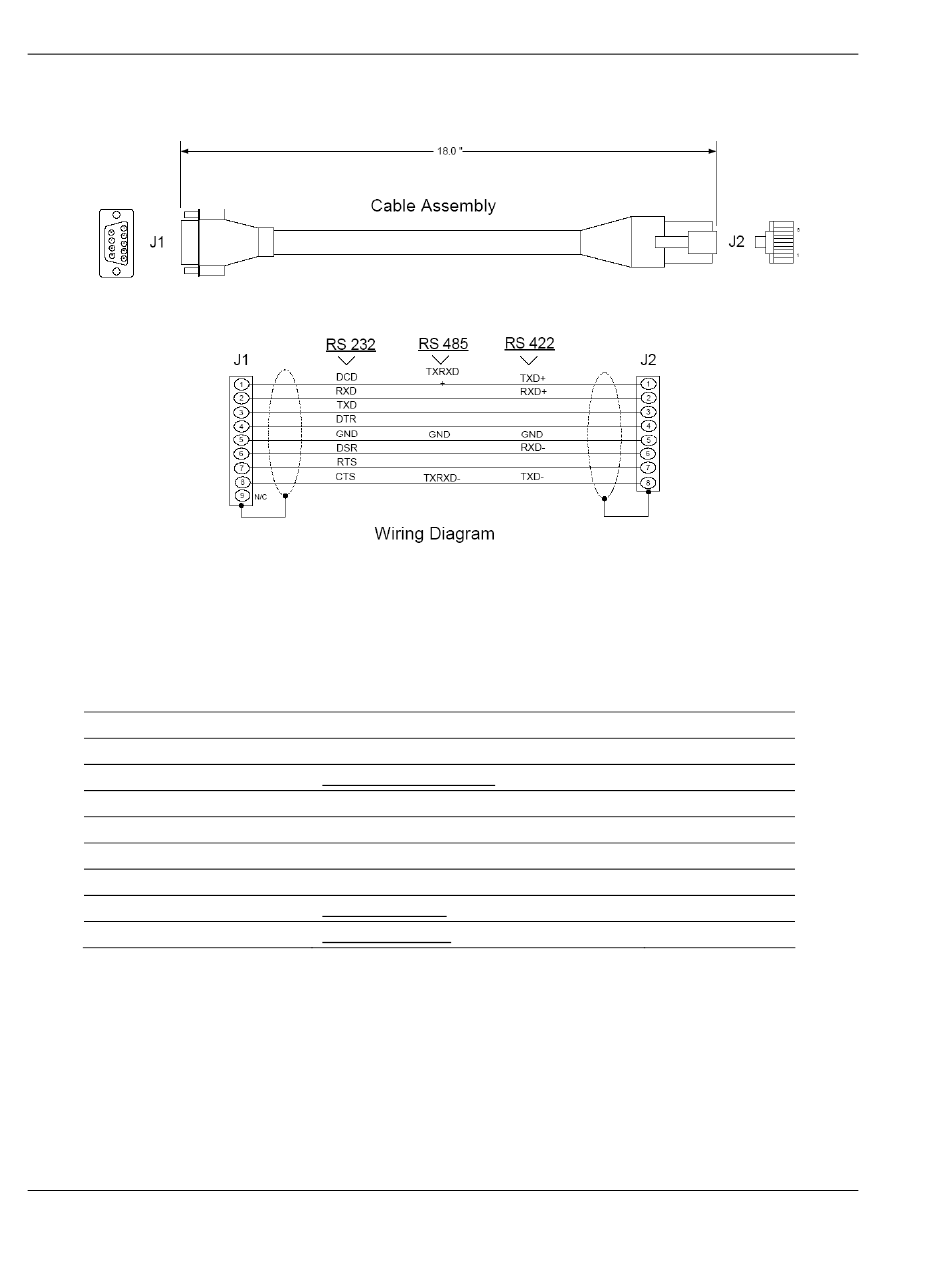

5.3.5 DB9 to RJ45 Adaptor (Cable 14)

5.4

MVI56-PNPM Database Definition

This section contains a listing of the internal database of the MVI56-PNPM
module. This information can be used to interface other devices to the data
contained in the module.
Register Range
0 to 4999
5000 to 5005
5010 to 5023
5030 to 5043
5050 to 5849
5860 to 6659
6670 to 6703
6800 to 6999
The User Data area holds data collected from other nodes on the network
(master read commands) or data received from the processor (write blocks).
Additionally, this data area is used as a data source for the processor (read
blocks) or other nodes on the network (write commands).
Page 70 of 91
Content
User Data
Backplane Configuration (page 72)
Port 1 Setup
Port 2 Setup
Port 1 Commands
Port 2 Commands
Misc. Status Data
Command Control (page 58)
Reference
Size
5000
6
14
14
800
800
33
200
ProSoft Technology, Inc.
January 2, 2008
