2.1.3 Module Data Object (PNPModuleDef)

All data related to the MVI56-PNPM is stored in a user defined data type. An
instance of the data type is required before the module can be used. This is done
by declaring a variable of the data type in the Controller Tags Edit Tags dialog

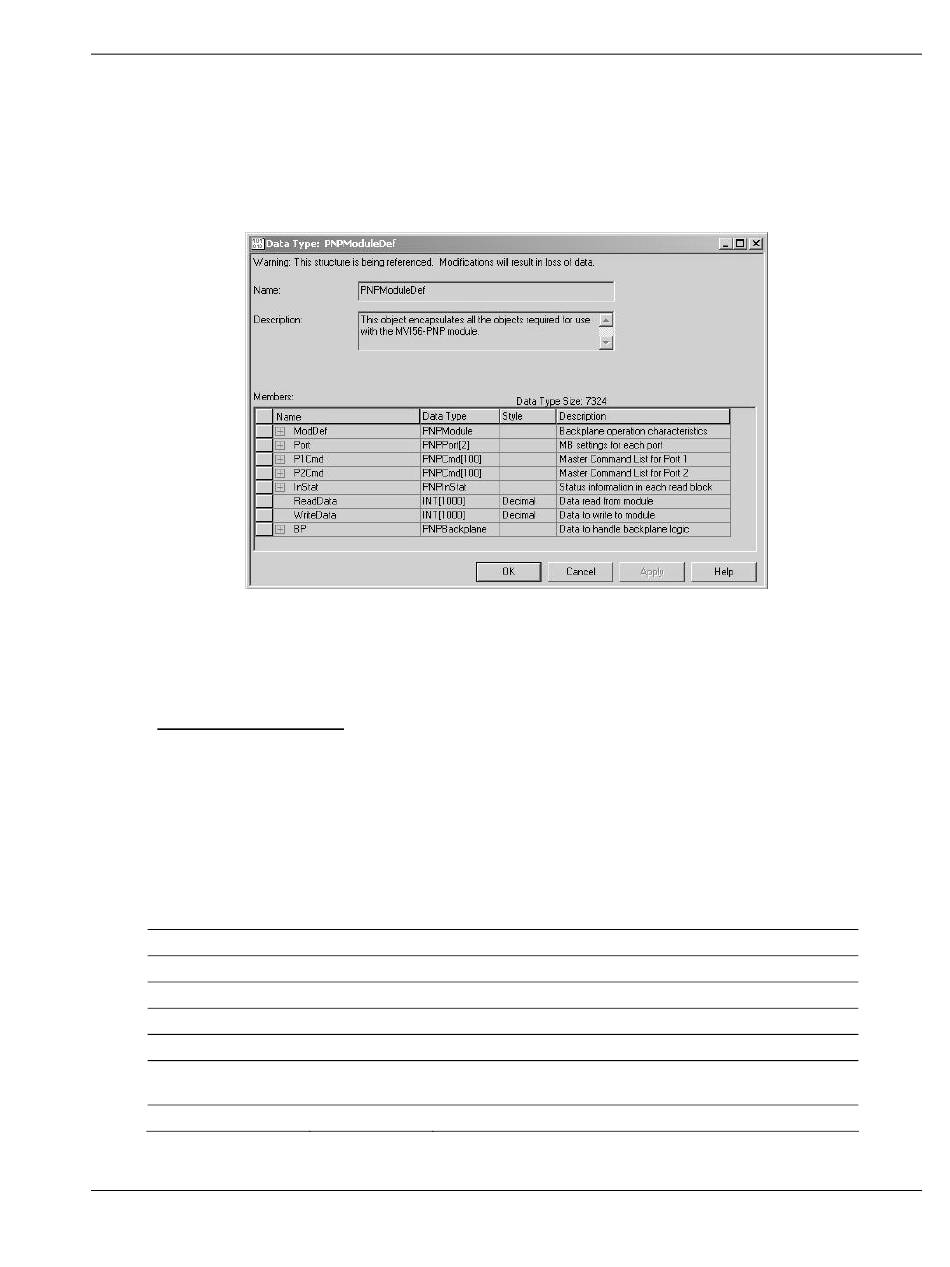

box. The structure of the object is displayed in the following figure.
This object contains objects that define the configuration, user data, status and
command control data related to the module. Each of these object types is
discussed in the following topics of the document.
Configuration Objects
Configuration of the module is performed by filling in the values in the module
object defined in the Controller Tags Edit Tags dialog. Each parameter required
by the module has a defined location in the object. The following tables and
topics describe the parameters set in the dialog box. You can view these tables
by opening the data type under the User Defined Data Type option in the
Controller Organization window.
Data Transfer Parameters (PNPModule)
Name
WriteStartReg
WriteRegCnt
ReadStartReg
ReadRegCnt
BPFail
ErrStatPtr
ProSoft Technology, Inc.
January 2, 2008
Phantom Network Protocol Master Communication Module
Data Type Description
INT Start reg to transfer from PLC to module
INT Number of registers to write from PLC
INT Start reg to transfer from module to PLC
INT Number of registers to transfer from module
INT Determines module operation if BP fails
0=continue,>0=number of retries before comm shutdown
INT Internal DB start register for status data (-1=Ignore)
