1.6.1 Configuring RSLinx

If RSLogix is unable to establish communication with the processor,
follow these steps:
Open RSLinx.
1

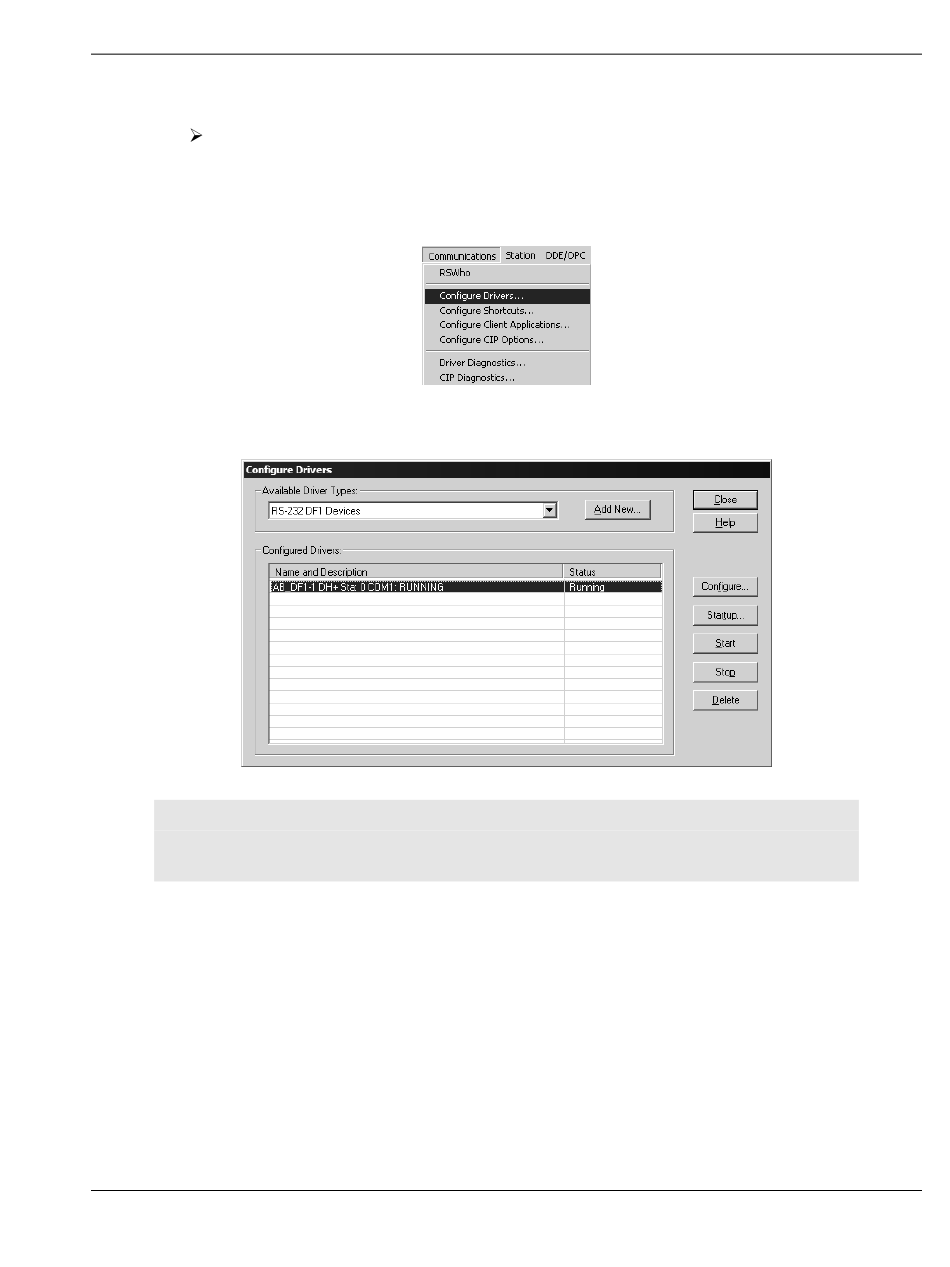

Open the Communications menu, and choose Configure Drivers.
2
This action opens the Configure Drivers dialog box.
Note: If the list of configured drivers is blank, you must first choose and configure a
driver from the Available Driver Types list. The recommended driver type to choose for
serial communication with the processor is "RS-232 DF1 Devices".
