ValueCA N 3 Vehicle Side Connections
Main
A pplies to
ValueCA N
The ValueCAN 3 has a standard 9 pin CAN Connection. This pin-out is in Table 1.
Note that the ValueCAN 3 connector pin-out is also diagram m ed on the top stick er of the device.
Pin Name
1 Trigger Pin
2 CAN 1 Low
3 GND
4 CAN 2 Low
5 GND (Shield)
6 GND
7 CAN 1 High
8 CAN 2 High
9 VBatt
Vehicle interface connectors can be purchased for the ValueCAN 3. For a com plete list please see
Pin OBDII Pin ValueCA N 3 Name
6 7 CAN 1 High
14 2 CAN 1 Low
3 8 CAN 2 High
11 4 CAN 2 Low
16 9 VBatt
5 3 GND
4 5 GND (Shield)
Pin Vehicle Pin ValueCA N 3 Name
1/A 3 Battery (-) Ground
2/B 9 Battery (+)
3/C 7 CAN_H
4/D 2 CAN L
5/E 5 CAN Sheld

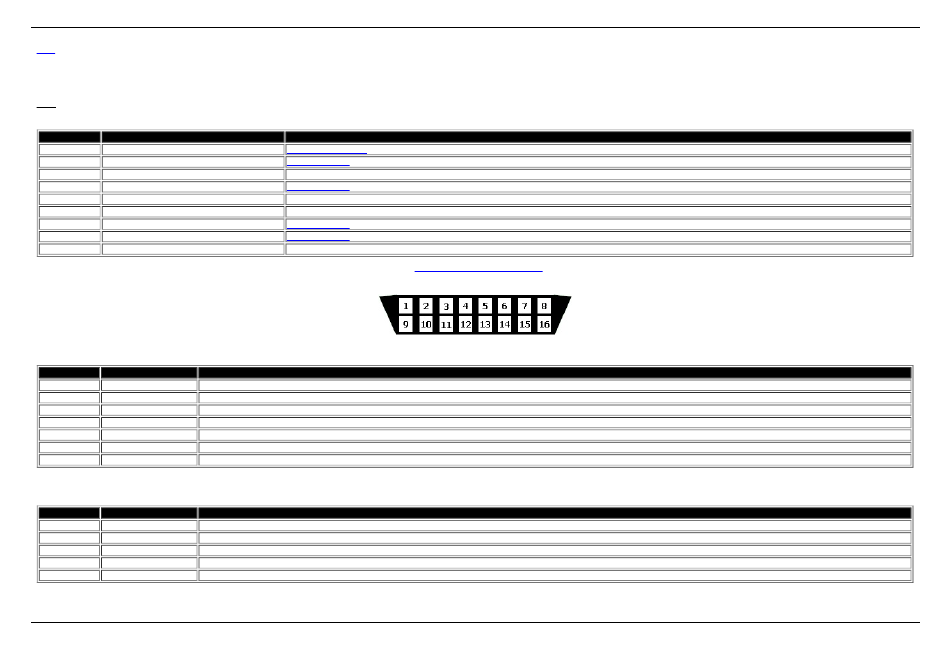

Table 1 - The ValueCA N 3 Connector Pin Descriptions
Description
Miscellaneous Signal 1
High Speed CAN Low
Electrical Ground
High Speed CAN Low
Shield
Electrical Ground
High Speed CAN High
High Speed CAN High
Electrical Positive Supply 6.5-40 VDC
Intrepid Control System s
Figure 1 - The OBD-II / J1962 Connector Vehicle End View
Table 2 - The ValueCA N 3 OBDII Connector Pin Description
Table 3 - The ValueCA N 3 J1939-RP1210 Connector Pin Description
Figure 2 - The J1939-RP1210 Connector Vehicle End View
website. The tables below describe two of the com m only used cables for the ValueCAN 3.
