LED - neoVI
Main
A pplies to
neoVI Blue
The behavior of the neoVI LED is program m able. The LED can be setup to activate on network activity, display the state of a MISC pin, or change state according to a script. You can setup this behavior in the neoVI Ex plorer.
The LED O perating Mode selection (figure 1 : bubble 1) sets the behavior. The LED settings are listed in Table 1 below.
For settings that cause the LED to flash the neoVI provides two additional settings. The first setting is the flash type. You can either have the LED turn green and then turn off or flash green and resum e red flashing. The second
setting is the flash duration. This is the tim e the green elem ent is active for each flash.
The LED can also be controlled through the neoVI Device virtual network
LED Operating Mode
Standard Mode
Display MISC3
Display MISC4
Display MISC5
Display MISC6
Display MISC7
neoVI Documentation - (C) Copyright 2000-2019 Intrepid Control Systems, Inc.
Last Update: Wednesday, July 15, 2009
.

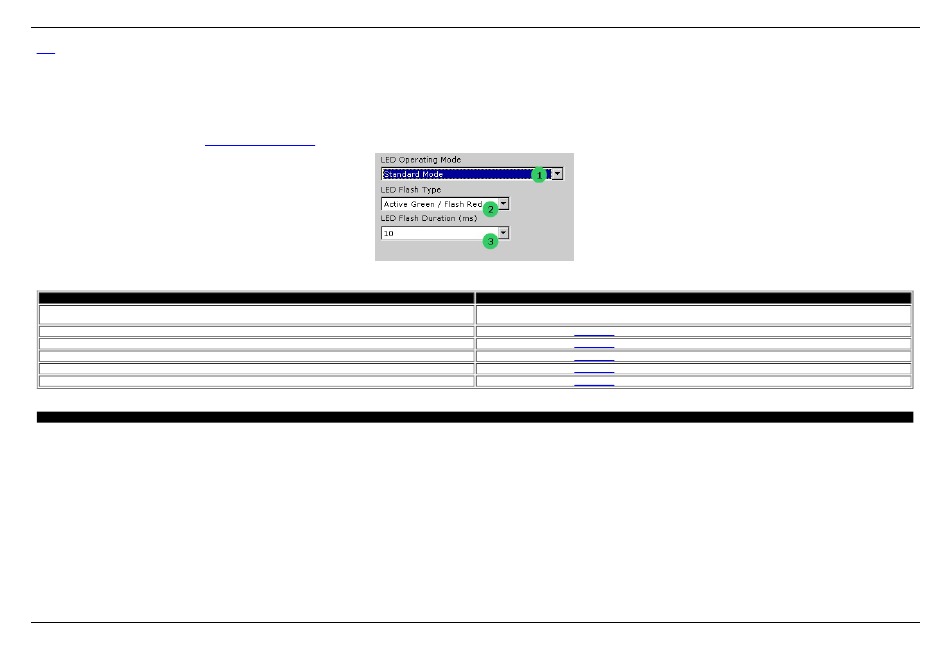

Figure 1 - How the neoVI LED works can be set in neoVI explorer.
Table 1 - The LED Operating Modes
Description
The standard LED setting. This setting will cause the LED to toggle between Red and off every 104 m s. You can
also control the LED with scripts using this setting.
Displays the state of the
Displays the state of the
Displays the state of the
Displays the state of the
Displays the state of the
MISC3 pin. It will display green if the pin is on otherwise it will be off.
MISC4 pin. It will display green if the pin is on otherwise it will be off.
MISC5 pin. It will display green if the pin is on otherwise it will be off.
MISC6 pin. It will display green if the pin is on otherwise it will be off.
MISC7 pin. It will display green if the pin is on otherwise it will be off.
