Error Checking

UA RT Error Checking - neoVI
Main
A pplies to
neoVI Blue, neoVI Red, neoVI FIRE, and neoVI Yellow
The ISO 9141 and Keyword 2000 protocols use a check sum field to protect the data that is transm itted. neoVI allows you to disable the autom atic addition of this check sum to transm itted m essages and the check ing of it on
the reception of m essages. This m aybe useful for a UART protocol that doesn't use the check sum or calculates it differently. A parity setting is also available if your network requires this.

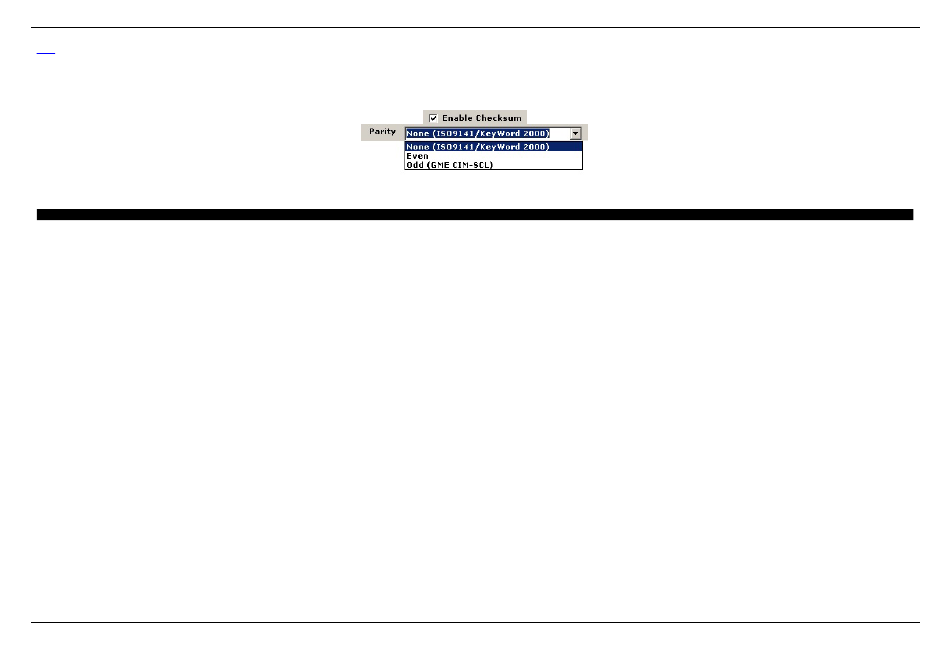

Figure 1 - The standard checksum for ISO communications can be disabled. Parity can also be added if needed.
