LED Blinking patterns
Main
A pplies to
neoVI Red, neoVI FIRE, and neoVI
Yellow
neoVI has 2 LEDs used to report the status of the device. The LEDs on the neoVI can also be control through a script, Vehicle Spy, or custom application. The table below ex plains and shows the com m on blink ing patterns the
device can ex hibit.
Name
Powered, not running CoreMini
PC Mode
CoreMini Mode
VehicleScape Standalone Logging
VehicleScape Standalone Logging, Post trigger
Boot loader
neoVI Documentation - (C) Copyright 2000-2019 Intrepid Control Systems, Inc.
Pattern
Description
Flashing Green
This blinking sequence occurs when the device is powered and is not running a CoreMini Script.
When Vehicle Spy 3 or other PC based program is connected to the neoVI, the LEDs will alternate Red, Green. Keep in mind that scripts running in Vehicle
Flashing Red, Green
Spy 3 can change the blinking pattern of the device.
This is the default blinking pattern when running a CoreMini Script. Keep in mind that the blinking pattern can be changed by VehicleScape Logging or in a
Flashing Red
function block.
VehicleScape Standalone loggings changes the blinking pattern of the LEDs. The Red LED will flash at a constant rate while the Green will blink with data
Flashing Red. Green blinking.
being saved to Micro SD card.
Flashing Red, quickly blinking
This pattern appears when working with pre/post triggers in VehicleScape Standalone loggings. The Red LED will flash at a constant rate while the Green will
Green
blink at a fast rate with data being saved to Micro SD card for the post collection.
A pattern of Green, Green, Green, Red denotes boot loader mode. This mode is corrected by connecting to Vehicle Spy 3 or an application that can use the
3x Green, Red
hardware. This is a normal blinking pattern.

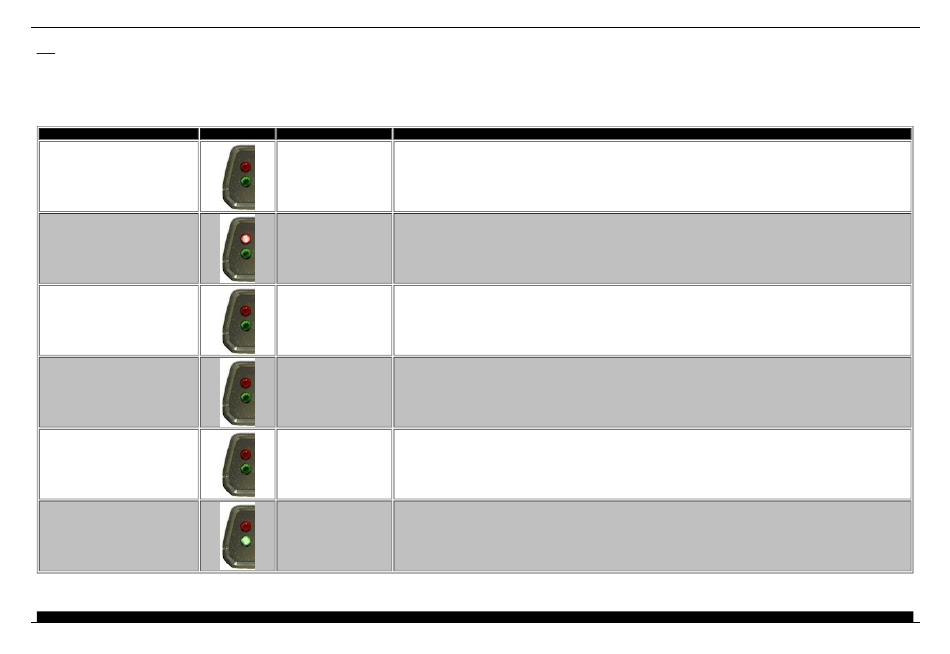

Table 1 - LED Blinking for neoVI FIRE, neoVI Red, and neoVI
Yellow
LED Blinking
