APPENDICES

Appendix 1
Sensor head

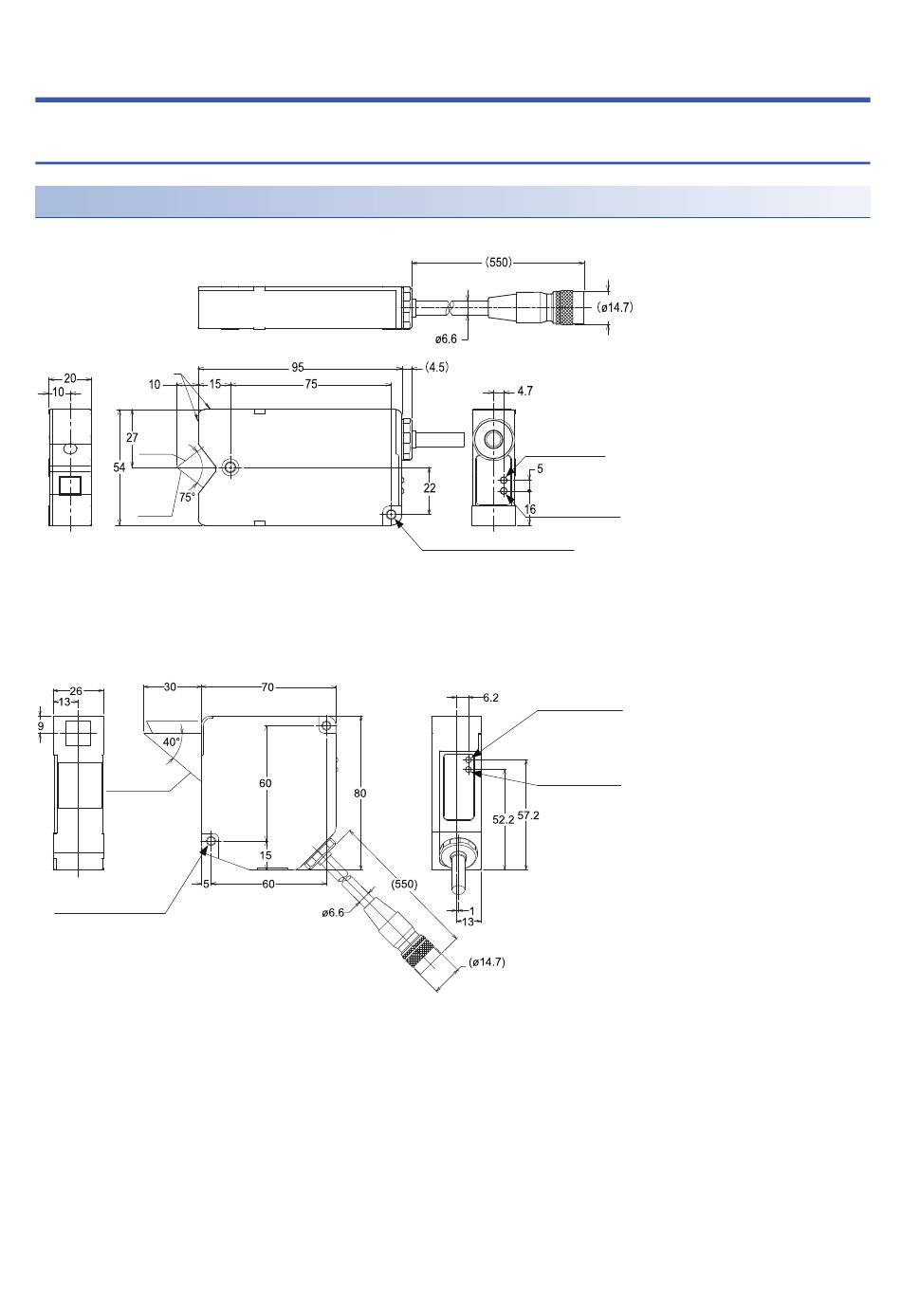

■10mm type (MH11H01A0SNA, MH11H01A0LNA)
Reference
surface
(Measurement center
distance)
Light
emission
axis
Light
reception
axis
(Unit: mm)
■30mm type (MH11H03B0SNA, MH11H03B0LNA)
• Diffuse reflection installation
(Measurement center distance)
Light
emission axis
Light
reception
axis
2-M5 mounting hole
Depth:10
(same as the hole at
the diagonal position)
(Unit: mm)
APPX

Appendix 1 External Dimensions

External Dimensions
2-M5 mounting hole, Depth:8
(same as the hole at the diagonal position)
Laser emission
indicator
(green)
Measurement
range indicator
(yellow)
Laser emission
indicator
(green)
Measurement
range indicator
(yellow)
