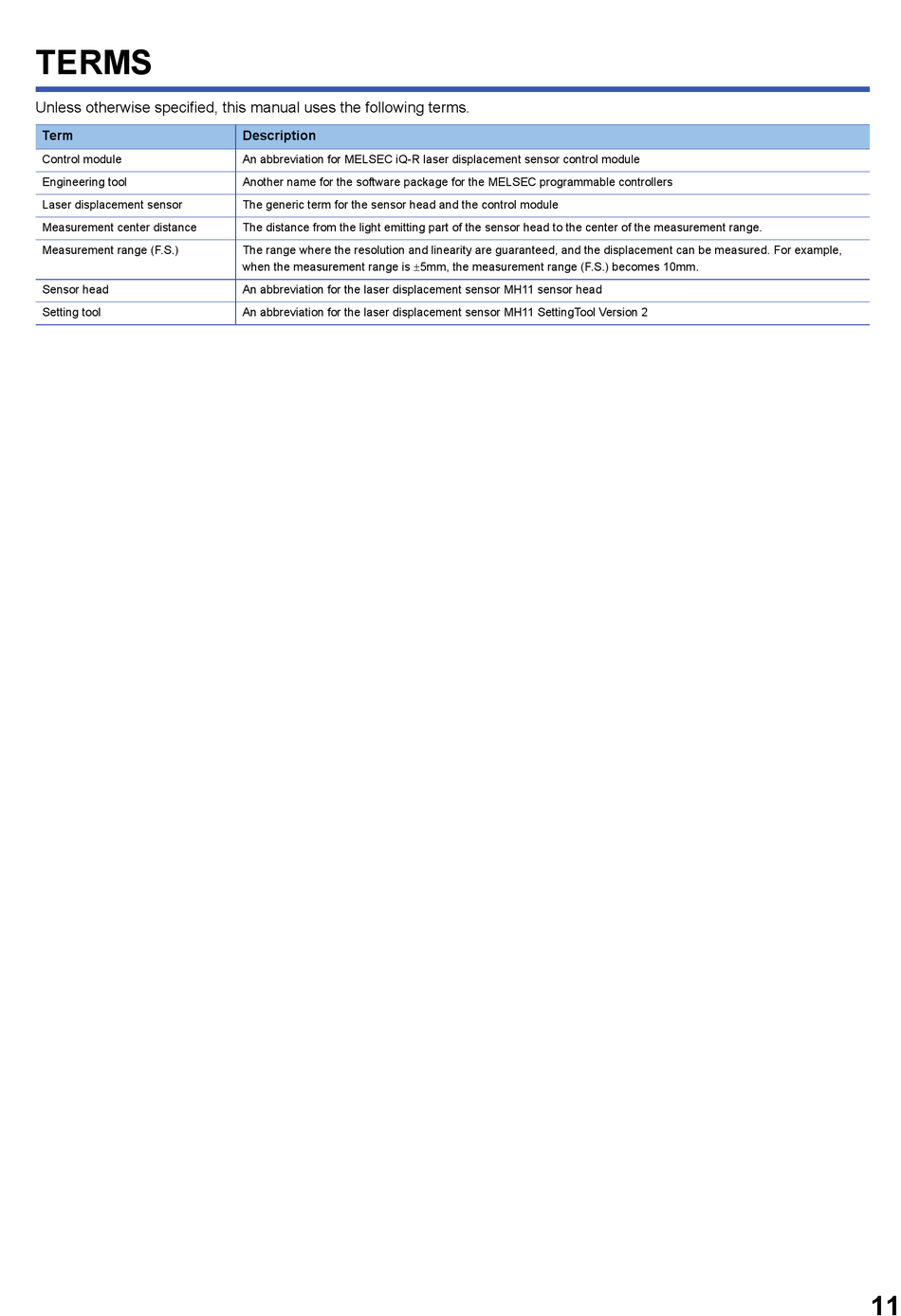

TERMS

Unless otherwise specified, this manual uses the following terms.
Term
Control module
Engineering tool
Laser displacement sensor
Measurement center distance
Measurement range (F.S.)
Sensor head
Setting tool
Description
An abbreviation for MELSEC iQ-R laser displacement sensor control module
Another name for the software package for the MELSEC programmable controllers
The generic term for the sensor head and the control module
The distance from the light emitting part of the sensor head to the center of the measurement range.
The range where the resolution and linearity are guaranteed, and the displacement can be measured. For example,
when the measurement range is 5mm, the measurement range (F.S.) becomes 10mm.
An abbreviation for the laser displacement sensor MH11 sensor head
An abbreviation for the laser displacement sensor MH11 SettingTool Version 2
11
