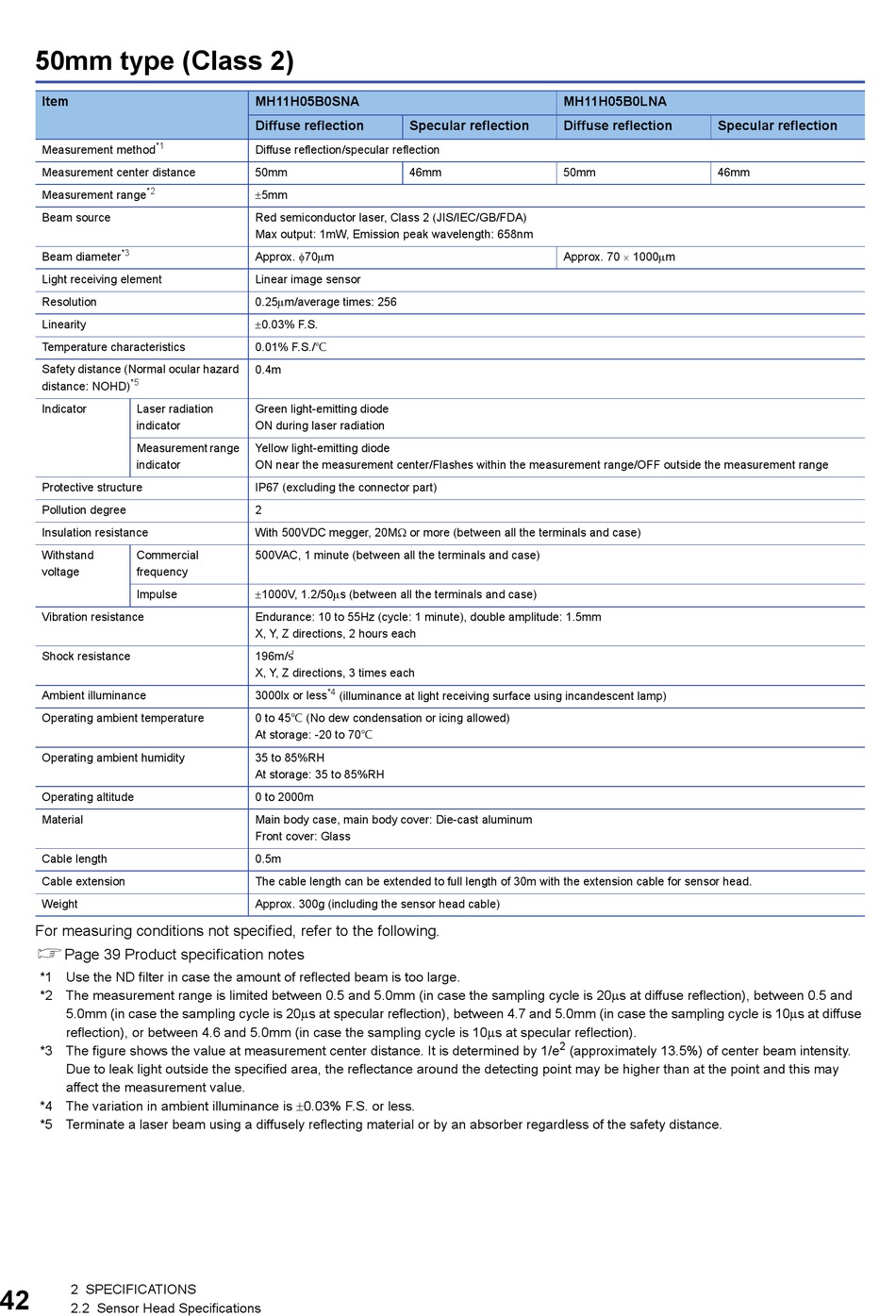

50mm type (Class 2)

Item
*1
Measurement method
Measurement center distance
*2
Measurement range
Beam source
*3
Beam diameter
Light receiving element
Resolution
Linearity
Temperature characteristics
Safety distance (Normal ocular hazard
*5
distance: NOHD)
Indicator
Laser radiation
indicator
Measurement range
indicator
Protective structure
Pollution degree
Insulation resistance
Withstand
Commercial
voltage
frequency
Impulse
Vibration resistance
Shock resistance
Ambient illuminance
Operating ambient temperature
Operating ambient humidity
Operating altitude
Material
Cable length
Cable extension
Weight
For measuring conditions not specified, refer to the following.
Page 39 Product specification notes
*1 Use the ND filter in case the amount of reflected beam is too large.
*2 The measurement range is limited between 0.5 and 5.0mm (in case the sampling cycle is 20s at diffuse reflection), between 0.5 and
5.0mm (in case the sampling cycle is 20s at specular reflection), between 4.7 and 5.0mm (in case the sampling cycle is 10s at diffuse
reflection), or between 4.6 and 5.0mm (in case the sampling cycle is 10s at specular reflection).
*3 The figure shows the value at measurement center distance. It is determined by 1/e
Due to leak light outside the specified area, the reflectance around the detecting point may be higher than at the point and this may
affect the measurement value.
*4 The variation in ambient illuminance is 0.03% F.S. or less.
*5 Terminate a laser beam using a diffusely reflecting material or by an absorber regardless of the safety distance.
2 SPECIFICATIONS
42
2.2 Sensor Head Specifications
MH11H05B0SNA
Diffuse reflection
Specular reflection
Diffuse reflection/specular reflection
50mm
46mm
5mm
Red semiconductor laser, Class 2 (JIS/IEC/GB/FDA)
Max output: 1mW, Emission peak wavelength: 658nm
Approx. 70m
Linear image sensor
0.25m/average times: 256
0.03% F.S.
0.01% F.S./
0.4m
Green light-emitting diode
ON during laser radiation
Yellow light-emitting diode
ON near the measurement center/Flashes within the measurement range/OFF outside the measurement range
IP67 (excluding the connector part)
2
With 500VDC megger, 20M or more (between all the terminals and case)
500VAC, 1 minute (between all the terminals and case)
1000V, 1.2/50s (between all the terminals and case)
Endurance: 10 to 55Hz (cycle: 1 minute), double amplitude: 1.5mm
X, Y, Z directions, 2 hours each
196m/
X, Y, Z directions, 3 times each
*4
3000lx or less
(illuminance at light receiving surface using incandescent lamp)
0 to 45 (No dew condensation or icing allowed)
At storage: -20 to 70
35 to 85%RH
At storage: 35 to 85%RH
0 to 2000m
Main body case, main body cover: Die-cast aluminum
Front cover: Glass
0.5m
The cable length can be extended to full length of 30m with the extension cable for sensor head.
Approx. 300g (including the sensor head cable)
MH11H05B0LNA
Diffuse reflection
Specular reflection
50mm
46mm
Approx. 70  1000m
2
(approximately 13.5%) of center beam intensity.
