1.5

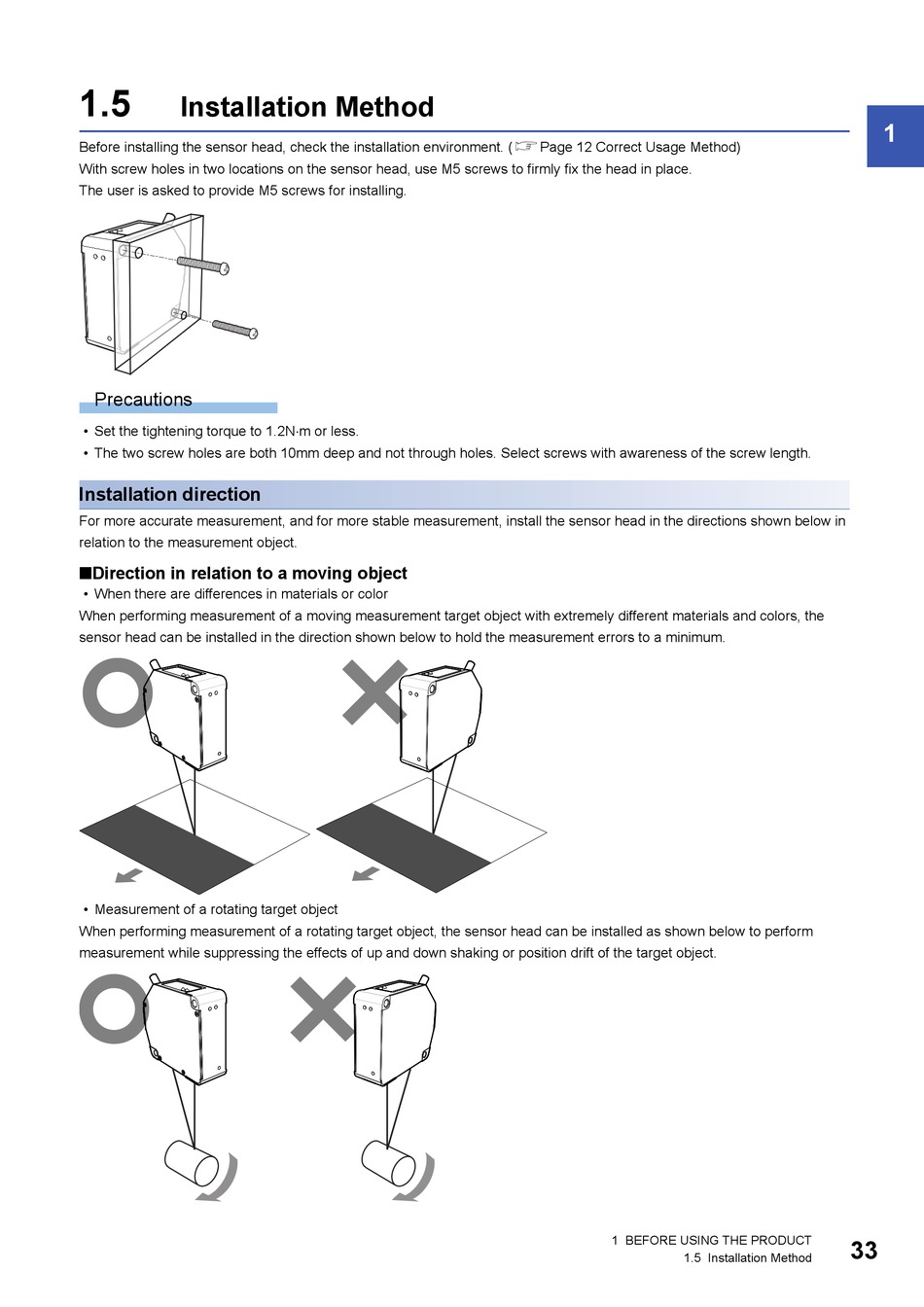

Installation Method

Before installing the sensor head, check the installation environment. (Page 12 Correct Usage Method)
With screw holes in two locations on the sensor head, use M5 screws to firmly fix the head in place.
The user is asked to provide M5 screws for installing.
Precautions
• Set the tightening torque to 1.2Nm or less.
• The two screw holes are both 10mm deep and not through holes. Select screws with awareness of the screw length.
Installation direction
For more accurate measurement, and for more stable measurement, install the sensor head in the directions shown below in
relation to the measurement object.
■Direction in relation to a moving object
• When there are differences in materials or color
When performing measurement of a moving measurement target object with extremely different materials and colors, the
sensor head can be installed in the direction shown below to hold the measurement errors to a minimum.
• Measurement of a rotating target object
When performing measurement of a rotating target object, the sensor head can be installed as shown below to perform
measurement while suppressing the effects of up and down shaking or position drift of the target object.
1 BEFORE USING THE PRODUCT
1.5 Installation Method
1
33
