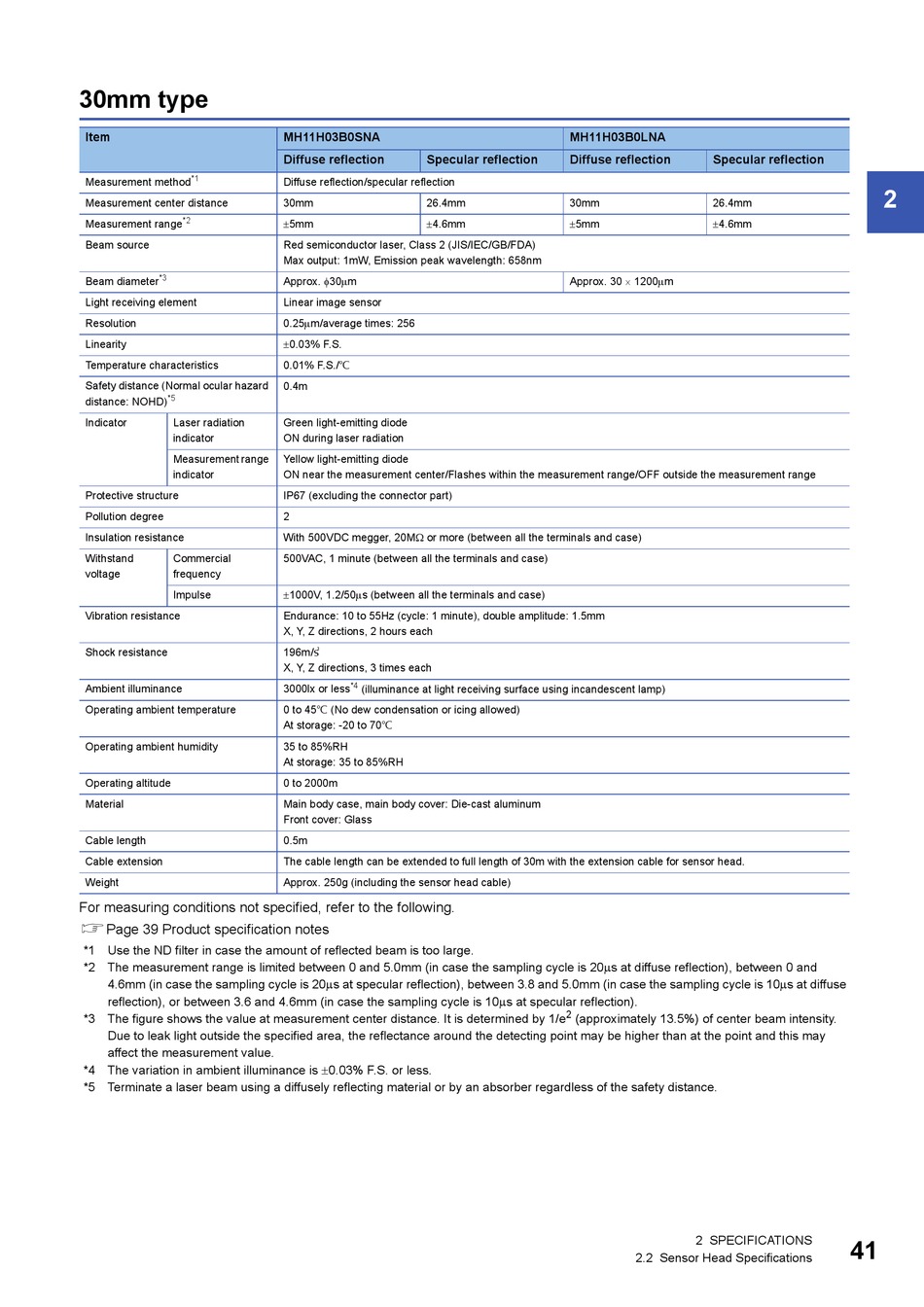

Measurement center distance
Light receiving element
Safety distance (Normal ocular hazard
Operating ambient temperature
Operating ambient humidity
For measuring conditions not specified, refer to the following.
Page 39 Product specification notes
*1 Use the ND filter in case the amount of reflected beam is too large.
*2 The measurement range is limited between 0 and 5.0mm (in case the sampling cycle is 20s at diffuse reflection), between 0 and
4.6mm (in case the sampling cycle is 20s at specular reflection), between 3.8 and 5.0mm (in case the sampling cycle is 10s at diffuse
reflection), or between 3.6 and 4.6mm (in case the sampling cycle is 10s at specular reflection).
*3 The figure shows the value at measurement center distance. It is determined by 1/e
Due to leak light outside the specified area, the reflectance around the detecting point may be higher than at the point and this may
affect the measurement value.
*4 The variation in ambient illuminance is 0.03% F.S. or less.
*5 Terminate a laser beam using a diffusely reflecting material or by an absorber regardless of the safety distance.
Diffuse reflection/specular reflection
Red semiconductor laser, Class 2 (JIS/IEC/GB/FDA)
Max output: 1mW, Emission peak wavelength: 658nm
Linear image sensor
0.25m/average times: 256
Green light-emitting diode
ON during laser radiation
Yellow light-emitting diode
ON near the measurement center/Flashes within the measurement range/OFF outside the measurement range
IP67 (excluding the connector part)
With 500VDC megger, 20M or more (between all the terminals and case)
500VAC, 1 minute (between all the terminals and case)
1000V, 1.2/50s (between all the terminals and case)
Endurance: 10 to 55Hz (cycle: 1 minute), double amplitude: 1.5mm
X, Y, Z directions, 2 hours each
X, Y, Z directions, 3 times each
3000lx or less
(illuminance at light receiving surface using incandescent lamp)
0 to 45 (No dew condensation or icing allowed)
At storage: -20 to 70
35 to 85%RH
At storage: 35 to 85%RH
0 to 2000m
Main body case, main body cover: Die-cast aluminum
Front cover: Glass
The cable length can be extended to full length of 30m with the extension cable for sensor head.
Approx. 250g (including the sensor head cable)
Approx. 30 1200m
(approximately 13.5%) of center beam intensity.
2.2 Sensor Head Specifications
