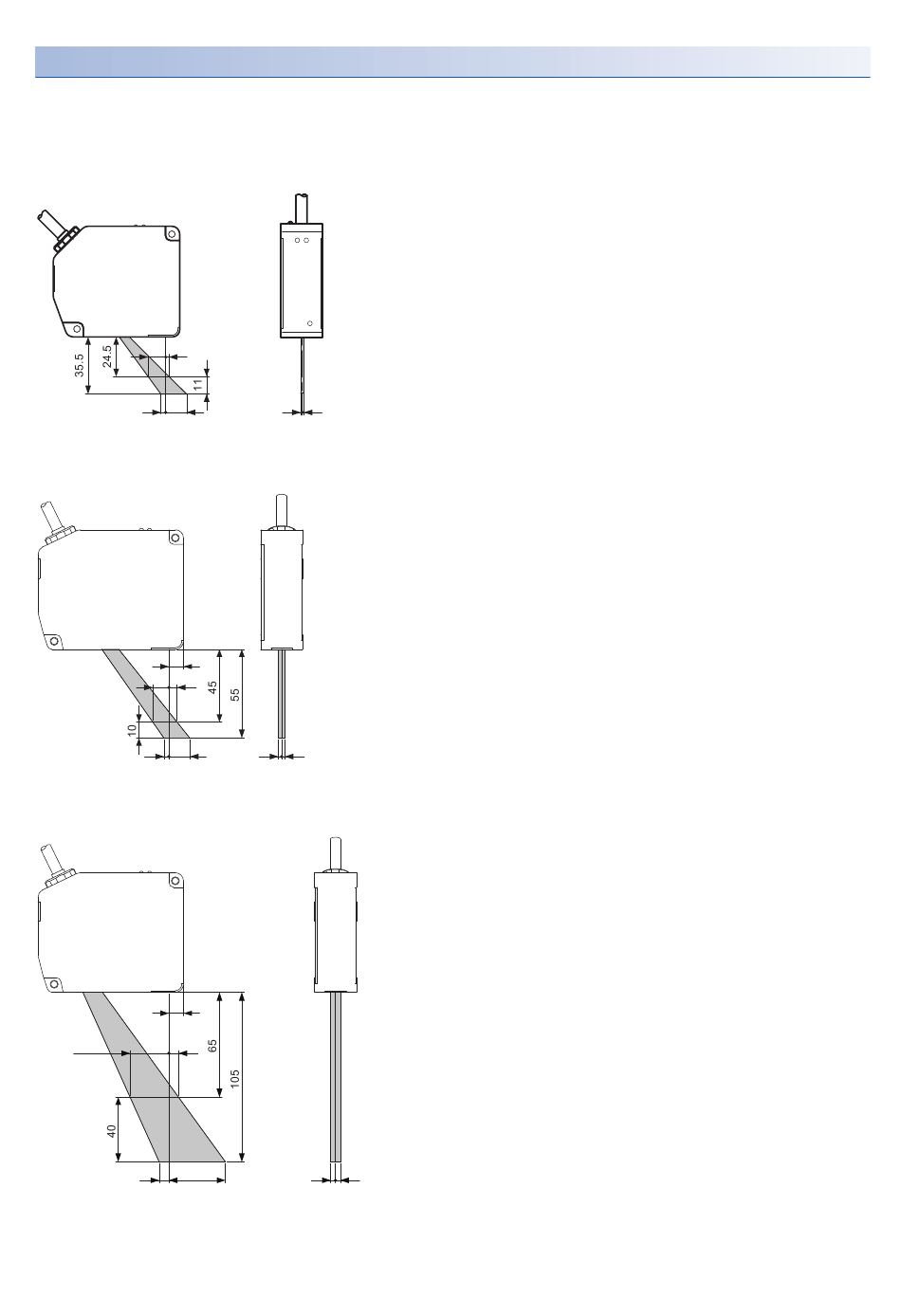

Mutual interference area
When two or more diffuse reflection sensor heads are installed side by side, mutual interference occurs if the laser spots from
other sensor heads fall within the shaded areas in the following figures. Install sensor heads so that the laser spots from other
sensor heads fall outside the shaded areas.
■30mm type (MH11H03B0SNA, MH11H03B0LNA)
11
3
13
(Unit: mm)
■50mm type (MH11H05B0SNA, MH11H05B0LNA, MH11H05C0SNA, MH11H05C0LNA)
10
3
(Unit: mm)
■85mm type (MH11H08B0SNA, MH11H08B0LNA, MH11H08C0SNA, MH11H08C0LNA)
24
6
(Unit: mm)
APPX
68
Appendix 2 Characteristics
2
1
1
9
5
13
2
2
9
6
35
3
3
