Typical Installation

1. Ensure all external system power supplies are off.

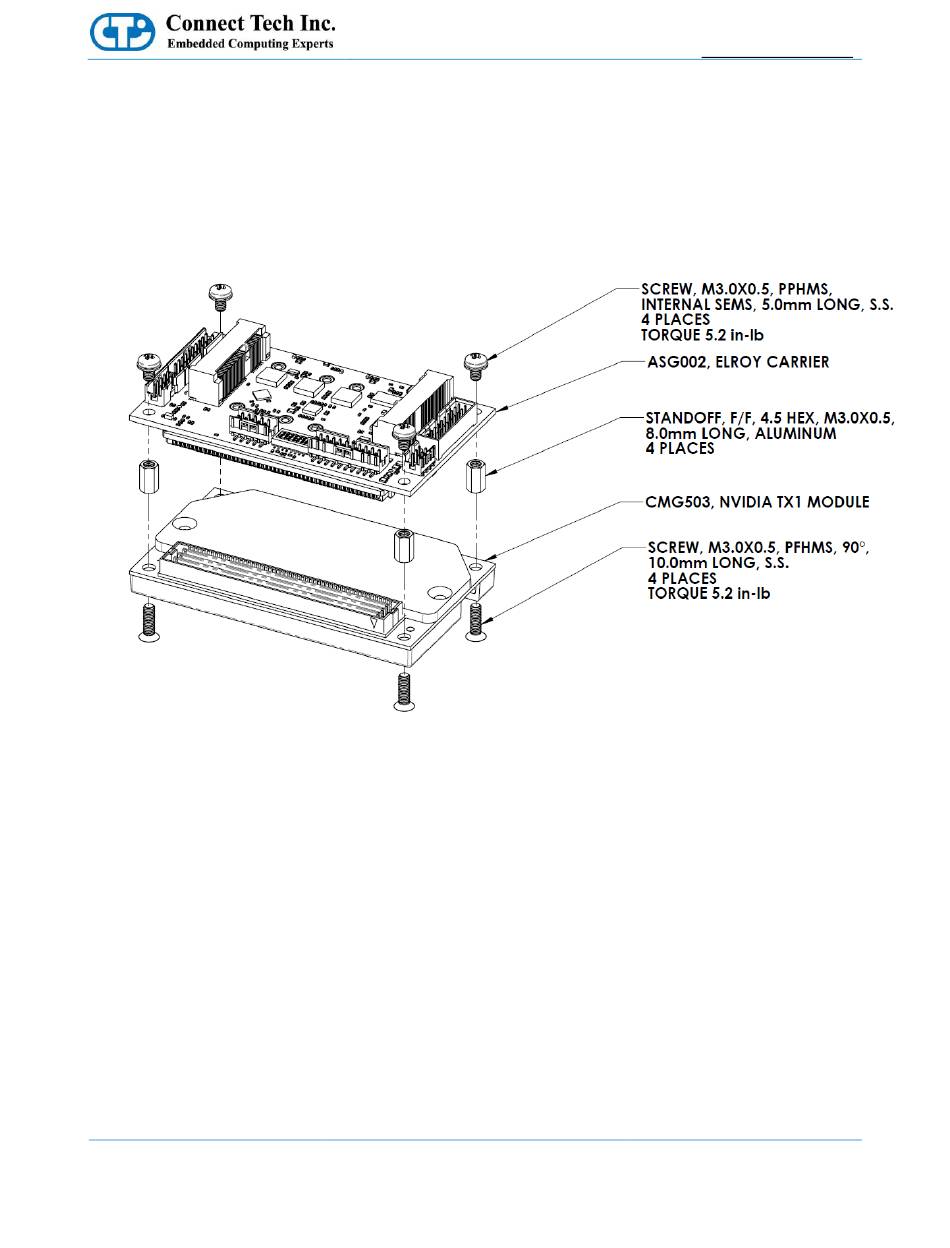

2. Install the Jetson TX2, TX2i or TX1 Module onto the Samtec SEARAY Connector P1. Be sure to follow
the manufacturer's directions for proper installation of mounting hardware, heatsink/heatspreader, and any
other applicable requirements from the manufacturer.
3. Install the necessary cables for application. At a minimum these would include:
a) Power cable to the input power connector
b) HDMI video display cable
c) Keyboard and mouse via USB
For additional information on the relevant cables, please see the Cables and Interconnects section of this
manual.
4. Connect the Power Cable to the Power Supply
5. Switch ON the Power Supply. DO NOT power up your system by plugging in live power.
