Connect Tech NVIDIA Jetson TX2 User Manual page 19

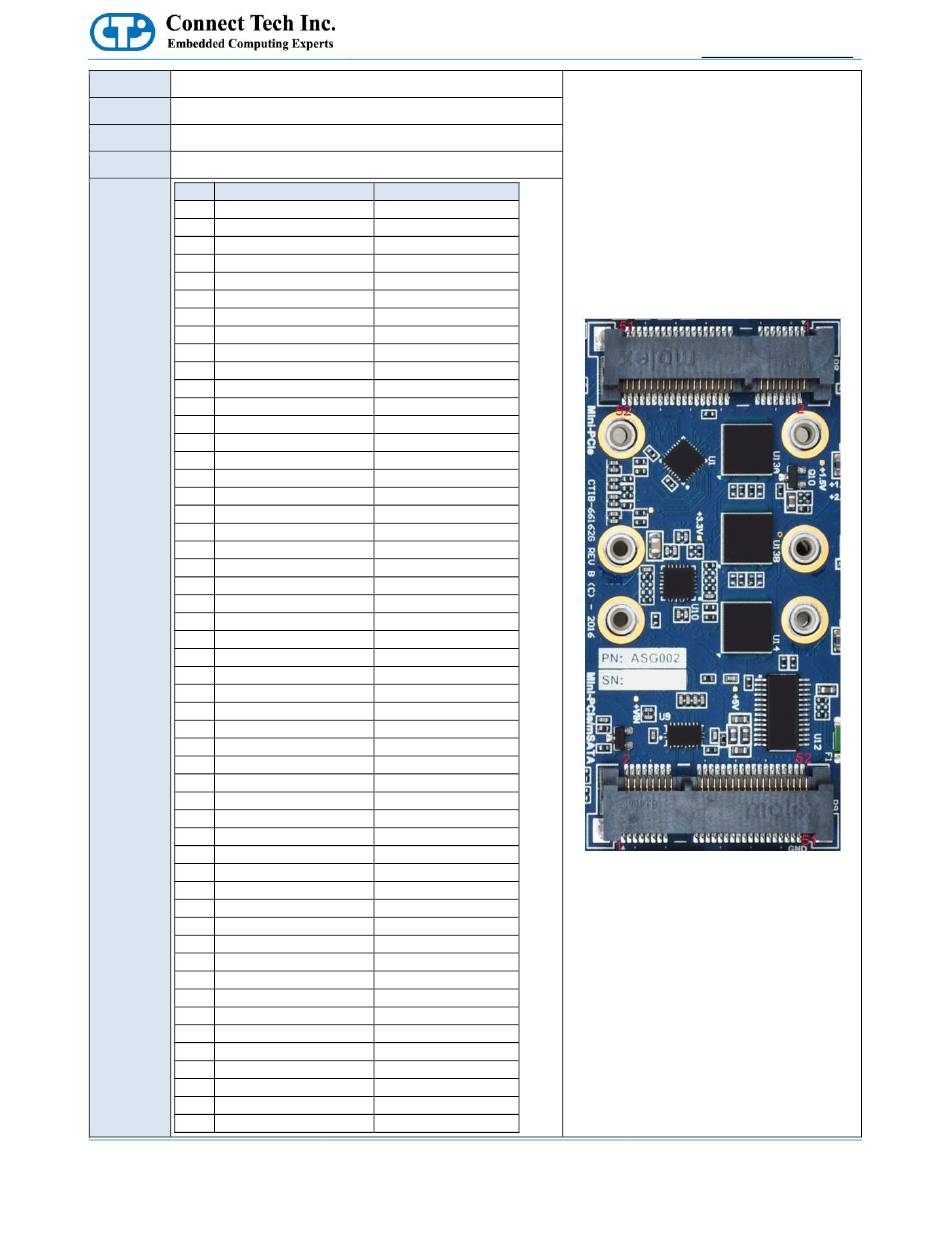

Function Mini-PCIe/mSATA Slots
Location P8, P9
Type Molex Card Edge Connector
P/N 48338-0065
Pinout Pin Mini-PCIe Description
1 -
2 +3.3V
3 -
4 GND
5 -
6 +1.5V
7 CLKREQ#
8 -
9 GND
10 -
11 PCIe CLK-
12 -
13 PCIe CLK+
14 -
15 GND
16 -
17 -
18 GND
19 -
20 W_DISABLE#
21 RESV
22 -
23 PCIe RX-
24 +3.3V
25 PCIe RX+
26 GND
27 GND
28 +1.5V
29 GND
30 -
31 PCIe TX-
32 -
33 PCIe TX+
34 GND
35 GND
36 USB D- (P9 Only)
37 GND
38 USB D+ (P9 Only)
39 +3.3V
40 GND
41 +3.3V
42 -
43 RESV
44 -
45 -
46 -
47 -
48 +1.5V
49 -
50 GND
51 -
52 +3.3V
Document: CTIM-00465
Revision: 0.16
mSATA Description
-
+3.3V
-
GND
-
+1.5V
-
-
GND
-
-
-
-
-
GND
-
-
GND
-
-
RESV
-
SATA TX+
+3.3V
SATA TX-
GND
GND
+1.5V
GND
-
SATA RX-
-
SATA RX+
GND
GND
-
GND
-
+3.3V
GND
+3.3V
-
RESV
-
-
-
-
+1.5V
-
GND
-
+3.3V
Page 19 of 30
