Mechanical Details
A complete 3D STEP Model file of Elroy Carrier can be downloaded here:
http://www.connecttech.com/ftp/3d_models/ASG002_3D_MODEL.zip

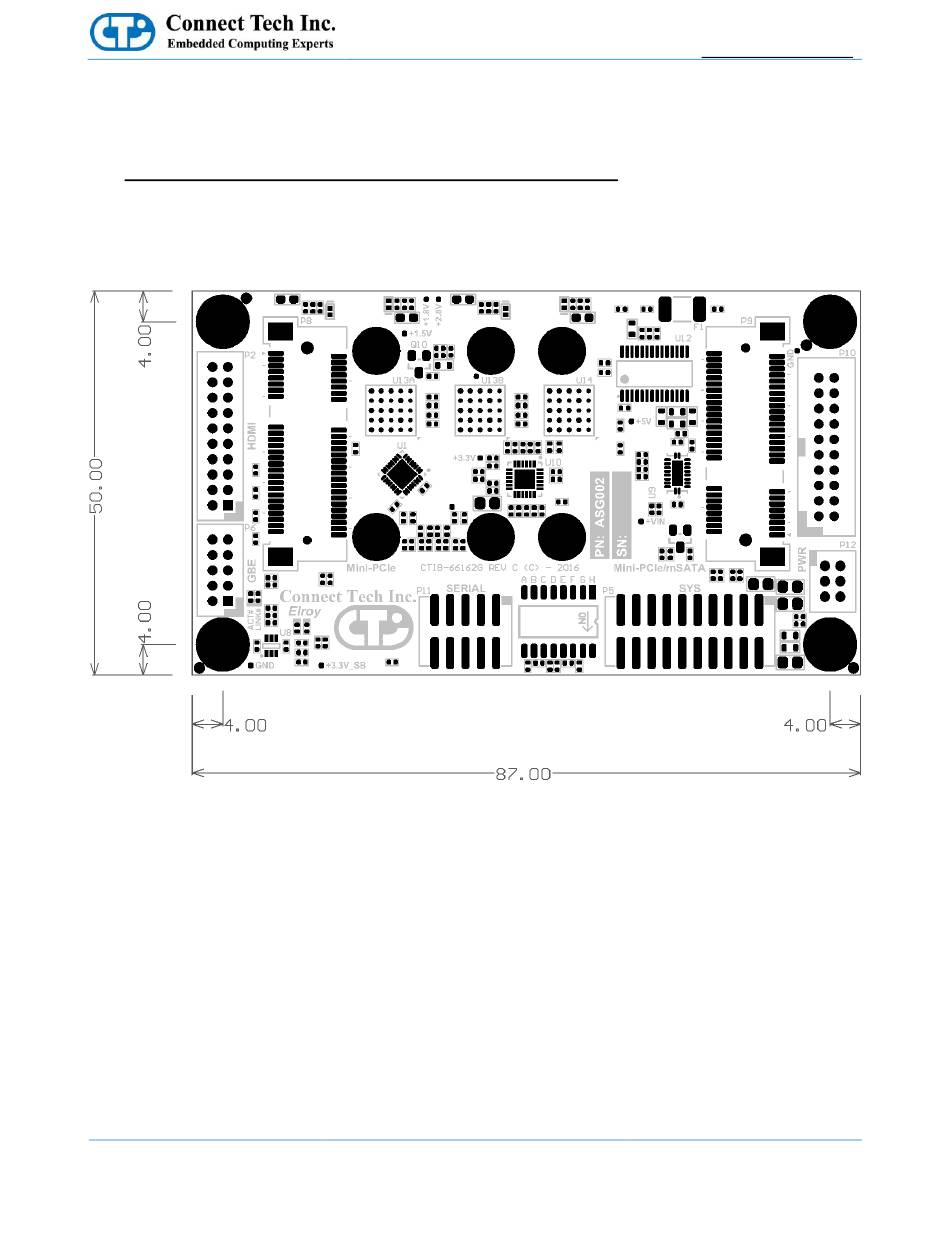

2D Mechanical Dimensioned Drawing (Top View) - PCB and Mounting Hole Dimension are in mil.
Top View
Document: CTIM-00465
Revision: 0.16
Page 29 of 30
Connect Tech Inc. 800-426-8979 | 519-836-1291
®
Elroy Carrier for NVIDIA
Jetson™ TX2/TX2i/TX1
Users Guide
www.connecttech.com
Date: 2019-02-20
