Half and Full Length Mini-PCIe/mSATA Module Installation

The Elroy Carrier is designed with mounting holes to allow for the population of full and half sized modules.
To switch between the sizes, simply move the spacers and screws to the appropriate position. See the images
below for further information.

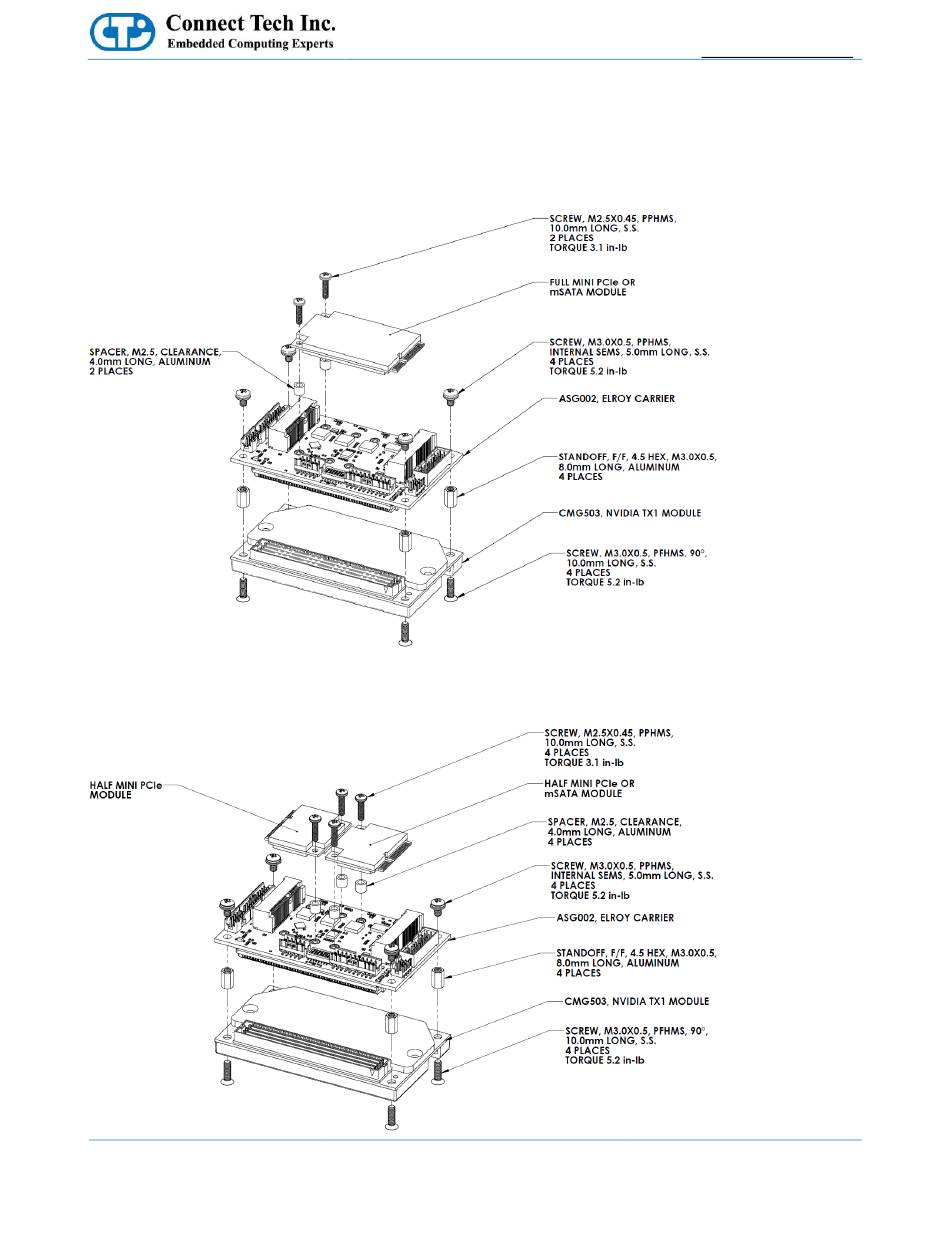

Full-Size Mini-PCIe/mSATA Module installation:
Half-Size Mini-PCIe/mSATA Module installation:
