Power Input

The Elroy Carrier accepts a single power input to power all on-board devices. A power input range of +9V to
+14V is acceptable.

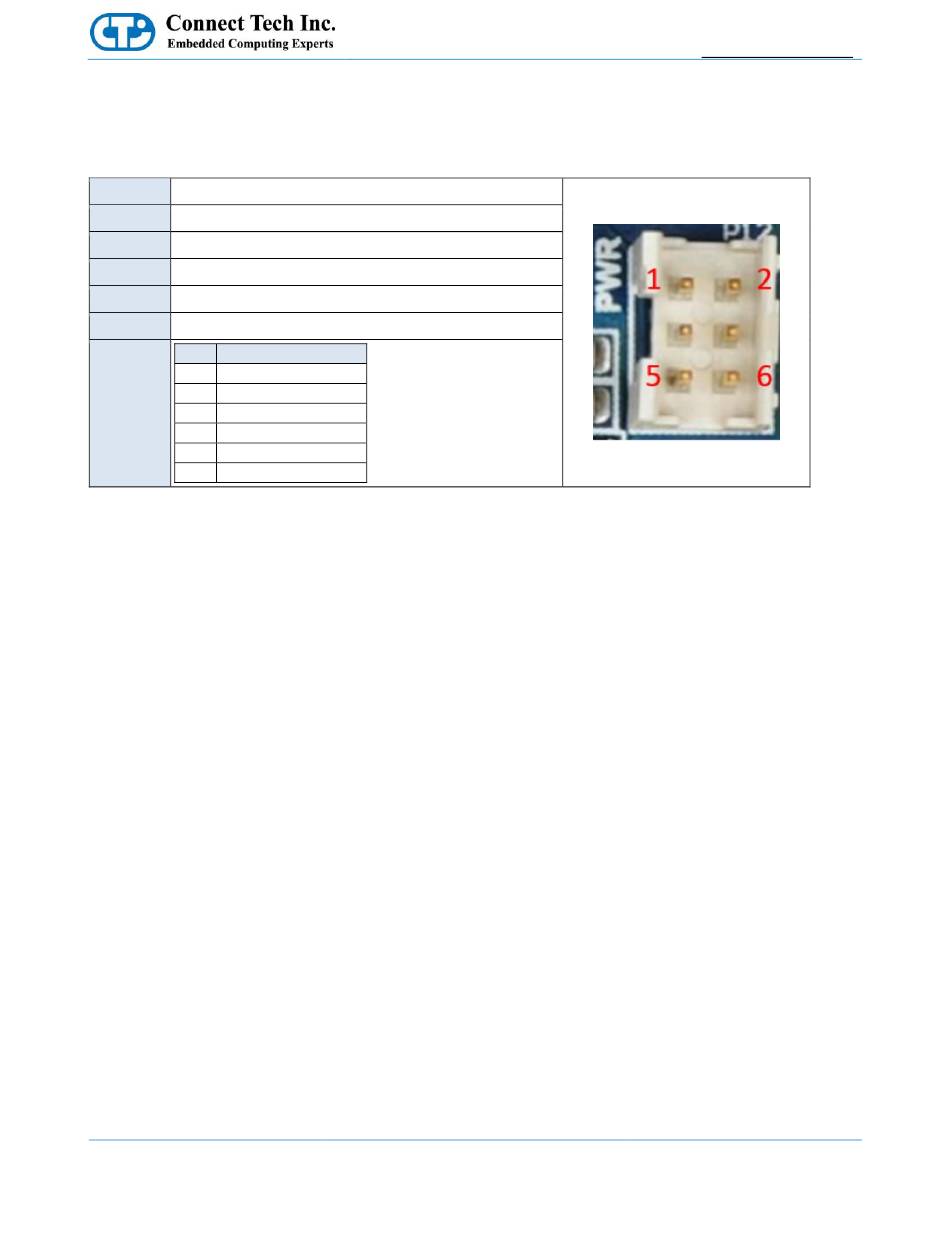

Function Power
Location P12
Type FCI Minitek Double Row 3 x 2
P/N 98414-G06-06LF
Mating 10073599-006LF
Cable CBG112
Pinout
Pin Description
1
2
3
4 +12.0V
5 +12.0V
6 +12.0V

Auto Start

The Elroy Carrier has an on-board Auto Start Functionality. The NVIDIA Jetson TX2/TX2i/TX1 Module
requires a power button or power pulse to start. The Elroy Carrier has a power pulse circuit on board to auto
start the Jetson TX2/TX2i/TX1.
Note: Due to the changes done to the PMIC circuitry of the TX2i Jetson Module the Elroy Carrier will always
remain ON when in AT (Automatic Power ON) and ATX (Push Power button) modes. This will cause the Elroy
Carrier to automatically power ON when voltage is applied to the system. The system will in addition be unable to
shut down in software (Soft Shutdown), due to the characteristics of the TX2i power circuitry as such the system
will perform a Reset/Reboot function.
Document: CTIM-00465
Revision: 0.16
GND
GND
GND
Page 23 of 30
