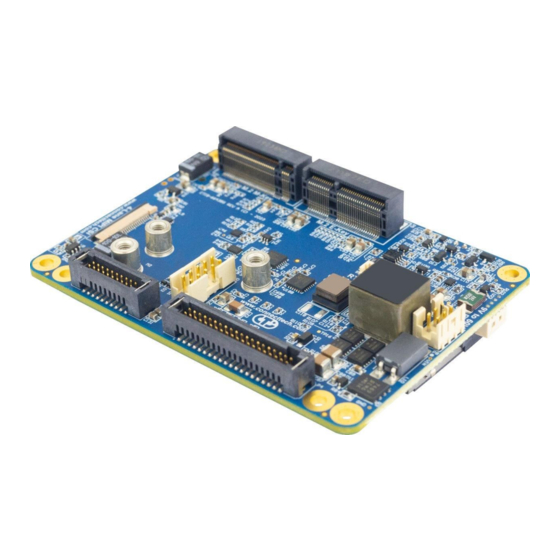

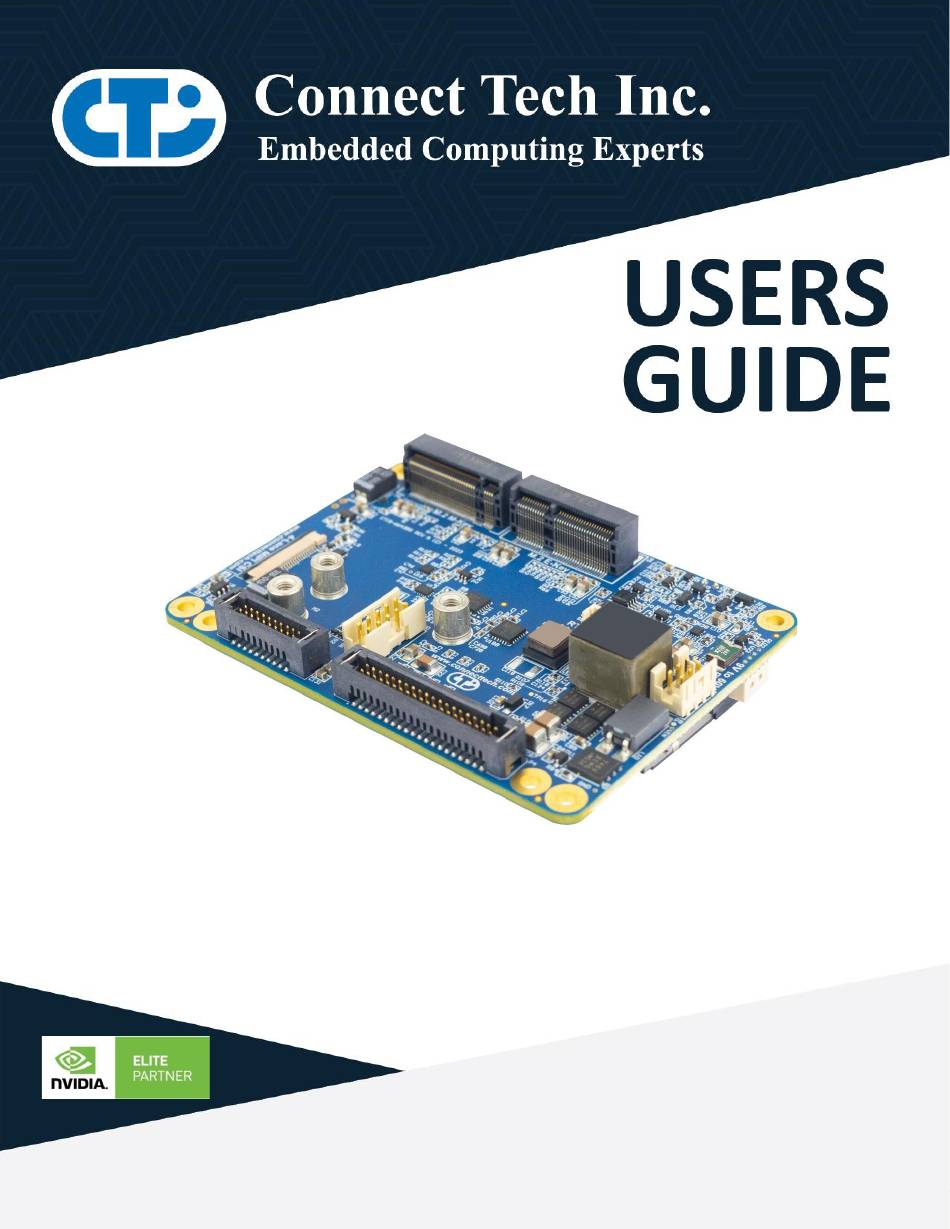

- Page 1 Hadron Carrier CTIM-00088(0.00) 2023-03-21 CONNECT TECH www.connecttech.com sales@connecttech.com CONNECT TECH INC. | 489 CLAIR RD. W., GUELPH, ON N1L 0H7 CANADA | TEL: +1.836.1291 | TOLL: 800.426.8979...
-
Page 2: Table Of Contents
LED Indicators ............................20 Typical Installation ..........................21 Thermal Details ............................22 Cable Information ..........................22 Connect Tech Custom Thermal Solutions ..................23 Current Consumption Details ....................... 25 Software / BSP Details ..........................25 Mechanical Details ..................Error! Bookmark not defined. -
Page 3: Preface
The information contained within this user’s guide, including but not limited to any product specification, is subject to change without notice. Connect Tech assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide. -
Page 4: Limited Product Warranty
Connect Tech Inc. provides a one-year Warranty for this product. Should this product, in Connect Tech Inc.'s opinion, fail to be in good working order during the warranty period, Connect Tech Inc. will, at its option, repair or replace this product at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster or non-Connect Tech Inc. -
Page 5: Esd Warning
ESD Warning Electronic components and circuits are sensitive to ElectroStatic Discharge (ESD). When handling any circuit board assemblies including Connect Tech COM Express carrier assemblies, it is recommended that ESD safety precautions be observed. ESD safe best practices include, but are not limited to: •... -
Page 6: Introduction
INTRODUCTION Connect Tech’s Hadron platform brings a low cost deployable Jetson solution to the market. The Hadron’s design includes 1x Gigabit Ethernet, 2 x USB 3.1 (when using NVIDIA® Jetson Orin™ NX), 1 x MIPI CSI-2 (4 lane), 4x GPIOs (2x PWM capable), 3x UART, 1x I2C, 1x SPI. -
Page 7: Part Numbers / Ordering Information
Hadron Carrier Users Guide www.connecttech.com Part Numbers / Ordering Information Part Number Description NGX012 Hadron Carrier Only PRODUCT OVERVIEW Block Diagram Document: CTIM-00088 Page 7 of 25 Date: 2023-03-21 Revision: 0.00... -
Page 8: Connector Locations
Hadron Carrier Users Guide www.connecttech.com Connector Locations Top View Force Recovery/RESET Jumper (J2) Module Fan Header (P10) Connector (P1) Power Input USB 3.1 Gen 2 GBE 1 GBE 2 USB OTG Bottom View M.2 E-Key (WiFi/BT) M.2 M-Key (NVMe) RTC Header (P9) Input Power (P8) MIPI CSI Connector (P7) -
Page 9: Connector Summary
Hadron Carrier Users Guide www.connecttech.com Connector Summary Designator Connector Description Module Board-To-Board Connector for: • 2309413-1 NVIDIA® Jetson Xavier™ NX • NVIDIA® Jetson Orin™ NX 98414-G06-10LF GbE Connector TFM-110-02-L-D-WT USB 3.1 Gen 2 (with OTG Support) TFM-120-02-L-D-WT I/O Header 10128797-004RLF M.2 E-Key Connector 10131758-001RLF M.2 M-Key (NVMe) Connector... -
Page 10: Detailed Feature Description
Hadron Carrier Users Guide www.connecttech.com DETAILED FEATURE DESCRIPTION Jetson Orin™ / Xavier™ NX Module Connector Description The NVIDIA® Jetson Orin™ / NVIDIA® Jetson Xavier™ NX processor and chipset are implemented on the Jetson Orin™ NX / Jetson Xavier™ NX Module. This connects to the Hadron Carrier via a TE Connectivity DDR4 SODIMM 260 Pin connector. -
Page 11: 10/100/1000 Ethernet Connectors
Hadron Carrier Users Guide www.connecttech.com 10/100/1000 Ethernet Connectors Description The NVIDIA® Jetson Orin™ NX/ NVIDIA® Jetson Xavier™ NX module will allow internet communication via GbE connector as below. Function Description Location Ethernet Usage Jetson Onboard Ethernet Type 10 pin RA connector Carrier Part Number: 98414-G06-10LF Connector... -
Page 12: Usb 3.1 Connector
Hadron Carrier Users Guide www.connecttech.com USB 3.1 Connector Function Description Location Type Tiger Eye 20 Pin Connector, 0.05mm Pitch Carrier Part Number: TFM-110-02-L-D-WT Connector Manufacturer: Samtec Mating CBG615 Connector Pinout Pin 1 Pin 2 USB1_D_P Pin 3 USB0_D_P Pin 4 USB1_D_N Pin 5 USB0_D_N... -
Page 13: I/O Header
Hadron Carrier Users Guide www.connecttech.com I/O Header Description The Hadron Carrier implements a TFM-120-02-L-D-WT Connector to allow access for additional GPIO and interfaces. Function Description Location Type Hirose 40Pin Connector, 1mm Pitch Part Number: TFM-120-02-L-D-WT Carrier Connector Manufacturer: Samtec SFSD-20-28C-G-12.00-SR Mating Connector Manufacturer: Samtec Pinout... -
Page 14: M.2 E-Key - Wifi And Bluetooth Expansion Port
Hadron Carrier Users Guide www.connecttech.com Xavier™ NX SW Interface Cross Reference Connector Name Module ID Controller ID GPIO07 GPIO07 PR.00 GPIO10 GPIO10 PQ.01 GPIO11 GPIO11 PQ/06 GPIO12 GPIO12 PCC/04 GPIO13 (PWM) GPIO12 (PWM) c340000.pwm pwmchip1 Connector Name SW/Dev ID DTB ID I2C0 i2c-1 i2c@3160000... -
Page 15: M.2 M-Key - Nvme
Hadron Carrier Users Guide www.connecttech.com M.2 M-Key – NVMe Function Description Location 67 Pin M.2 Connector with Type M2.5 Mounting Standoff Part Number: 10131758-001RLF Connector Manufacturer: Amphenol ICC As per the M.2 E-key Pinout specification Notes Interface is x4 PCIe Gen 3. Support for M.2 2230 and 2242 sizes only. MIPI CSI-2 Connectors Description The NVIDIA®... -
Page 16: Power Header
Hadron Carrier Users Guide www.connecttech.com Pin 11 CSI1_D0_P Pin 12 CSI1_D0_N Pin 13 Pin 14 CSI0_CLK_P Pin 15 CSI0_CLK_N Pin 16 Pin 17 CSI0_D1_P Pin 18 CSI0_D1_N Pin 19 Pin 20 CSI0_D0_P Pin 21 CSI0_D0_N Pin 22 22-to-15 pin cable image reference Power Header Description The Hadron Carrier implements a Power Connector using 98414-G06-06LF from Amphenol FCI. - Page 17 Hadron Carrier Users Guide www.connecttech.com Pin 2 Pin 3 Pin 4 +VIN Pin 5 +VIN Pin 6 +VIN Document: CTIM-00088 Page 17 of 25 Date: 2023-03-21 Revision: 0.00...
-
Page 18: 3-Pin Rtc Battery Connector
Hadron Carrier Users Guide www.connecttech.com 3-Pin RTC Battery Connector Description The Hadron Carrier implements a 3 Position Molex PicoBlade connector for connecting RTC battery. Function Description Location Type Molex 3 Position 1.25mm PicoBlade Connector Carrier Part Number: 53047-0310 Connector Manufacturer: Molex Mating Molex 51021-0300 PicoBlade Connector Connector... -
Page 19: Reset & Recovery Jumper
Hadron Carrier Users Guide www.connecttech.com Reset & Recovery Jumper Description The Hadron Carrier implements a dual functionality jumper block for both Reset and Recovery of the platform. To Reset the module, simply connect the two pins on the jumper momentarily. To put the Jetson module into Force Recovery mode, install a jumper and then power on the platform. -
Page 20: Led Indicators
Hadron Carrier Users Guide www.connecttech.com LED Indicators Description The Hadron Carrier implements three LED’s (D14, D15, D16) for power status indication as follows: Function Description Location D14, D15, D16 Type Green LED Carrier Part Number: APHHS1005CGCK Connector Manufacturer: Kingbright Function +3.3V SYS_ON Document: CTIM-00088... -
Page 21: Typical Installation
Hadron Carrier Users Guide www.connecttech.com TYPICAL INSTALLATION 1. Ensure all external system power supplies are off and disconnected. 2. Install the NVIDIA® Jetson Orin™ NX/ NVIDIA® Jetson Xavier™ NX Module into the DDR4 260 Pin SODIMM Connector (P1). Be sure to follow the manufacturer’s directions for proper installation of mounting hardware, heatsink / heat-spreader, and any other applicable requirements from the manufacturer. -
Page 22: Thermal Details
Hadron Carrier Users Guide www.connecttech.com THERMAL DETAILS The Hadron Carrier has an Operating Temperature Range of -25°C to +85°C. However, it is important to note that the NVIDIA® Jetson Orin™ NX/ NVIDIA® Jetson Xavier™ NX Module has its own properties separate to that of the Hadron Carrier. The Hadron is rated for Operating Temperature Range of -25°C to +85°C. -
Page 23: Connect Tech Custom Thermal Solutions
CONNECT TECH CUSTOM THERMAL SOLUTIONS Connect Tech Inc. has three custom solutions available for customer implementation, namely, an Active Cooling Solution, Passive Cooling Solution, and Thermal Transfer Plate Solution. Please note the different part numbers for NVIDIA® Jetson Orin™ NX and NVIDIA® Jetson Xavier™ NX thermal solutions. - Page 24 Hadron Carrier Users Guide www.connecttech.com Thermal Transfer Plate XHG313 Cooling Document: CTIM-00088 Page 24 of 25 Date: 2023-03-21 Revision: 0.00...
-
Page 25: Current Consumption Details
25°C (typ.) plugged in SOFTWARE / BSP DETAILS All Connect Tech NVIDIA® Jetson based products are built upon a modified Linux for Tegra (L4T) Device Tree that is specific to each CTI product. WARNING: The hardware configurations of CTI’s products differ from that of the NVIDIA® supplied evaluation kit.
