Detailed Feature Description

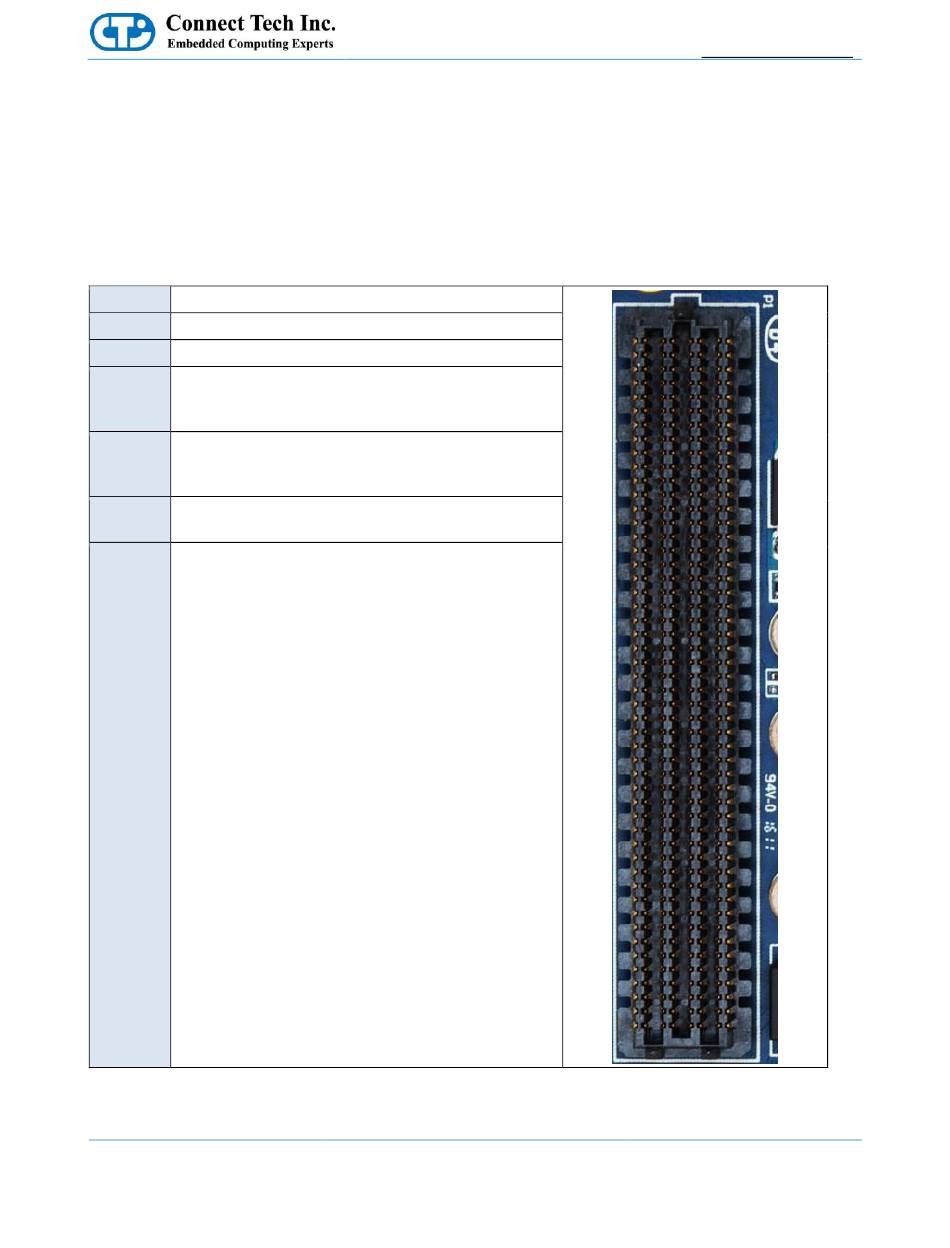

Jetson™ TX2/TX2i/TX1 Board-to-Board Connector
With the NVIDIA Jetson™ TX2/TX2i/TX1, the processor and chipset are implemented on the Jetson™
TX2/TX2i/TX1 Module. This connects to the Elroy Carrier via a Samtec SEARAY™ Board to Board
Connector.
NVIDIA Jetson™ TX2, TX2i or TX1 Interface
Function
Location P1
Type Samtec SEARAY™ Connector
Carrier SEAM-50-03.0-S-08-2-A-K-TR (8.0mm stacking height)
Connector Manufacturer: Samtec
P/N
SEAF-50-05-S-08-02-A-K (installed on Jetson™
Mating
Connector TX2/TX2i/TX1)
P/N Manufacturer: Samtec
Refer to NVIDIA's Jetson™ TX2/TX2i/TX1 System-on-
Pinout
Module datasheet for pinout details
Standoffs 8.0mm Standoffs Required between NVIDIA Jetson
TX2/TX2i/TX1 Module and Elroy (ASG002) Carrier
