USB 2.0/3.0

The maximum configuration for a NVIDIA Jetson TX2, TX2i or TX1 Module allows for one external USB 3.0
Port with an integrated USB 2.0 Port. The USB 3.0 signals are sourced from the Jetson TX2/TX2i/TX1
Module, and run through a re-driver.
Over current protection, power supply filtering and ESD protection is provided on-board.

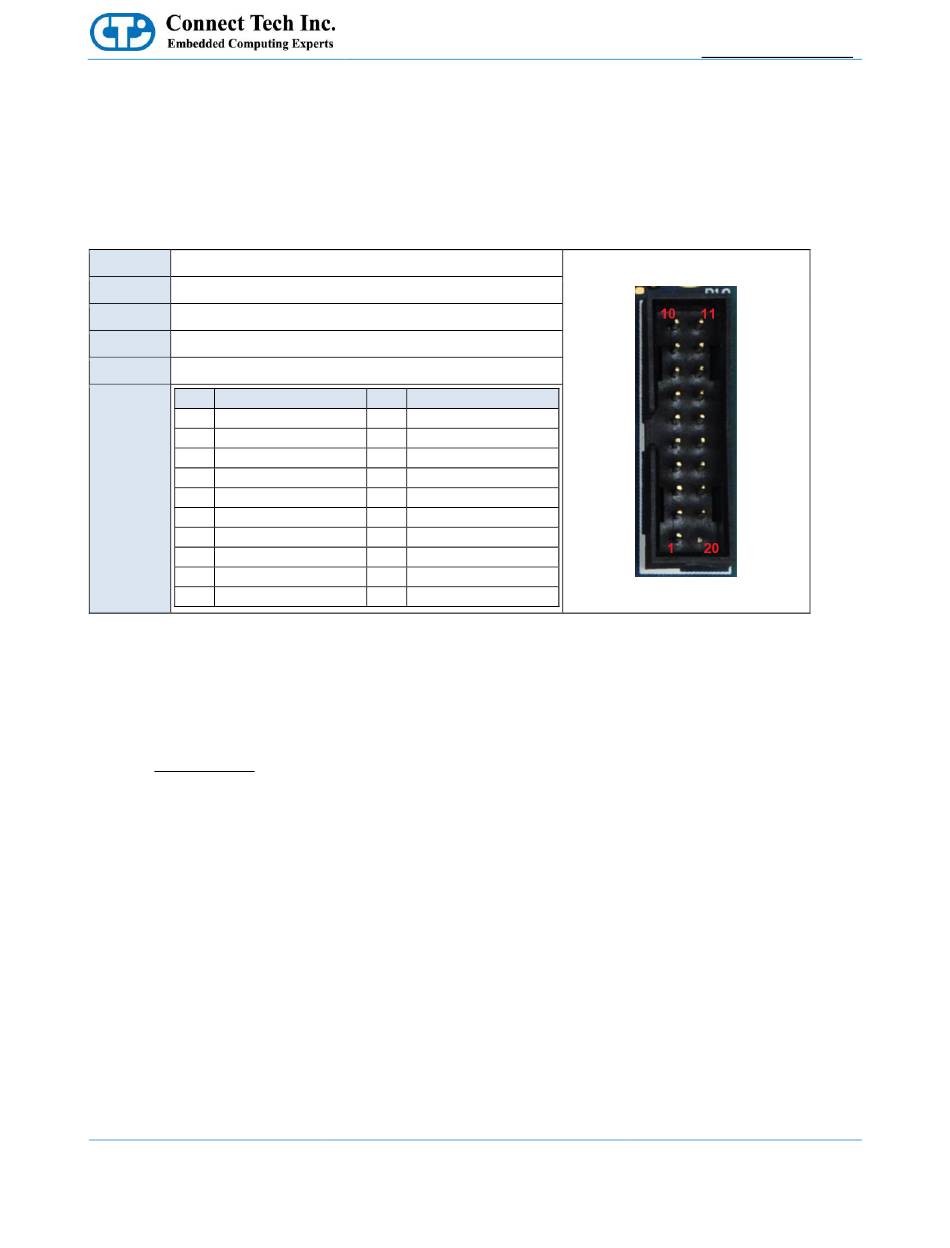

Function USB 2.0/3.0
Location P10
Type Lotes Co. Ltd Double Row 10 x 2
P/N ABA-USB-152-K01
Cable CBG131
Pinout
Pin Description
1 Port A - VBUS
2 Port A - SSRX-
3 Port A - SSRX+
4
5 Port A - SSTX-
6 Port A - SSTX+
7
8 Port A - D-
9 Port A - D+
10
Force USB Recovery Mode
The Elroy carrier supports flashing the TX2/TX2i/TX1 module over USB 2.0 using Port B. A standard
USB-A to USB-A cable is required to connect it to the flashing system. Note that you should leave the
USB cable unplugged until after the TX2/TX2i/TX1 is put into recovery mode.
To flash the TX2/TX2i/TX1, first ensure the unit is powered down. Next, connect pins 6 and 20 of the
System Header together with a jumper wire, then power on the unit. The jumper wire can be removed after
applying power. Connect the USB-A to USB-A cable from a free USB port on the host PC to the USB 2.0
port on the Elroy. The TX2/TX2i/TX11 can now be flashed using the standard NVIDIA flashing tools.
Document: CTIM-00465
Revision: 0.16
Pin Description
20
19 Port B - VBUS
18
GND 17
16
15
GND 14
13
12 Port B - D-
- 11 Port B - D+
