50 Disassembly and assembly

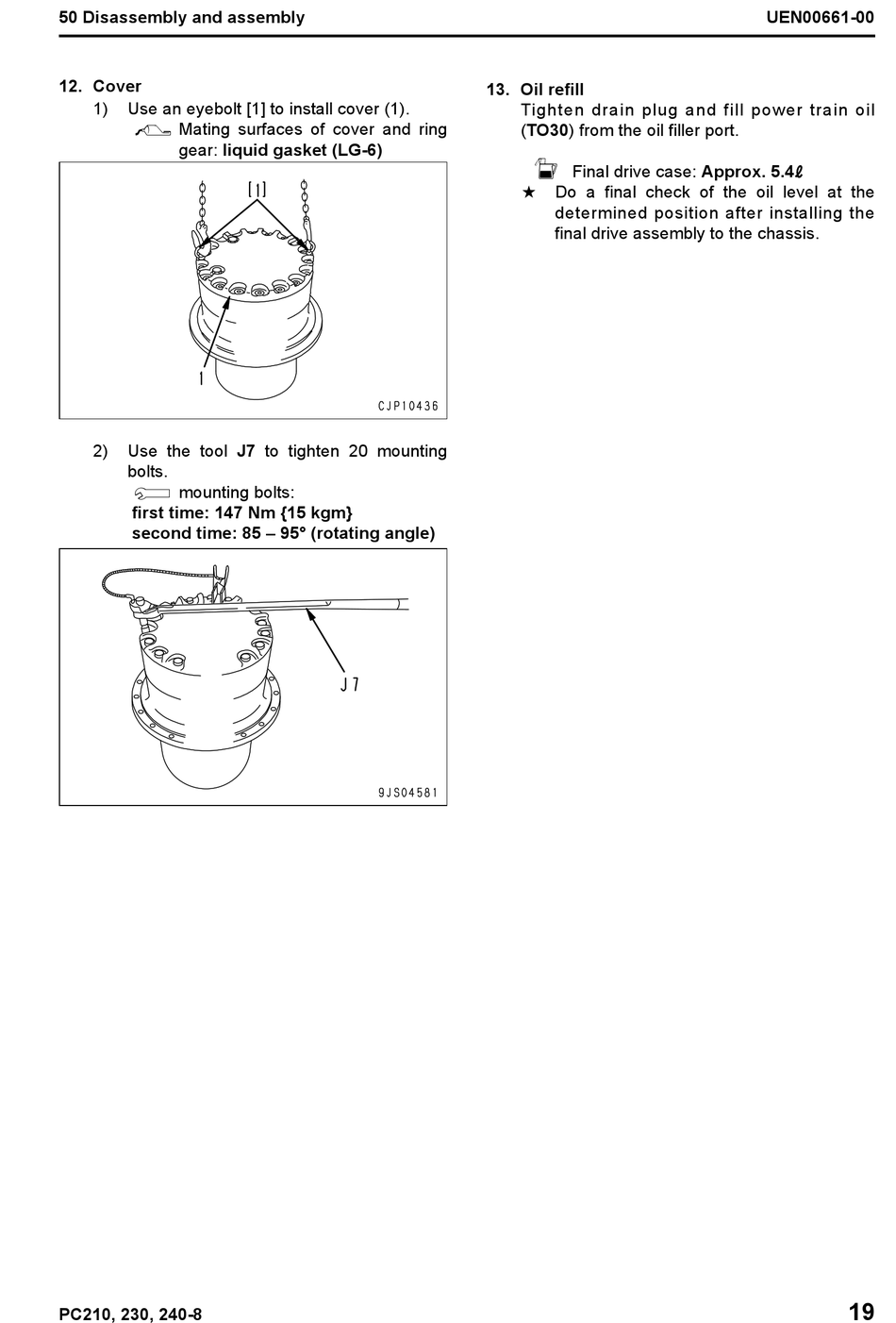

12. Cover
1)
Use an eyebolt [1] to install cover (1).
2
Mating surfaces of cover and ring
gear: liquid gasket (LG-6)
2)
Use the tool J7 to tighten 20 mounting
bolts.
3
mounting bolts:
first time: 147 Nm {15 kgm}
second time: 85 – 95° (rotating angle)
PC210, 230, 240-8
13. Oil refill
Tighten drain plug and fill power train oil
(TO30) from the oil filler port.
5
Final drive case: Approx. 5.4l
a Do a final check of the oil level at the
determined position after installing the
final drive assembly to the chassis.
UEN00661-00
19
