HDL M/R4.16.1 Manual

Knx/eib bus
Hide thumbs
Table of Contents

Advertisement

Quick Links

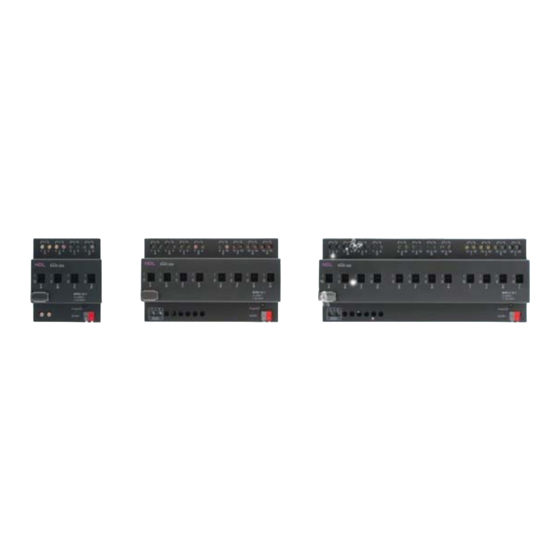

HDL KNX / EIB
Switch Actuators
_____________________________________________________________________________________
www.hdlchina.com
Guangzhou Hedong Electronic Co.,Ltd (HDL)
1/58

Advertisement

Table of Contents
loading

Related Manuals for HDL M/R4.16.1

Summary of Contents for HDL M/R4.16.1

  • Page 1 HDL KNX / EIB Switch Actuators _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 1/58...

  • Page 2: Table Of Contents

    Channel function “scene”……………………..…..……… 27 3.5.5 Channel function “threshold”…………..…………….…….27 3.5.5.1 Channel function “1byte threshold”………………….…….29 3.5.5.2 Channel function “2byte threshold”……………..….…….31 3.5.6 Channel function “curtain”…………………………………33 3.5.7 Channel function “logic”……………………………………35 3.5.8 Channel “Heating Actuator”………………………..………38 Communication objects description………..……..……42 _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 2/58...
  • Page 3 4.2.10 Objects “Scene”………………………..…….………………46 4.2.11 Objects “Threshold”………………..……….…….…………46 4.2.12 Objects “Blinds”……………………………….………………47 4.2.13 Objects “Logic”………………………….…….………………48 4.2.14 Objects “Heating”……………………….….….………………48 4.2.15 Objects “Forced position”…………………..…….…….……49 Application……………………………………….………….50 Program functions diagram…………….………………….…50 Scene…………………………………………………………..51 Threshold………………………………………….…………..51 Blinds…………………………..………………………………52 Logical function ……………………………………………….53 PWM control ………………………………………………….54 _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 3/58...

  • Page 4: General

    HDL KNX / EIB series switch actuator output modules are developed by HDL. Using KNX/EIB BUS communicate with other KNX devices. Database need to be downloaded to the switch actuator by using ETS2 V1.3/ETS 3.0/ETS4, The document descript how to use the products .

  • Page 5: Product Function

    AC/DC loads. The outputs for MAX 16 A be switched ON or OFF on every output channel and can manually switch too. The M/R4.16.1 no need require an additional power supply. The M/R8.16.1,M/R12.16.1 require an additional 24VDC power supply if need frequently operation all of channel same time, but normal operation is good also if there is no additional power supply.

  • Page 6: A R D W A R E

    HDL KNX / EIB Switch Actuators 2- Hardware The technical properties of HDL KNX/EIB Switch Actuators as the following sections. 2.1 Technical data Power supply *Operating voltage(supply by the bus) 21...30 V DC, * Current consumption EIB / KNX(operate) < 15 mA * Current consumption EIB / KNX(standby) <...
  • Page 7 * LVD Standard EN60669-2-1 , EN60669-1 *EMC Standard EN50090-2-2 CE mark * In accordance with the EMC guideline and low voltage guideline Comply with RoHS Pollutant Note: All of loads, at 230 V AC _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 7/58...
  • Page 8 Max. number of associations Note: The programming requires the EIB Software Tools ETS2 V1.3 or ETS3.0 or ETS4. If use ETS2 V1.3, then import "*.vd2". If use ETS3.0, then Import "*.vd3”.If use ETS4,the import “.knxprod” _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 8/58...

  • Page 9: Dimension Drawings

    HDL KNX / EIB Switch Actuators 2.2 Dimension drawings 66mm 49mm M/R4.16.1 M/R8.16.1 M/R12.16.1 72mm 144mm 216mm 2.3 Wiring diagram _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 9/58...
  • Page 10 HDL KNX / EIB Switch Actuators 1 Label area 2 Programming button＆Programming LED 3 KNX/EIB Bus Connector 4 Terminal for Load Connection 5 Contact position indication and manual operation _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 10/58...

  • Page 11: Maintenance And Cautions

    *Pay attention to damp proof, quakeproof and dustproof. *Avoid rain, other liquids or caustic gas. *Please contact professional maintenance staff or HDL service center for repair or fix. *Remove the dust regularly and do not wipe the unit with the volatile liquids like alcohol, gasoline, etc.

  • Page 12: Software

    HDL KNX / EIB Switch Actuators 3- Software HDL KNX/EIB Switch Actuators database use ETS3.0 to do the design. The device types are M/R4.16.1, M/R8.16.1 and M/R12.16.1,and the databases name are “Switch 4fold 16A”,”Switch 8fold 16A”,”Switch 12fold 16A”. All Interface and the functions Apply parameters please overview the following description of the paragraph.

  • Page 13: Object/Association/Group Address Define

    Max. number Max .number communication of associations of group objects addresses Switch 4fold 16A M/R4.16.1 Switch 8fold 16A M/R8.16.1 Switch 12fold 16A M/R12.16.1 Table2: Overview the max. number of the objects, max. _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 13/58...

  • Page 14: Function Parameter "General

    . This function is selected by user ---Cycle send general telegram(1..65535s,0-invalid) The range of the parameter is 0 to 65535s. Zero of parameter disable the function , other of parameter enable this function _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 14/58...

  • Page 15: Function Parameter Channel "N

    The function of the output “N” work mode can be selected with three parameter. Options: Switch Actuator Heating Actuator Inactivated If select “Inactivated”, The channel “N” function will be invalid, otherwise work in the other two modes. _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 15/58...

  • Page 16: Channel Mode "Switch Actuator

    Normally Opened: Access of the load type normally OFF state is opened. ---Response of switch state ON/OFF This parameter is the choice of the switching state feedback Options: No response Always response _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 16/58...
  • Page 17 This parameter set the ON time overflow alarm of the number. Options:0-unlimited 1..255 ---Save statistic for ON switching ‘counter(4bytes)’ Statistical channel switch ON counter. Options: Disable Enable Disable: Disable Statistics ON counter Enable: Enable Statistics ON counter >>:->Alarm for counter out _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 17/58...
  • Page 18 Unchange: The channel switch position unchanged after bus voltage recovery. Recovery: After bus voltage recovery, The channel switch position will be back to the state of the power-down previous. ON: The channel position will switch ON after bus voltage recovery. _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 18/58...

  • Page 19: Channel Function

    In normal case, The each channel function is disabled, If enabled and the channel function will be valid. ---Enable function “time” If set to Enable, and the time function will be enable . Options: Disable Enable Disable: disable time function. _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 19/58...
  • Page 20 Enable Disable: Disable Blinds function. Enable: Enable Blinds function. ---Enable function "logic" If set to Enable, the Logic function will be Enable. Options:Disable Enable Disable: Disable Logic function. Enable: Enable Logic function. _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 20/58...

  • Page 21: Channel Function "Time

    HDL KNX / EIB Switch Actuators 3.5.3 Channel function “time” Fig5: Time function windows The Time function include three work mode as following: Options:Flashing Staircase lighting ON/OFF delay _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 21/58...

  • Page 22: Channel Function "Time-Flashing

    Always flash, start with ON/OFF: Start flashing with ON or OFF. ---Time for on:(0...255 Min) Duration minutes in the ON state. ---Time for on:(0...59 Sec) Duration seconds in the ON state. ---Time for off:(0...255 Min) Duration minutes in the OFF state. _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 22/58...

  • Page 23: Channel Function "Time-Staircase Lighting

    ON: The switch state position set to ON after flashing counter overflow. OFF: The switch state position set to OFF after flashing counter overflow. 3.5.3.2 Channel function “time-Staircase lighting” Fig7: Time-Staircase lighting function windows For staircase application Control staircase lighting _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 23/58...
  • Page 24 Duration minutes of the staircase lighting delay off time. ---Time for off:(0...59 Sec) Duration seconds of the staircase lighting delay off time. ---Warning staircase lighting(ON->OFF->ON) Options: NO NO: Not allow alarm YES: Allow alarm. _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 24/58...

  • Page 25: Channel Function "Time-On/Off Delay

    ---Delay for switching ON:(0..255 Min) Duration minutes of the ON delay ---Delay for switching ON:(0...59 Sec) Duration seconds of the ON delay. ---Delay for switching OFF:(0...255 Min) Duration minutes of the OFF delay. _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 25/58...
  • Page 26 If turn off the light, and turn on the light immediately. The protection ON delay time will be valid. 2-Protection OFF delay If turn oN the light, and turn oFF the light immediately. The protection OFF delay time will be valid. _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 26/58...

  • Page 27: Channel Function "Scene

    ---Output is assigned to (scene 1...64 or not allocate) Options: not allocate Scene NO.01 Scene NO.02 ……………… Scene NO.64 The scene number is between 1 and 64, the value is between 0 and 63 or not allocate. _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 27/58...
  • Page 28 HDL KNX / EIB Switch Actuators ---Output ON/OFF: Channel switch ON or OFF Options: ON ON: Channel switch to ON. OFF:Channel switch to OFF. _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 28/58...

  • Page 29: Channel Function "1Byte Threshold

    NO: Do not allow change threshold1 via bus. YES: Allow change threshold1 via bus. ---Enable change threshold 2 over bus: Options: YES NO: Do not allow change threshold2 via bus. YES: Allow change threshold2 via bus. _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 29/58...
  • Page 30 ( ON or OFF or no action) Options: Unchange Unchange: The channel switch position no change. ON: The channel switch position set to ON. OFF: The channel switch position set to OFF ---{Input object value>upper threshold} _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 30/58...

  • Page 31: Channel Function "2Byte Threshold

    Fig11: 2byte Threshold type function windows 2bytes Threshold function is same as the 1byte threshold function. ---Enable change threshold 1 over bus: Options: YES NO: Do not allow change threshold1 via bus. _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 31/58...
  • Page 32 ---{Lower threshold<=Object vlue<=Upper threshold} If the value of receiving telegram from bus between Lower threshold and Upper threshold, the switch will action according to below option ( ON or OFF or no action) Options: Unchange _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 32/58...

  • Page 33: Channel Function "Curtain

    Options: Unchange Unchange: The channel switch position no change. ON: The channel switch position set to ON. OFF: The channel switch position set to OFF 3.5.6 Channel function “blinds” Fig12: Blinds function windows _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 33/58...
  • Page 34 ---Delay time for running direction changed When running direction changed,Delay for maximum time 5 inertia. The seconds,Minimum time is 50ms ---Moving time(2..65535s): This parameter set blinds moving need to take total time. Options:0.. 65535s _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 34/58...

  • Page 35: Channel Function "Logic

    The logic block 1 will no function by disable connect1(“Con1”) , means the “N” connect to logic block 2 directly Options: Disable Enable Disable: disable logic connection1 Enable: enable logic connection1 --- Function of logic block1 _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 35/58...
  • Page 36 Enable this parameter, the logic connecton2 in active state. The logic block 2 will no function by disable connect2 (“Con2”) , means the output of logic block 1 pass through “Out” directly Options: Disable Enable _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 36/58...
  • Page 37 1: Initialization logic connection2 value to 1. ---Result of logic block 2 inverted setting this parameter to YES, the output of connection2 will be inverted. Options: NO NO: Result of block not inverted. YES: Result of block inverted. _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 37/58...

  • Page 38: Channel "Heating Actuator

    Options: Normally Closed Normally opened Normally Closed: Normally close heating. Normally opened: Normally open heating. ---The switch state on bus voltage failure: It has three option can be set by user Options: Unchange _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 38/58...
  • Page 39 Enable: Enable Statistics ON counter >>:->Alarm for counter out Options: No No: Not alarm Yes: Alarm >>:--Alarm when counter our(10..10000000) This parameter set the ON alarm overflow time.counter Options: 10..10000000 >>:--Alarm telegram interval when counter out(1..255s) _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 39/58...
  • Page 40 Always response: always response switch state of the channel when receive the channel telegram data. Only after changed: only response switch state of the channel when change state changed. ---"ON" position of valve _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 40/58...
  • Page 41 The valve PWM of forced position. >>:--Forced cancel operation Options: Stop heating Return to normally heating valve Stop heating:When cancel forced operation,and stop heating. Return to normally heating valve:When cancel forced operation,and return to normally heating valve. _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 41/58...

  • Page 42: Communication Objects Description

    ON when the object receive the value is “1”. the switch output OFF when the object receive the value is “0” Table 4 Output objects 4.2 All objects with channel “N” _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 42/58...

  • Page 43: Objects"Respone

    2bytes This communication object is used for statistics ON time of the channel “N”. it can be read/wrote via bus by setting this function activity Table 6 Read/write statistics ON time (2byte) _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 43/58...

  • Page 44: Objects "Alarm For On Time Out

    4.2.6 Objects “Flashing” Object name Function Flags Data type Output N Flashing C W U EIS1 DPT 1.001 1bit This communication object is used for start or stop switch flashing. Table 10 Flashing _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 44/58...

  • Page 45: Objects "Staircase Light

    This communication object is used to alarm the staircase lighting. If the function is actived, the staircase lighting start or stop ,the communication object will alarm via bus. channel “N” is ON alarm “1”, Otherwise alarm “0’. Table 13 Alarm staircase light _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 45/58...

  • Page 46: Objects "Scene

    01h------call scene 2 (If scene allocated) 3Fh------call scene 64 (If scene allocated) 80h------store scene 1 (If scene allocated) 81h------store scene 2 (If scene allocated) BFh------store scene 64 (If scene allocated) Table 14 Scene(8bits) _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 46/58...

  • Page 47: Objects "Threshold

    Adjust/Stop for Blinds C W U EIS1 DPT 1.007 1bit This communication object control blinds adjust or stop. the blinds moving,Then receiving ‘1’ or ‘0’ for stop moving.Otherwise adjust the blinds. Table 16 Blinds _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 47/58...

  • Page 48: Objects "Logic

    PWM by receive 1byte data. Output ON if receiving value is 255 , output OFF if receiving value is 0, otherwise output PWM according to the value of receiving telegram from bus. Table 18 Heating actuator _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 48/58...

  • Page 49: Objects "Forced Position

    Data type Output N Forced position C R T EIS1 DPT 1.001 1bit This communication object is used to forced PWM operation.The valve of PWM can set in ets. Table 19 Forced position _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 49/58...

  • Page 50: Application

    HDL KNX / EIB Switch Actuators 5-Application 5.1 Program functions diagram _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 50/58...

  • Page 51: Scene

    They are can be set between 0 and 255. The upper threshold , lower threshold values and the state of ON and OFF can be set by using ETS software. For example: ETS set A=ON, B=Unchanged, C=OFF. _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 51/58...

  • Page 52: Blinds

    A and the Channel B will switch OFF together. UP/Adjustment : A→ON B→OFF DOWN/Adjustment : A→OFF B→ON Stop : A→OFF B→OFF Other combinations are similar to the here. _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 52/58...

  • Page 53: Logical Function

    Logic function include two logic blocks in side. Both of logic block 1 and 2 allow select “AND”, “OR”, “XOR”, “GATE” logic by user Note: N=channel A.B.C… Con1=Logic connection1 Con2=Logic connection2 GATE _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 53/58...

  • Page 54: Pwm Control

    “255”, the switch OFF by the value of receiving telegram “0”. The PWM runs and pulse width of PWM is set according to the value of receiving telegram (1 to 254 ) _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 54/58...
  • Page 55 Switch Actuators 1bit pwm control:valve=0%(OFF) 10%(26) 20%(51) 30%(77) 40%(102) 50%(128) 60%(153) 70%(179) 80%(204) 90%(230) 100%(ON) 1byte pwm control:valve= x (x:0..255) X=0(OFF) 1..25(0%) 26..50(10%) 51..76(20%) 77-101(30%) 102-127(40%) 128-152(50%) 153-178(60%) 179-203(70%) 204-229(80%) 230-254(90%) 255 (ON) _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 55/58...
  • Page 56 ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 56/58...
  • Page 57 ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 57/58...
  • Page 58 ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- _____________________________________________________________________________________ www.hdlchina.com Guangzhou Hedong Electronic Co.,Ltd (HDL) 58/58...

This manual is also suitable for:

M/r12.16.1M/r8.16.1
