- Page 1 Usable for also HDL-MSM.431 Manual describes the snapshots taken in the previous version of the module and using older HBST program. In HBST2, the graphic appearance is slightly different but the functions User Manual remain the same. Advanced Security Controller SB-DN-SEC250K www.hdlautomation.com...
-
Page 2: Table Of Contents
3. Technical Data ......................... 3 4. Installation ........................4 4.1 Wiring ........................4 4.2 System Connection ....................4 4.3 HDL Bus Pro Description ..................5 4.4 Commissioning ....................... 5 5. Software Configuration ....................6 5.1 Basic Information ....................6 5.1.1 Change the ID ....................6 5.1.2 Date Setting for Timer .................. - Page 3 User Manual SB-DN-SEC250K 6.2 Sensor Settings ....................28 6.3 Vacation Settings ....................30 7. Note ..........................36 Advanced Security Controller –User Manual...
-
Page 4: Overview

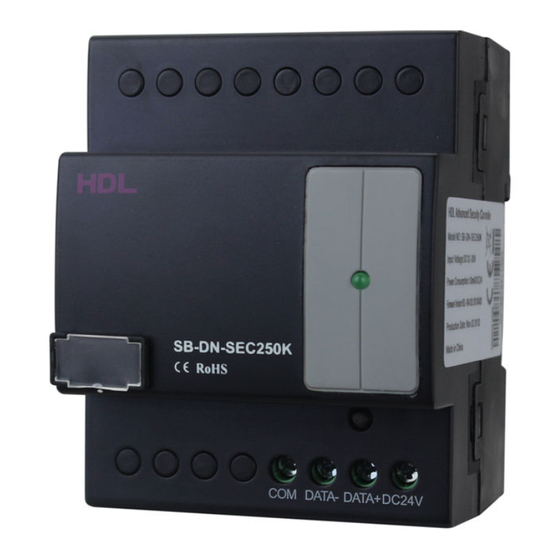

User Manual SB-DN-SEC250K 1. Overview 1.1 General Information 1.1.1 Description SB-DN-SEC250K is a security module, from the sensor status and logic implement, it can manage 8 independent zones’ arming and alarm. Up to 32 sensors can be used to detect in each area. -
Page 5: Device Description
. LED Indicator ○ b . Programming button ○ c . HDL Buspro 2. Safety Instructions The screw down strength should not exceed 0.4Nm. Do not make wrong connection on Bus interface, it will damage the Bus interface of this module. -
Page 6: Technical Data
User Manual SB-DN-SEC250K 3. Technical Data Electric Parameters Working power DC15-30V Bus power consumption 15mA/DC24V Total capacity 256Mbytes Record time (up to capacity) 10400s, about 2hours 50mins Program number Max.50 Signal type DMX512 (1990) 128x64 raster graphic LCD 6 soft-touch buttons Environmental Conditions Working temperature ~ 45... -
Page 7: Installation
User Manual SB-DN-SEC250K 4. Installation 4.1 Wiring 4.2 System Connection Panel Dimmer Relay Module Module Security Z-Audio Module Module Contact Air Quality Module Sensor Sensor Security module should work in conjunction with other products to make up a system. Advanced Security Controller – User Manual... -
Page 8: Hdl Bus Pro Description
Yellow 4.4 Commissioning Method One: a) open the HDL-BUS Pro Setup tool. b) keep pressing the programming button for 3 seconds, it turns to red color. c) on the software, click the “Address management”, and select the “Modify address (when device button is pressed)”, it will show a window like this: d) click the “Indicate initial address”, then it will show the ID of this device. -
Page 9: Software Configuration
5.1 Basic Information 5.1.1 Change the ID Every HDL-BUS device has one Subnet ID and one Device ID, the Device ID should be unique in its subnet and the Subnet ID should be kept consistent with the Gateway (typically the SB-DN-1IP or HDL-MBUS01IP.431). -
Page 10: Basic Setting
User Manual SB-DN-SEC250K 5.2 Basic Setting It’s mainly for buzzer and siren configuration. Area No. Select and enable one area(area No. is from 1 to 8), remark it for easy management, like floor1 or floor2. Siren Delay(10-180S) Set the delay time for INDOOR SIREN ON, OUTDOOR SIREN ON Restart after Alarm(1-30M) Once alarm is triggered, within the delay time (up to 30 minutes), the security module will no longer alarm again. - Page 11 User Manual SB-DN-SEC250K Exit Delay(10-180S) When arming button is pressed, you should leave during the exit delay time otherwise it will trigger the alarm targets. More People Leave Mode It’s very useful when there are many people going to leave and you want to arm this area now.
- Page 12 User Manual SB-DN-SEC250K UV Switch No. 1-4 is for Mode One to Mode Four in area1, Switch No. 5-8 is for Mode One to Mode Four in area2 and so on. Default is for normal weather, if it does not receive any UV Switch No.
-
Page 13: Auto Dial Out
User Manual SB-DN-SEC250K ALARM BUZZER OFF Automatically shut down the voice hint and buzzer when the Siren Delay time elapses. When disarmed, it will trigger the ‘ALARM BUZZER OFF’ targets. INDOOR SIREN ON, OUTDOOR SIREN ON These targets will be triggered if there is no disarm after Siren Delay, they can be a siren, loudspeaker and so on. - Page 14 User Manual SB-DN-SEC250K GPRS Subnet/Device ID Set the GPRS Subnet/Device ID. When the alarm occurs, it will trigger the GPRS module to send out the corresponding messages to some cellphones. Mode Up to 13 alarm modes can be set. All these 13 kinds of alarm modes are independent, it will trigger the GPRS module to send out messages during different time period for each mode.
-
Page 15: Arming Settings
User Manual SB-DN-SEC250K 5.4 Arming Settings Area No. Select one area, area No. is from 1 to 8. Trigger when leaving If enable the selection, it will trigger the targets when arming button is pressed; if do not enable the selection, it will trigger the targets after the Exit Delay time. Arming Modes There are 6 arming modes can be set respectively, they are: VACATION ARM 、... -
Page 16: Alarm Commands
User Manual SB-DN-SEC250K 5.5 Alarm Commands It's mainly for setting the alarm targets for different alarm modes(exceed Entry Delay). Fire, gas, etc alarm have no delay, will come into effect immediately. Each mode can control up to 32 targets. 5.6 Vacation Settings It's mainly for setting some targets in the vacation mode, so it could simulate scenarios, such as turn on/off lights by timer function in the house to give the illegal invaders a warning that somebody is at home. -
Page 17: Bypass Settings
User Manual SB-DN-SEC250K When reach the end time point, it will trigger the ‘OFF’ window’s targets, e.g. turn off lights in the morning. 5.7 Bypass Settings 5.7.1 Alarm + Bypass Authorize the sensor here(need to set the security module’s ID in the sensor also), when the status of it has changed under arming mode, it will send out commands to the security module, then the security module will trigger corresponding targets to protect the system. -
Page 18: Advanced Security
User Manual SB-DN-SEC250K 5.8 Advanced Security line of Defence Activate after Alarm(M) Set the delay time for the 9 line defence, after the delay time when normal alarm, it will trigger these 9 targets which can be set in the right side window. The time unit is minute. Can enable this 9 line defence for these normal alarm: Vacation, Night, Away, Day. -
Page 19: Arm Flow
User Manual SB-DN-SEC250K 5.9Arm Flow Advanced Security Controller – User Manual... -
Page 20: Vacation/Away Mode
User Manual SB-DN-SEC250K 5.9.1 Vacation/Away Mode Advanced Security Controller – User Manual... -
Page 21: Day/Night/Night_Guest) Mode
User Manual SB-DN-SEC250K 5.9.2 Day/Night/Night_Guest) Mode Advanced Security Controller – User Manual... -
Page 22: Alarm Flow
User Manual SB-DN-SEC250K 5.10Alarm Flow 5.10.1General flow Advanced Security Controller – User Manual... -
Page 23: Vacation/Away/Night For Guest/Day Mode
User Manual SB-DN-SEC250K 5.10.2 Vacation/Away/Night for Guest/Day Mode Advanced Security Controller – User Manual... -
Page 24: Night Mode
User Manual SB-DN-SEC250K 5.10.3Night Mode Advanced Security Controller – User Manual... -
Page 25: Fire Mode
User Manual SB-DN-SEC250K 5.10.4 Fire Mode Advanced Security Controller – User Manual... -
Page 26: Gas Leakage
User Manual SB-DN-SEC250K 5.10.5 Gas leakage Advanced Security Controller – User Manual... -
Page 27: Silent Panic
User Manual SB-DN-SEC250K 5.10.6 Silent panic Advanced Security Controller – User Manual... -
Page 28: Power/Temp/ Emergency/ Current
User Manual SB-DN-SEC250K 5.10.7POWER/TEMP/ Emergency/ Current Advanced Security Controller – User Manual... -
Page 29: Panic
User Manual SB-DN-SEC250K 5.10.8 Panic Advanced Security Controller – User Manual... -
Page 30: Disarm
Authorize the HDL-MPL8.48 to arm and disarm the system in Arming Settings window of in Bypass Settings page, Subnet/Device ID is 1/8. b) Go to HDL-MPL8.48 panel, configure button 1 to arm for vacation mode, key mode is ‘single on’, Subnet/Device ID is 1/3, key type is ‘security module’, parameter1(area No.) is 1, and parameter2 is ‘vacation’. -
Page 31: Sensor Settings
User Manual SB-DN-SEC250K c) Configure button 2 to disarm, parameter2 is ‘disarm’, other settings are same as button 1. 6.2 Sensor Settings a) Go to 8in1’s Security Function page, enable the security function of dry contact 1, dry contact 2 and IR sensor. Input the security module’s ID, here is 1/3, and select area 1. b) Go to security module’s Bypass Settings page, enable the alarm for index 1/2/3, input the 8in1 sensor’s ID, here is 1/77, and channel 1/2/3(the index No. - Page 32 ‘Vacation’, enable ‘entry delay times’, select ‘2X’(suppose this door is far away from the HDL-MPL8.48, and it takes more time to disarm when enter from this door, then can select its entry delay time is two/four times of Entry Delay), then save.
- Page 33 Turn off channel 1 of relay(Subnet/Device ID is 1/5) and AC which is controlled by HDL-MPL8.48(Subnet/Device ID is 1/8) in ‘EXIT BUZZER ON’ window (user can set any targets they need, then when press arm button, it will trigger these targets)
- Page 34 User Manual SB-DN-SEC250K c) Trigger the Z-Audio (create a folder and name it ‘special’ in SD card, put some voice files (.mp3 and sort them with a header ‘001xx’, ‘002x’, ‘003xx’S)) to play a voice hint from the ‘VACATION ARM’ window, need to set three commands here(Check the universal switch list of Z-Audio): 1- send universal switch 208, ON( Select Audio source –...
- Page 35 User Manual SB-DN-SEC250K 2. The room lights will turn on at 6:00, and turn off at 7:00 in the morning, and turn on at 20:00, turn off at 23:00 in the evening. a) Enable index 1, set the ‘Start Time’ is 6:00, and the ‘End Time’ is 7:00. b) Select ‘ON’...
- Page 36 User Manual SB-DN-SEC250K time reaches 7:00, it will turn off it. d) Enable index 2, set the ‘Start Time’ is 20:00, and the ‘End Time’ is 23:00, follow above settings to turn on lights at 20:00, turn off at 23:00 in the evening. 3.
- Page 37 4. The house owner go to the HDL-MPL8.48 to press the disarm button within 20s (Entry Delay), then security module will work under the non-monitoring mode. Better to set password for this arm/disarm page, then only the owner can access it to control.
- Page 38 User Manual SB-DN-SEC250K d) After the Siren Delay, here it’s 15s, if still not disarm, it will trigger the targets in ‘INDOOR SIREN ON’ and ‘OUTDOOR SIREN ON’. After 5 minutes, it will restart into the monitoring state, if there are more triggers, it will trigger the buzzer, siren, alarm and so on then realize that monitor and alarm circularly.
-
Page 39: Note
User Manual SB-DN-SEC250K 7. Note SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS. SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS Advanced Security Controller – User Manual...
