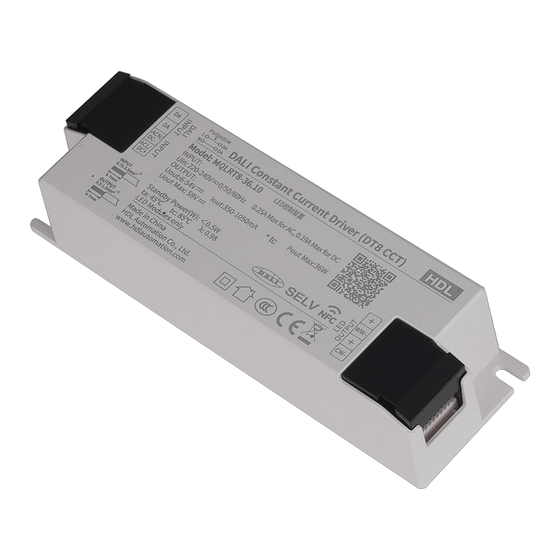

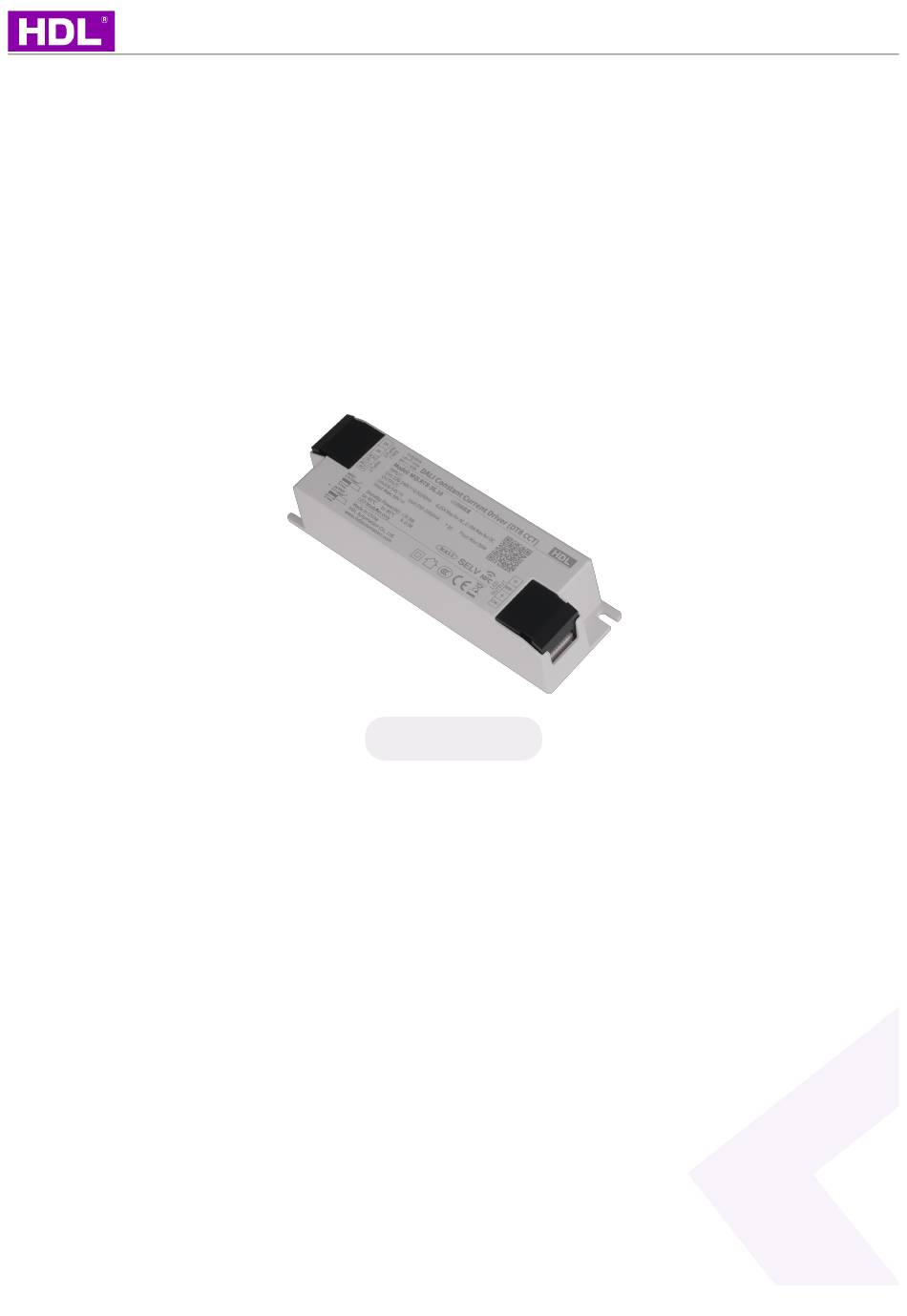

- Page 1 DALI Constant Current Driver (DT8 CCT) Instruction Manual MQLRT8-36.10 Before using this product, please read this manual carefully and keep it properly！ Document Version：C...
- Page 2 ◇◆ Overview DALI Constant Current Driver(DT8 CCT) (Model: MQLRT8-36.10 hereinafter referred to as "the product" or "the device") is a DT8 color temperature, voltage 6-54V, current 350-1050mA, maximum output power 36W DALI-2 drive. Note: The pictures and illustrations provided in this instruction manual are for reference purposes only, and the actual product may differ.
-
Page 3: Technical Data
Figure 1 ◇◆ Technical Data LED Channel DC Voltage 6-54V 350-1050mA via NFC tool; Min.current gear lower to 0.1mA, Output Current default 800mA Current Accuracy +3%(±1%@Certain full load) @ full load Rated Power Max.36W Voltage Range 220-240VAC/220-240VDC Absolute Voltage Range 196-264VAC/196-264VDC Frequency Range 0/50/60Hz... -
Page 4: Specifications
Over Temperature Yes, remove the fault conditions and re-power the device. Working Temp. -25℃ ~ +45℃ Max. Case Temp. Tc=85℃ Environment Working Humidity 10% ~ 95% RH non-condensing Storage Temp. -40℃ ~ +80℃, 10% ~ 95% RH non-condensing & Humidity Safety Standards EN61347-1, EN61347-2-13 Withstand Voltage... -
Page 5: Safety Precaution
The device can be placed on a flat surface or mounted with screws. HDL will not be responsible for any consequence caused by the inexpert or faulty installation and wiring methods, which are not in accordance with the instructions contained in this datasheet. - Page 6 all voltage sources. This precautionary measure is necessary in order to prevent electric leakage and the risk of electric shock. Physical connection cables: special cables for electricians. For DALI connection, a hand-in-hand connection is recommended. After all of the cables are terminated, check for correct and good terminations. There are no polar requirements for DALI.
-
Page 7: Installation
2) Press and hold down the button to increase or decrease light intensity to desired level and release it, then repeat the operation to adjust light intensity to opposite direction. The dimming range is from 1% to 100%. 3) Double click the button to switch between brightness mode and color temperature mode. 4) Press and hold down the button to change color temperature under color temperature mode. -
Page 8: Copyright Statement
Note: After unpacking, please check if the product and the parts are complete. ◇◆ Copyright Statement HDL has all the intellectual property rights to this document and contents thereof. Reproduction or distribution for third parties are prohibited without written authorization from HDL. Any infringement of HDL’s intellectual property rights will be investigated the legal liability.
