- Page 1 User Manual Manual describes the snapshots taken in the previous version of the module and using older Air-condition controller HBST program. In HBST2, the graphic appearance is slightly different but the functions remain the same. SB-DN-HVAC (MAC01.331) www.hdlautomation.com...
-
Page 2: Table Of Contents
User Manual SB-DN-MAC01.331 INDEX Overview ............................1 Main functions ..........................1 Basic parameters ..........................1 specifications ..........................2 4.1 Dimension and specifications ………………………………………………………………………………………….2 4.2 Safety ………………………………………………………………………………………………………………………………3 5. Wiring………………………………………………………………………………………………………………………………….3 5.2 wiring diagram……………………………………………………………………………………………………………….3 5.2 connector information……………………………………………………………………………………………………4 6. Operation…………………………………………………………………………………………………………………………….4 6.1 commissioning……………………………………………………….……………………………………………………4 6.2 software configuration ..................5 6.2.1 Basic settings…………………………………………………………………………………………………………..5 6.2.2 Settings ……………………………………………………………………………………………………………….….5 6.2.2.1 Test the wiring ………………………………………………………………………………………………….6... -
Page 3: Overview

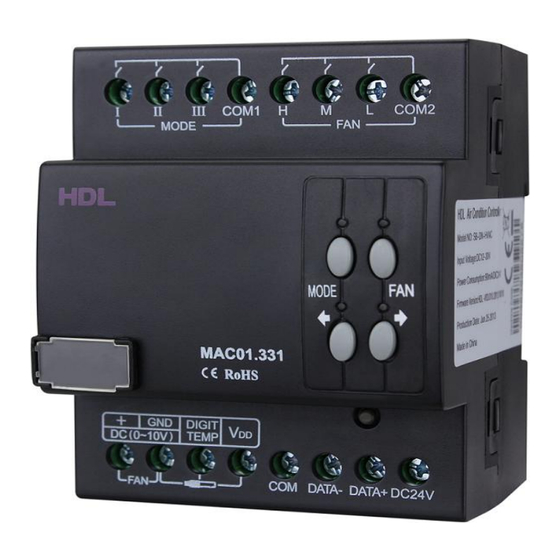

Overview SB-DN-HVAC (MAC01.31) module designed to control centralized HVAC or FCU, through HDL control panel with air-conditioning function, depending on the preset and current temperature and with the built-in algorithm, it can smartly control the mode and fan speed. Main functions It has three relays to control modes ( cooling, heating and dehumidification) ... -
Page 4: Specifications
LED indicator or programming button。 e) DC0-10 relay for extra fan control method, digital temperature sensor f) F,G,H,I and J are HDL interface 4.2: Safety HVAC systems draw large amounts of electricity when in use, which means that improper... -
Page 5: Wiring
User Manual SB-DN-MAC01.331 installation can result in a risk of electrical fires, shocks and short circuits. Some states have specific building codes that govern HVAC systems, including their wiring. Electrical codes also apply to HVAC wiring and require electricians and builders to use wires and devices that are compliant and safe. -
Page 6: Operation
“online device list” 6.2: software configurations Normally we need to use a HDL panel with air-conditioning function to control this module, which means in this manual both the configuration of HDL HVAC module and DLP air-condition function will be covered. -
Page 7: Settings
6.2.1.1: Change the address (Subnet / Device ID) Each HDL-device has subnet and Device ID and each module’s Device ID must be unique and different from other devices on the same Bus, the subnet ID should be the same as the HDL-Bus gateway (typically the SB-DN-1IPorHDL-MBUS01IP.431). -
Page 8: Test The Wiring
User Manual SB-DN-MAC01.331 6.2.2.1 Test the wiring The wiring test ensures that every relay has been wired correctly and that the system can operate safely, so before programming an end-user panel, the relay wiring can be tested here. Steps: To test the wiring of this module: a) On the “setting”... - Page 9 User Manual SB-DN-MAC01.331 6.2.2.3.1 Ac model configuration types There two different modes for the AC model settings regarding the wiring diagram:- a) Normal Mode: this mode is the default mode and its correspondent to this module’s default wiring diagram, below is the normal wiring for this module:- Default wiring: Relay-1=Cooling, Relay-2=Heating, Relay-3=Dehumidification.
-
Page 10: Vav Fan Voltage Settings
User Manual SB-DN-MAC01.331 time“ Compressor work If this feature is selected the AC will stop working after period of time” “ compressor protect time “for protection and will restart for specified period of time working again after that period. For example: if we set the compressor time as 120minutes and... - Page 11 HDL and there are two ways to broadcast the temperature a) Refer to Inside sensor: this module will receive the temperature locally from HDL-digital temperature sensors ( DS18B20) which are connected to this module, this the indoor temperature b) Refer to outside sensor:...
-
Page 12: Host Settings
User Manual SB-DN-MAC01.331 that the temperature will be broadcasted from. 6.2.3.3: Host settings As we mentioned above one master HVAC module can host and control about 8 slave modules, so all of those slave modules will get the modes and fan speed settings through the master module. -
Page 13: 4: Configuration On Dlp
User Manual SB-DN-MAC01.331 6.2.3.4.2: air-condition control information This section allows you to enable/disable some of the function depending on your needs, just uncheck any function that you want to eliminate and save. 6.2.4: configuration on DLP On the DLP, the first thing that we have to do is to make sure that the air-conditioning page has been activated. -
Page 14: Slave Information
User Manual SB-DN-MAC01.331 a) First enable the air-condition function by ticking on “enable” b) Fill in the subnet/device ID of the HVAC module c) Choose the AC type, normally choose “NEW” d) Fill in the AC 6.2.4.2: Test and control section this section allows us to test the wiring of each relay and whether it’s working fine a) Test: or not. -
Page 15: Synchronous Control
User Manual SB-DN-MAC01.331 floor, this function allows you to monitor the status of the DLP air-condition function page in the kid’s room without going to there. Steps: a) Select slave No. and tick on “Enable” b) Fill in the slave DLP panel’s subnet/device ID and save. c) Finally save the changes. - Page 16 User Manual SB-DN-MAC01.331 d) Time type: select the time format (24hours or 12hours format) and date format. e) Temp range: set a temperature for each mode f) Sensor model settings: this is the temperature sensing and broadcasting settings, there are about three options:- a) Refer to inside sensor: with this option, the temperature will be broadcasted locally from the respective HVAC module.
- Page 17 User Manual SB-DN-MAC01.331 Steps: to setup a display photo for each key a) Select AC graphics on DLP air-conditioning function tab ,it will popup the above window and switch to content page b) Choose set up option c) Double click on the white blank area to open a picture Send photo save state.
-
Page 18: Faq
SB-DN-HVAC has no built-in the control logic, the control logic is in DLP panel 7.3 MAC01.331FAQ003_HDL-BUS To control the FCU, I can use the SB-DN-HVAC or HDL-MAC01.331, but I can also use IR (Infrared) to control it, which one is better? - Page 19 If the fan speed had been set as “Auto”, you probably forgot to enable the option “Power-saving” in HDL-BUS Pro Setup Tool. AC controller – User Manual...
-
Page 20: Notes
User Manual SB-DN-MAC01.331 8 NOTES AC controller – User Manual...
