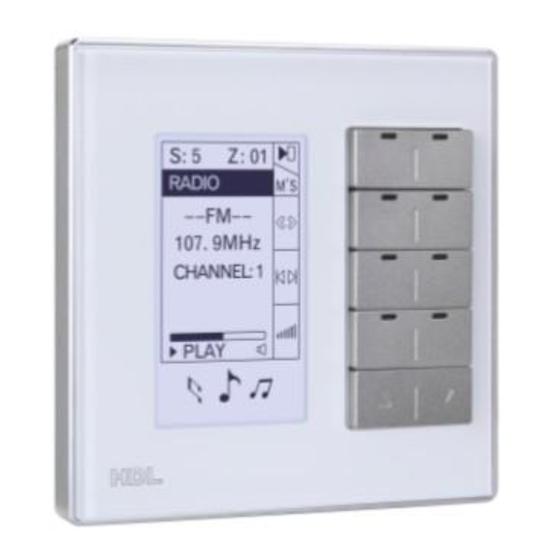

HDL M/DLP04.1-A2-48 User Manual

Lcd panel controller
Hide thumbs

Advertisement

Quick Links

Download this manual
User Manual
LCDPanelController (V1.1)
M/DLP04.1-A2-48
www.hdlautomation.com

Advertisement

loading

Related Manuals for HDL M/DLP04.1-A2-48

Summary of Contents for HDL M/DLP04.1-A2-48

  • Page 1 User Manual LCDPanelController (V1.1) M/DLP04.1-A2-48 www.hdlautomation.com...
  • Page 2 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 APPLICATION PROGRAM INFORMATION HDL- M/DLP04.1-A2-48(V1.1) Version: V1.1 KNX/EIB-BUS Document Version: 1.1, Date: Mar.2018 Guangzhou Hedong Electric Co., Ltd. (HDL) www.hdlautomation.com 2 / 88...
  • Page 3 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 A. General description B. Function overview flowchart C. Function description D. Communication objects Guangzhou Hedong Electric Co., Ltd. (HDL) www.hdlautomation.com 3 / 88...

  • Page 4: General Description

    APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 A. General description HDL KNX / EIB M/DLP04.1-A2-48 wall switch Panel controller have 3 page for lighting and curtain control, one page for floor heating, one page for HVAC control.This manual contains the programming information for this module.
  • Page 5 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 B. Function overview flowchart Start 2.1.1 Rocker A Switch controller 2.1.2 Rocker B Dimming controller 1.0 General Shutter controller 2.1.3 Rocker C Flexible controller 2.1.4 Rocker D Scene controller 2.1.5 Rocker E 1.1 General Sequence controller 2.1.6 Rocker F...

  • Page 6: Function Description

    APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 C. Function description 1.0_general 1 ETS-Parameter Range (default) Description System delay(0...255s) (0)...255s Set system delsy time. Hearbeat telegram -Disable Disable: No hearbeat telegram. -Send value“0”cyclically Send value“0”cyclically: Cycling to -Send value“1”cyclically send the hearbeat telegram “0”.
  • Page 7 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 LED ON via EIB -Enable the buttons can’t changed by other KNX/EIB devices. Enable: Other devices on the bus can send telegram to change the LED ON brightness of the buttons. Change brightness of button...
  • Page 8 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 --The operation of first time -Normal operation Normal operation: Operate press the button -The brightness of ON normally according to the setting status of the button. The brightness of ON status: The operation of first time press the button the brightness of ON status.
  • Page 9 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 buttons is triggered via EIB -Yes the first include A,B,C,D buttons. This parameter is set can or can’t trigger these buttons via EIB. --Enable rocker E...H buttons This is the second page. is triggered via EIB -Yes This parameter is set can or can’t...
  • Page 10 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 ETS-Parameter Range (default) Description =>Temperature show mode Temperature show mode -Degrees Celsius Set temperature show mode: -Degrees Fahrenheit Celsius(C) Fahrenheit(F) =>Local temperature The local temperature -5C...(0C)...+5C DLP panel embedded with a correction(-5C...+5C) temperature sensor, sometimes has deviation, you can correction it by set the parameter.
  • Page 11 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 2.0_Functions =>Functions page ETS-Parameter Range (default) Description Enable:“Rocker A...D page” -Disable Enable or disable display “Rocker -Enable A...D page”. Enable:“Rocker A...D page” -Disable Enable or disable display “Rocker -Enable E...H page”. Enable:“Rocker A...D page”...
  • Page 12 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 2.1_Rocker (A...L) _Independent button mode ETS-Parameter Range (default) Description Rocker A work mode -Independent button Independent button mode: Rocker mode A divided into left button and right -Combined button mode button, The left button and the right button are independent.
  • Page 13 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 -Percentage controller -Threshold controller -String(14bytes)controller -Alternate controller -Combination controller ->Reaction on left short -Invalid Invalid: Left short button is no button -Toggle reaction. Toggle: Left short button is toggle. -OFF ON: Left short button is on.
  • Page 14 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Mutually exclusive display: The LED status root in mutually exclusive display. --LED status -Flashing, then ON Set the status of LED. -Flashing, then OFF Flashing, then ON: When pressing -Flashing, then status the button LED will flashing, then -ON/OFF status theLED remain ON.
  • Page 15 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 -Yes operation right button. Yes: If you select yes, will appears some parameter as follows. Long button time after 0.2...(1)...60s Set long button time,the default time is 1s. LED status source -Local Local: The LED status root in local.
  • Page 16 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 _Left button ->Reaction on leftt short -Invalid Invalid: Left short button is no button -Toggle reaction. Toggle: Left short button is toggle. -OFF ON: Left short button is on. OF: Left short button is off.
  • Page 17 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Dim->Brighter/Darker: Long press left button to increase light brightness, then long press left button again to decrease light brightness. --Delay for switch ON of (0)...255s Set the delay time for switch ON left short button(0...255s) of left short button delay operation.
  • Page 18 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 brightness. --Delay for switch ON of (0)...255s Set the delay time for switch ON right short button(0...255s) of right short button delay operation. The delay time range is 0-255s. --Delay for switch OFF of (0)...255s...
  • Page 19 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 -Stepping->Decrease/ Stepping->Increase/Stop: Short Stop press left button to increase/ stop. -Stepping->Toggle/Stop Stepping->Decrease/Stop: Short -Moving->Up press left button to Decrease/ -Moving->Down Stop. -Moving->Toggle Stepping->Toggle/Stop: Short press left button to toggle/stop. Moving->Up: Short press left button to up.
  • Page 20 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Long button time after 0.2...(1)...60s Set long button time,the default time is 1s. _Right button ->Reaction on right short -Invalid Invalid: Short press right button is button -Stepping->Increase/ no reaction. Stop Stepping->Increase/Stop: Short -Stepping->Decrease/...
  • Page 21 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Press: Move->Down Release: Stop: Long press right button to move down, Release to stop. Press: Move->Toggle Release: Stop: Long press right button to move toggle, Release to stop. Long button time after 0.2...(1)...60s Set long button time,the default time is 1s.
  • Page 22 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Press and release left button are all off. Press= “ON”, Release= “OFF”： Press left button is on, release is off. Press= “OFF”, Release= “ON”： Press left button is off, release is _Right button...
  • Page 23 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 _Left button Call scene number of the Scene NO.01...64 Call the scene number of left left button button, the range is 64 scene. Long button operation as -Invalid Invalid: Long button operation is -Scene dimming invalid.
  • Page 24 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 -Brighter/Darker Darker: Long press button can decrease light brightness. Brighter/Darker: Long press button, first, the light brighter, second, the light darker. --Delay operation for left (0)...255s Set the delay operation time for short button(0...255s) left short button.
  • Page 25 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 _Left button ->Reaction on left short -Invalid Invalid: Rocker A’s left short button -Toggle(Start-“1”,Stop-“0”) button is invalid. -Start with “1” Toggle(Start-“1”,Stop-“0”): Rocker -Stop with “0” A’s left short button is a toggle, telegram value “1” is start, telegram value “0”...
  • Page 26 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 is stop. Long button time after 0.2...(1)...60s Set long button time,the default time is 1s. _Right button ->Reaction on right short -Invalid Invalid: Rocker A’s right short button -Toggle(Start-“1”,Stop-“0”) button is invalid. -Start with “1”...
  • Page 27 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 _Left button ->Percentage on left short 0%(0)...[100%(255)] Set the light level of left short button button. ->Percentage on left long [0%(0)]...100%(255) Set the light level of left long button button. --Delay on left short (0)...255s...
  • Page 28 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 button(0...255s) button after press. The delay time range is 0-255S. --Delay on right long (0)...255s Set the delay time of right long button(0...255s) button after press. The delay time range is 0-255S. Long button time after 0.2...(1)...60s...
  • Page 29 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 --Delay on left short (0)...255s Set the delay time of left short button(0...255s) button after press. The delay time range is 0-255s. --Delay on left long (0)...255s Set the delay time of left long button(0...255s)
  • Page 30 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 _Left button ->String on left short Hello world! Short press left button can sends button the value to the bus. The value type is string Max. length is 14bytes. ->String on left long button...
  • Page 31 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 ->String on right short Hello world! Short press right button can sends button the value to the bus. The value type is string Max. length is 14bytes. ->String on right long Hello world!
  • Page 32 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 -2byte value --Short button value(1bit) -Toggle Enable 1bit, set the short button -(‘1’) value. - ‘0’ --Long button value(1bit) -Toggle Enable 1bit, set the long button - ‘1’ value. -(‘0’) --Short button value (0)...255...
  • Page 33 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 -1byte value -2byte value --Short button value(1bit) -Toggle Enable 1bit, set the short button -(‘1’) value. - ‘0’ --Long button value(1bit) -Toggle Enable 1bit, set the long button - ‘1’ value. -(‘0’) --Short button value (0)...255...
  • Page 34 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Left button object -Invalid This mode is that left button can type1...4 -Switch controller control several objects. If set some -Shutter controller these items, and when press short -Scene controller button that can send several -Sequence controller control telegram simultaneously.
  • Page 35 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 button that sequence start. Stop: When left button choose sequence object, if press short button that sequence stop. _Right button _Percentage controller -Percentage value 0%(0)...[100%(255)] When left button choose percentage object, you can set the chroma percentage.
  • Page 36 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 -String(14bytes) value Hello world! Short press right button can sends the value to the bus. The value type is string Max. length is 14bytes. LED status source -Local Local: The LED status root in local.
  • Page 37 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 ->Reaction on short button -Invalid Invalid: Left and right short button -Left=Toggle, are no reaction. Right=Toggle Left=Toggle, Right=Toggle: Left and -Left=ON, Right=OFF right short button are all toggle. -Left=OFF, Right=ON Left=ON, Right=OFF: Left short...
  • Page 38 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 long button(0...255s) of long button delay operation. The delay time range is 0-255S. Long button time after 0.2...(1)...60s Set long button time,the default time is 1s. _Dimming controller ->Reaction on short button -Invalid...
  • Page 39 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 -Left=Brighter, light brightness, long press right Right=Brighter button to decrease light -Left=Darker, brightness. Right=Darker -Left=Darker, Right=Brighter: Long press left button to decrease light brightness, long press right button to increase light brightness. -Left=Brighter, Right=Brighter: Long press left and right buttons are all to increase light brightness.
  • Page 40 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 ->Reaction on short button -Invalid -Invalid: Left and right short -Left=Decrease/Stop, button are no reaction. Right=Increase/Stop Left=Decrease/Stop, Right= -Left=Increase/Stop, Increase/Stop: Left short button to Right=Decrease/Stop Decrease/Stop, Right short button -Left/Right=Stepping-> to Increase/Stop. Toggle/Stop...
  • Page 41 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Left/Right=Moving-> Toggle: Long press left or right button to toggle. Press: Left=Move->UP, Right= Move->DOWN, Release=Stop: Left long button to up, right long button to down, release to stop. Press: Left=Move-> DOWN, Right =Move->UP, Release=Stop: Left long button to down, right long button to up, release to stop.
  • Page 42 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 -Dimming and Saving for dimming up/down. Scene saving: Long button to saving the scene, and the scene number is 1..64. Dimming and Saving: Dimming and saving together. Long press button for dimming up/down, Long release button for stop dimming and scene save.
  • Page 43 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 =Stop with “0” right short button are all toggle. -Left=Stop with “0”, Right Left=Start with “1”, Right =Stop =Start with “1” with “0”: Left short button -Left=Start with “1”, Right telegram value is “1”,Right short =Start with “1”...
  • Page 44 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 -From bus From bus: The LED status root in -Mutually exclusive bus control. display Mutually exclusive display: The LED status root in mutually exclusive display. LED status -Flashing, then ON Set the status of LED.
  • Page 45 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 2.2_FCU _Fan ETS-Parameter Range (default) Description FCU function selection -Fan Fan: The FCU’s work mode is fan. -Heating Heating: The FCU’s work mode is -Cooling heating. -Heating and Cooling Cooling: The FCU’s work mode is cooling.
  • Page 46 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 -2-Fan speed HVAC has 1 fan speed only. -3-Fan speed 2-Fan speed: If you select this one, HVAC has 2 fan speeds can be setting. 3-Fan speed: If you select this one, HVAC has 3 fan speeds can be setting.
  • Page 47 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Stop: Press left button, the fan is stop. Switching speed: Press left button, first, the fan speed is on, second, the fan speed is off. Invalid: Fan speed fixed button function is invalid.
  • Page 48 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 _Fan: Fan output control type -Changeover Set the fan output control type. -Step Starting characteristic of fan -Switch on at speed 1 Switch on at speed 1: Starting fan -Switch on at speed 2...
  • Page 49 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 FCU function selection -Fan Fan: The FCU’s work mode is fan. -Heating Heating: The FCU’s work mode is -Cooling heating. -Heating and Cooling Cooling: The FCU’s work mode is cooling. Heating and Cooling: The FCU’s work mode is heating and cooling.
  • Page 50 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Via EIB: The display actual temperature is depend on other devices via EIB. HVAC System -2-pipe system 2-pipe system: There is one single -4-pipe system water circuit that is filled with cooling or heating medium according to the season.
  • Page 51 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 -Press= “OFF”, Release= Press the button, the LED status is “ON” on, release is off. Press= “OFF”, Release= “ON”: Press the button, the LED status is off, release is on. =>Fixed button function...
  • Page 52 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 -Invalid select the 2-Fan speed. 3-Fan speed: Press left button, select the 3-Fan speed. Stop: Press left button, the fan is stop. Switching speed: Press left button, first, the fan speed is on, second, the fan speed is off.
  • Page 53 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Invalid: HVAC control mode fixed button function is invalid. ->HVAC control mode: right -Auto Auto: Press right button, button -Cooling automatic selection mode. -Heating Cooling: Press right button, the -Fan HVAC control mode select the -Switching HVAC control cooling mode.
  • Page 54 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Display picture of the Set yes or no display picture of the controlled device -Yes controlled device. Scrolling information (5)...255s Set the time interval of scrolling displayed time information displayed. interval(5...255s) ->Heating and Cooling output _Setpoint Hystersis temperature(0.1C)
  • Page 55 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 protection mode(0...10C) protection mode HVAC mode at power on -Last mode Last mode: The HVAC mode is set -Comfort mode to last mode at power on. -Standby mode Comfort mode: The HVAC mode is -Night mode set to comfort mode at power on.
  • Page 56 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Fan: Fan output control type -Changeover Set the fan output control type. -Step Starting characteristic of fan -Switch on at speed 1 Switch on at speed 1: Starting fan -Switch on at speed 2...
  • Page 57 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Auto fan speed 1: if 0.5C...(2C)...30C Set base the temperature temperature deviation<= deviation, the fan automatic switch to fan speed 1. Auto fan speed 2: if 0.5C...(4C)...30C Set base the temperature temperature deviation<=...
  • Page 58 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 2.3_Floor Heating ETS-Parameter Range (default) Description Set for comfort temperature 0...(21C)...99C Set the minimum comfort [MIN](0...99C) temperature. Set for comfort temperature 0...(30C)...99C Set the maximum comfort [MAX] temperature. Actual temperature(Celsius -Local sensor Local sensor: The display actual...
  • Page 59 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 read(2...255s) LED status -Flashing Flashing: Press the button, the LED -Press= “ON”, Release= status flahing. “OFF” Press= “ON”, Release= “OFF”: -Press= “OFF”, Release= Press the button, the LED status is “ON” on, release is off.
  • Page 60 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 -Night mode heating. -Away mode Day mode: Press left button, -Timer mode select the day mode for floor -Switching mode heating. -Invalid Night mode: Press left button, select the night mode for floor heating.
  • Page 61 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 actuator -Enable ouput of the relay actuator. =>Information zone Display date and time Set yes or no display date and -Yes time. Display information Set yes or no display information -Yes in information zone.
  • Page 62 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 -OFF unchange. ON: In the state of safety protection, the active operation is OFF: In the state of safety protection, the active operation is off. ->cancel protection(0...99C) 0...(25)...99C Set the temperture for cancel protection mode.
  • Page 63 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 2.4_Air-condition ETS-Parameter Range (default) Description Set for comfort temperature 0...(21C)...99C Set the minimum comfort [MIN](0...99C) temperature. Set for comfort temperature 0...(30C)...99C Set the maximum comfort [MAX] temperature. Actual temperature(Celsius -Local sensor Local sensor: The display actual...
  • Page 64 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 ->Hight speed value 0...(255) Set the hight speed value. Automatic speed -Inactive Set whether active select -Active automatic speed. Low speed -Inactive Set whether active select low -Active speed. Medium speed -Inactive Set whether active select medium -Active speed.
  • Page 65 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 =>Air-condition status The status operation after -Unchange Unchange: The status operation power on -Recovery remain unchange after the power Recovery: The status operation recovery after the power on. --Delay for status 2...(5)...255s Set the delay time for status recovery(2...255s)
  • Page 66 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Press the button, the LED status is off, release is on. =>Fixed button function Fixed button function -Disable Set disable or enable select the -Enable fixed button function. ->Fan speed: left button -Auto...
  • Page 67 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 -Switching control modes cooling mode fixed function. -Invalid Heating: Press left button, the air-condition mode select the heating mode fixed function. Dehumidification: Press left button, the air-condition mode select the dehumidification mode fixed function.
  • Page 68 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Output control the relay -Disable Set disable or enable control the actuator -Enable ouput of the relay actuator. =>Information zone Display date and time Set yes or no display date and -Yes time.
  • Page 69 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Fan output control type -Changeover Set the fan output control type. -Step Starting characteristic of fan -Switch on at speed 1 Switch on at speed 1: Starting fan -Switch on at speed 2...
  • Page 70 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 -Fast from. -Faster PWM period(1...255min) 1...(5)...255min Set the PWM period. Mininum PWM valve (0%)...100% Set the mininum PWM valve. Maxinum PWM valve 0%...(100%) Set the maxinum PWM valve. Enable purge Set yes or no purge data.
  • Page 71 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Object name Function Flags Data type General Change brightness LED ON DPT 5.001 CWTU 1 byte General Change brightness LED OFF DPT 5.001 CWTU 1 byte General Change LCD brightness DPT 5.001 CWTU 1 byte These communication objects used to change LED and LCD brightness function.
  • Page 72 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 1bit General Trigger left of Rock H DPT 1.008 CWTU 1bit General Trigger right of Rock H DPT 1.008 CWTU 1bit General Trigger left of Rock I DPT 1.008 CWTU 1bit General Trigger right of Rock I DPT 1.008...
  • Page 73 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Objects “Temperature” Object name Function Flags Data type Rocker information zone Remote temperature DPT 9.001 2 bytes This communication objects used to set remote temperature display information zone. Local temperature Temperature report DPT 9.001 2 bytes This communication objects used to set whether report the local temperature.
  • Page 74 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Rocker B left short Switching DPT 1.001 CWTU 1bit Rocker B left long Dimming DPT 3.007 CWTU 4bit Rocker B right short Switching DPT 1.001 CWTU 1bit Rocker B right long Dimming DPT 3.007...
  • Page 75 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Objects “Scene controller” Object name Function Flags Data type Rocker E left short Call scene DPT 18.001 CWTU 1 byte Rocker E left long Scene dimming DPT 3.007 CWTU 4bit Rocker E right short Call scene DPT 18.001...
  • Page 76 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Rocker G right Percentage DPT 5.001 CWTU 1 byte This communication object used for control some device, eg: Absolute dimming the brightness. Objects “Threshold controller” Object name Function Flags Data type Rocker H left Threshold(1byte) DPT 5.004...
  • Page 77 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 2 bytes Rocker J left Alternate<1> (1bit) DPT 1.001 CWTU 1bit Rocker J right Alternate<1> (1bit） DPT 1.001 CWTU 1bit Rocker J right Alternate<1> (1byte) DPT 5.004 CWTU 1 byte Rocker J right Alternate<1>...
  • Page 78 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 D.2 FCU Objects “HVAC temperature” Object name Function Flags Data type HVAC Fan Temperature from EIB DPT 9.001 2 bytes HVAC Actual Actual temperature DPT 9.001 CWTU temperature 2 bytes The temperature value can be transmited to KNX bus.HVAC or FCU on the KNX bus can receiving.
  • Page 79 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 1 byte These communication objects used for switching HVAC’s control mode. The telegram send corresponding string is valid or invalid. HVAC control mode Automatic heating/cooling DPT 1.003 CWTU mode 1bit HVAC control mode Activation of heating mode DPT 1.003...
  • Page 80 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 1bit The above communication object is used to control the fan speed in automatic mode. If a telegram with a value of ‘1’ is sent, the fan will switch on. If telegram with a value of ‘0’ is sent, the fan will switch off.
  • Page 81 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 DPT 5.010 HVAC Fan Status fan speed CWTU 1byte This communication object is used to control fan status and fan speed. If 1bit object “Status fan speed X” is enabled, telegrams will always be sent via KNX or EIB, but only after a modification has been made.
  • Page 82 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Objects “HVAC Output” Object name Function Flags Data type HVAC Output Relay-Heating DPT 1.001 1bit These communication objects used for switching HVAC output relay-heating. Telegram value “1” is valid and telegram value ‘0’ is invalid.
  • Page 83 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 D.3 Floor Heating Objects “Floor Heating” Object name Function Flags Data type Floor Heating Pipe pressure protection DPT 1.001 CWTU 1bit The communication objects used for set the pipe pressure protection. Telegram value “1” is open protection function and telegram value ‘0’...
  • Page 84 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 This communication object is used for setting the normal mode temperature, the temperature value an also be modified using this communication object. The temperature settings are stored in a non-volatile memory segment. Floor Heating Day-mode setpoint Temp DPT9.001...
  • Page 85 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 segment. Floor Heating Start/Stop heating for preset 2 DPT 1.010 CWTU 1bit This communication object is used to activate or deactivate the heating for pre-set 2, the heating status can also be modified using this communication object. The heating settings are stored in a non-volatile memory segment.
  • Page 86 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 1bit This communication object is used to trigger switching in the away mode. Telegram value: “0”: No function “1”: Day mode Floor Heating ON CMD for Timer-mode DPT 1.001 CWTU 1bit This communication object is used to trigger switching in the timer mode.
  • Page 87 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 D.4 Air-condition Objects “Air-condition” Object name Function Flags Data type Air-condition Switch ON/OFF DPT 1.001 CWTU 1bit This communication object used for control air condition. When a telegram value of ‘1’ is on, when a telegram value of ‘0’...
  • Page 88 APPLICATION PROGRAM INFORMATION–LCDPanelController (V1.1), M/DLP04.1-A2-48- Version 1.1 Air-condition Mode ON CMD for automatic DPT 1.001 CWTU 1bit Air-condition Mode ON CMD for cooling DPT 1.001 CWTU 1bit Air-condition Mode ON CMD for heating DPT 1.001 CWTU 1bit Air-condition Mode ON CMD for high DPT 1.001...
