DMS 1600
DMS 3600
Configurable Digital Video Matrix Switchers
FAX
Setup Guide
Matrix Switchers
68-1829-50 Rev. A
07 10
Advertisement
Table of Contents
Related Manuals for Extron electronics DMS 1600
Summary of Contents for Extron electronics DMS 1600
- Page 1 Inside Europe Only Inside Asia Only +81.3.3511.7656 Inside China Only +971.4.2991880 Canada Only Canada Only +31.33.453.4040 +65.6383.4400 +86.21.3760.1568 +1.714.491.1500 +1.919.863.1794 +31.33.453.4050 +65.6383.4664 +86.21.3760.1566 +1.714.491.1517 FAX +1.919.863.1797 FAX 68-1829-50 Rev. A 07 10 www.extron.com © 2010 Extron Electronics All Rights Reserved.
- Page 2 Precaucion any particular use. In no event will Extron Electronics be liable for direct, indirect, apretados por objetos que se puedan apoyar sobre ellos. Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos Leer las instrucciones •...
- Page 3 安全须知 • 中文 警告 电源 • 该 设 备 只 能 使 用 产 品 上 标 明 的 电 源 。 设 备 这个符号提示用户该设备用户手册中 必 须 使 用 有 地 线 的 供 电 系 统 供 电 。 第 三 条 线 有重要的操作和维护说明。...
-
Page 4: Table Of Contents
First-time Connection Front Panel Operations ....9 Considerations ......19 Starting the Program ....20 Creating a Tie ........9 Accessing the HTML Pages ....22 Viewing Ties Configuring for Network (and Muting Outputs) ......9 Communication ......22 Saving or Recalling a Preset ....10 Loading the Start-up Page ..23 Locking Out the Front Panel (Executive Mode) ......10 Maintenance and Modifications .25 Removing and Installing an I/O Board or Blank Panel ....25 Removing and Installing a Power Supply Module ....27 Removing and Installing a Fan ..........29 DMS 1600 and DMS 3600 • Contents... -
Page 5: Introduction
Introduction This section gives an overview of the DMS 1600 and DMS 3600 and describes their features. Topics that are covered include: • About this Guide • About the DMS 1600 and DMS 3600 About this Guide NOTES: • For more information on any subject in this guide, refer to the DMS 1600 and DMS 3600 User Guide, available on the Extron DVD or at www.extron.com. • Throughout this guide, both products are referred to as "DMS matrix switchers" unless a significant difference is noted in their features or operation. This setup guide helps you to easily and quickly set up and configure your Extron DMS 1600 and DMS 3600 switcher. Step by step instructions show you how to: • Connect the hardware •... -
Page 6: About The Dms 1600 And Dms 3600

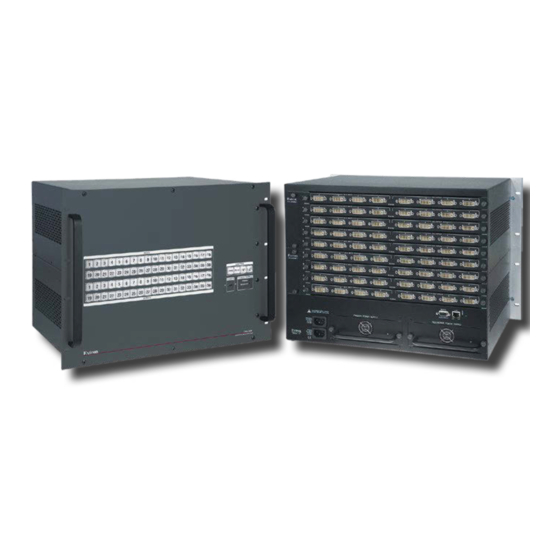

About the DMS 1600 and DMS 3600 Configurability The DMS 1600 and DMS 3600 are assembled from individual input/ The DMS 1600 and DMS 3600 (figure 1) are configurable matrix output (I/O) boards. The switcher can include up to four (DMS 1600) switchers that distribute DVI signals. I/O boards route signals that or nine (DMS 3600) I/O boards. There are three types of I/O boards are compatible with all Extron DVI video product lines. The matrix available: switcher routes any input signal to any combination of outputs. The matrix switcher can route multiple input/output configurations • 4x4 DVI input and output board simultaneously. • 4 DVI input board • 4 DVI output board By adding or removing I/O boards within certain rules that are detailed in the NOTE below, you can expand and contract the DVI-D INPUTS DVI-D OUTPUTS DMS 1600 and DMS 3600 from a 4-input by 4-output matrix to up to FAN ASSEMBLY DVI Equipped DVI-D INPUTS DVI-D OUTPUTS HDTV Monitors... -
Page 7: Installation
See figure 2. The input numbers supported by the I/O board in locations 5 through 8 are as follows: A = 5, B = 6, C = 7, D = 8. DMS 1600 and DMS 3600 • Introduction DMS 1600 and DMS 3600 • Installation... -
Page 8: Making Connections
DVI-D OUTPUTS NOTE: The factory default IP address is 192.168.254.254. DVI-D OUTPUTS Reset button — Initiates four levels of reset of the matrix switcher. DVI-D OUTPUTS For different reset levels, press and hold the button while the FAN ASSIMBLY DVI-D OUTPUTS switcher is running or while you power up the switcher. Refer to the DMS 1600 and DMS 3600 User Guide, available on the Extron DVD or at www.extron.com. Power connectors — Plug the switcher into two grounded AC sources. REMOTE NOTE: For reliability, connect the power cord from RS232/RS422 ACT LINK RESET the Redundant power connector to either an DISCONNECT BOTH POWER... -
Page 9: Front Panel
See figure 2 in the Installation section. The input numbers supported by the I/O board in location 5 through 8 are as follows: A = 5, B = 6, C = 7, D = 8.) Viewing Ties (and Muting Outputs) Press the View button. Output buttons light for outputs that have no ties established. NOTE: If an output button blinks, that output is muted. To toggle mute on and off, press and hold the output button for 2 seconds. Press an input button. The buttons for all tied outputs light. Press an output button. The buttons for the tied input and all tied outputs light. Press the View button again to exit View mode. All input and output buttons return to an unlit state. DMS 1600 and DMS 3600 • Installation DMS 1600 and DMS 3600 • Front Panel Operations... -
Page 10: Saving Or Recalling A Preset
• If the switcher is password-protected, a password The Preset and View buttons prompt appears. blink twice to indicate the mode change. Release the buttons. If necessary, enter the appropriate password. If the password is accepted, the switcher responds with Login User or Login Administrator. If the password is not accepted, the Password prompt reappears. DMS 1600 and DMS 3600 • Front Panel Operations DMS 1600 and DMS 3600 • Remote Control... -
Page 11: Establishing A Usb Port Connection
SIS command. In verbose mode 3, the Telnet socket reports changes using messages that resemble SIS command responses. Establishing a USB Port Connection A standard USB cable and the Extron DataViewer utility, version 2.0 or newer, can be used for connection to the DMS switcher Configuration port. The USB cable, available at any local electronics store, should be terminated on one end with a mini USB B male connector NOTE: Before you use the USB port for the first time, install the USB driver on your computer. The simplest way to do this is to install version 8.0 or newer of the Matrix Switchers Control Program and then run the Found New Hardware Wizard. See Installing the Program and First-time Connection Considerations. DMS 1600 and DMS 3600 • Remote Control DMS 1600 and DMS 3600 • Remote Control... -
Page 12: Command/Response Table For Sis Commands
Command/Response Table for SIS Commands Command ASCII Command Response Additional description (host to unit) (unit to host) Create ties NOTES: • Commands can be entered back-to-back in a string, with no spaces. For example: 1*1!02*02&003*003%. • The matrix switchers support 1-, 2-, and 3-digit numeric entries (1*1!, 02*02&, or 003*003%). • The ! tie command, the & tie command, and the % tie command can be used interchangeably. • The ! read tie command, & read tie command, and the % read tie command can be used interchangeably. to output Tie input • •... - Page 13 X& X& Information request •A •S In the response: shows the number of available inputs and outputs for this configuration. has no meaning for this product. X& X& X& shows the board type installed in each slot. n is the highest numbered board in your system, 4 or 9. Request part number Refer to the DMS 1600 and DMS 3600 User Guide for part numbers. X& X& X& X& Request part number and board n is the highest numbered board in your configuration system, 4 or 9 Query controller firmware version The factory-installed controller firmware Example: 1.23 version is 1.23 (sample value only). NOTE:...
-
Page 14: Installing And Starting The Control Program
USB port connection If you connect your PC to the DMS matrix switcher via the USB port, Insert the DVD into the drive. The Extron software DVD window and it is the first time you have done so, the Found New Hardware should appear automatically. Wizard appears. NOTE: If the window does not self-start, run Launch.exe from the DVD. Activate the connected USB port for your device as follows: Click the Software tab. Scroll to the Matrix Switchers program and click Install. NOTE: If you have not installed the latest Matrix Switchers Control Program, click Cancel and install the program. Reconnect the switcher to the Configuration port. Select the No, not this time radio button and click Next. The wizard installs the necessary driver to access the switcher via the Configuration (USB) port (this may take a few minutes). DMS 1600 and DMS 3600 • Remote Control DMS 1600 and DMS 3600 • Remote Control... -
Page 15: Starting The Program
USB, or IP [LAN]. NOTE: For a comm port, check the baud rate displayed in the Comm Port Selection window. If you need to change the baud rate, click the Baud button and double-click the desired baud rate. Click OK. If you selected a serial port or the USB port in step 2, the Matrix Switchers Control Program is ready for operation. DMS 1600 and DMS 3600 • Remote Control DMS 1600 and DMS 3600 • Remote Control... -
Page 16: Accessing The Html Pages
• For details on operating the switcher via HTML arp –s command. Type in the desired new IP address for the unit pages, refer to the "HTML Operation" section in the (obtained in step 1) and the MAC address of the unit (from the DMS 1600 and DMS 3600 User Guide. rear panel of the unit). For example: arp –s 10.13.197.7 00-05-A6-03-69-B0 and then press Start the Web browser program. Enter. Click in the Address field. After receiving the arp -s command, the controller changes to Enter the Matrix IP address in the Address field. the new address and starts responding to the ping requests, as described in step 5. NOTE: 192.168.254.254 is the factory-specified default value for this field. DMS 1600 and DMS 3600 • Remote Control DMS 1600 and DMS 3600 • Remote Control... -
Page 17: Maintenance And Modifications
See A Note on I/O Boards to understand the different Password field and click OK. arrangement of connectors on the I/O boards. The switcher downloads the HTML start-up page. The switcher is ready for operation via HTML remote control. Remove and replace an I/O board or blank panel as follows: NOTE: The I/O boards are hot-swappable. You do not need to power down the switcher to remove an I/O board. For an I/O board, disconnect any connected cables. Rotate the left and right knurled knobs to completely loosen the captive screws (see the figure on the next page). Gently pull on the knurled knobs to loosen the board or panel from the backplane. Slide the board or panel out of the chassis. DMS 1600 and DMS 3600 • Remote Control DMS 1600 and DMS 3600 • Maintenance and Modifications... -
Page 18: Removing And Installing A Power Supply Module
/6 0H 0- 24 IT CH Gently slide the board or blank panel into the enclosure. For an I/O board, slide the board toward the front panel until it meets resistance. Gently seat the board or panel in the backplane. Knurled Tighten the left and right knurled knobs to lock the board or Power Knobs panel in place. Use a screwdriver to tighten the knurled knobs. Gently pull on the handle to loosen the power supply from the backplane. Slide the power supply out of the chassis. Orient the power supply module to be installed with the LED to the right. Align the flanges on the power supply module with the left and right power supply guides. DMS 1600 and DMS 3600 • Maintenance and Modifications DMS 1600 and DMS 3600 • Maintenance and Modifications... -
Page 19: Removing And Installing A Fan
0- 24 /6 0H 0- 24 IT CH Align the fan module edges with the plastic guides. EI M Knurled Knobs Gently pull on the screws to loosen the fan from the backplane. Slide the fan out of the chassis. DMS 1600 and DMS 3600 • Maintenance and Modifications DMS 1600 and DMS 3600 • Maintenance and Modifications... - Page 20 DMS 1600 and DMS 3600 • Maintenance and Modifications...
