Using the Button Label Generator Software
To run the Button Label Generator program, click Start > Programs > Extron
Electronics > Button Label Generator > Button Label Generator. The

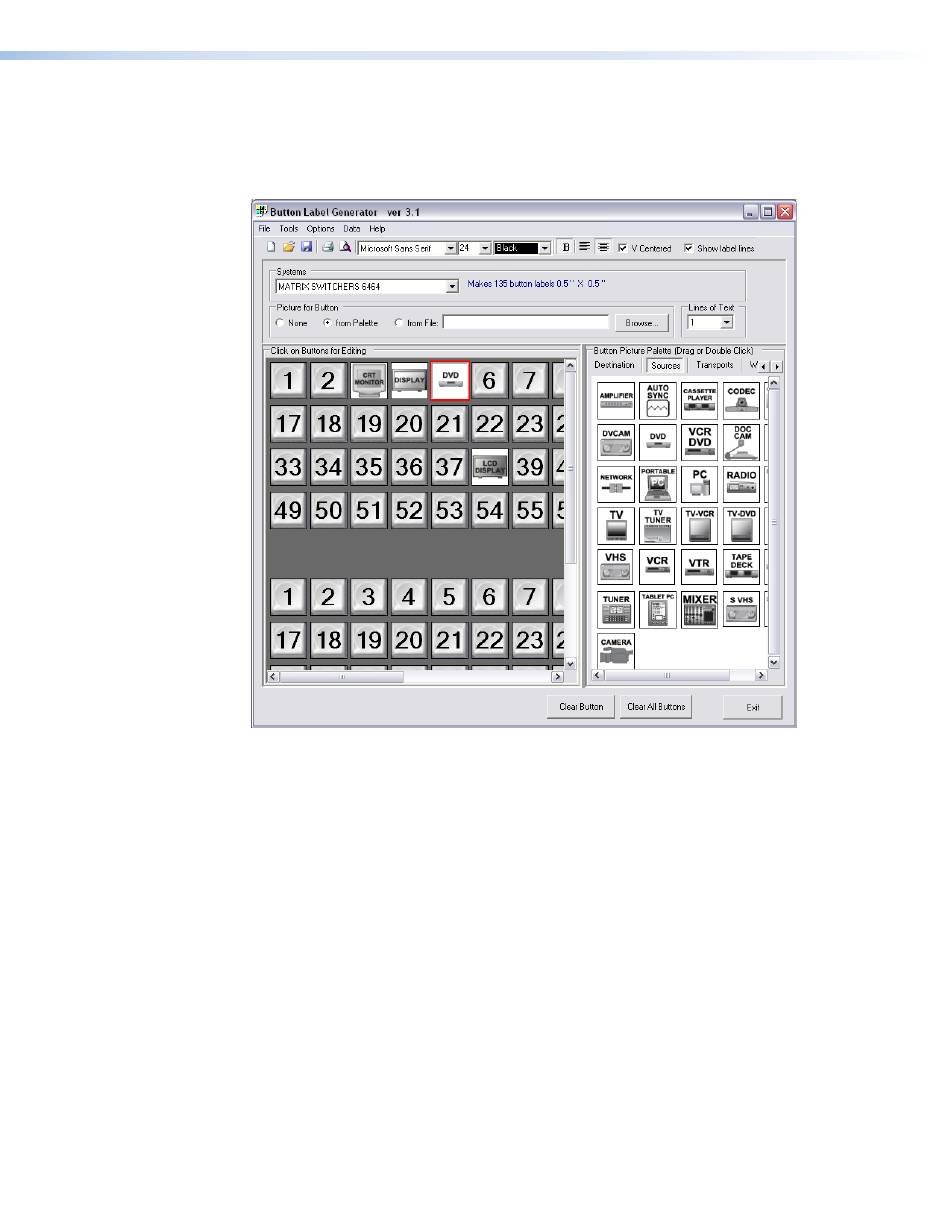

Button Label Generator window opens (see figure 55).
Figure 55.
In the Systems selection box:
•
Choose the Matrix Switchers 1616 drop-down option to match the button label
size and quantities for a DMS 1600 switcher.
Choose the Matrix Switchers 6464 drop-down option to match the button label
•
size and provide the quantities for a DMS 2000, DMS 3200, and DMS 3600 switcher.
•
Using standard Windows controls, create and print labels that can be placed in the
clear button caps on the front panel of the switcher.
•
Click Clear All Buttons and create new labels as many times as necessary to make
all of the button labels that you need.
To access the help program, click the Help menu.
Button Label Generator Window
DMS 1600, DMS 2000, DMS 3200, and DMS 3600 • Matrix Software
84
